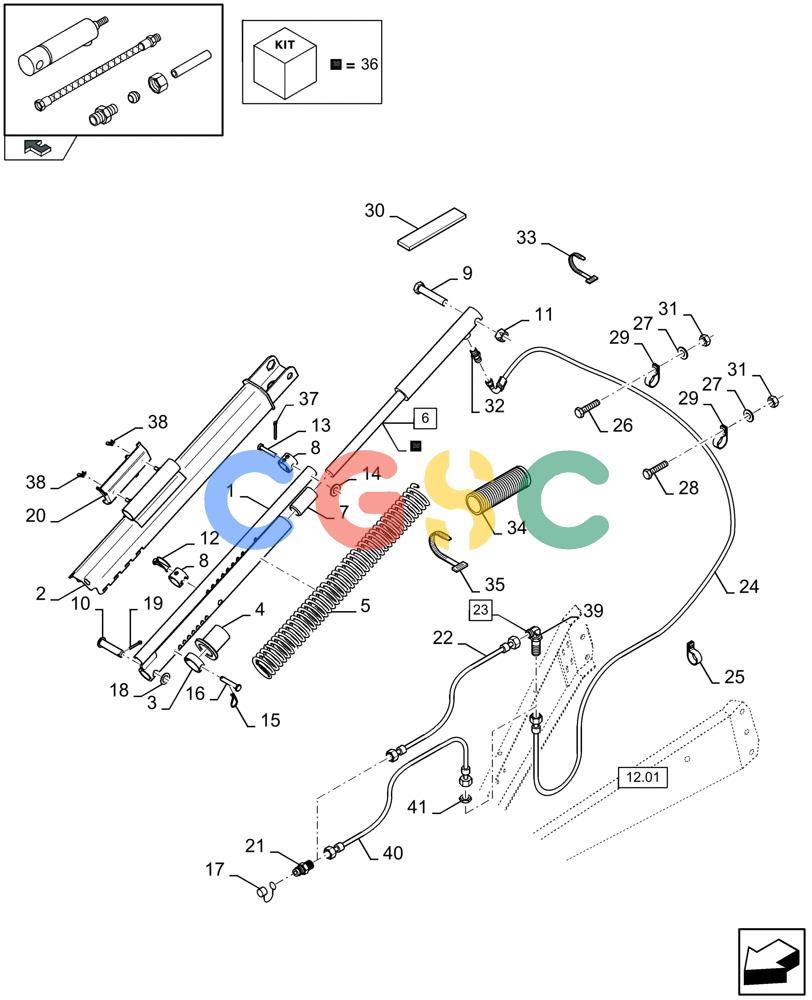

| 1. |
84817368
|
[1] |
SUPPORT
|
ZED
|
| 2. |
84817374
|
[1] |
GUIDE
|
ZED
|
| 3. |
84817381
|
[1] |
BUSHING,51.3mm ID x 60.3mm OD x 20mm L
|
ZED
|
| 4. |
84817383
|
[1] |
BUSHING
|
ZED
|
| 5. |
84801203
|
[1] |
EXPANDER
|
ZED
|
| 6. |
84818223
|
[1] |
HYDRAULIC CYLINDER,30mm Rod, 230mm Stroke
|
ZED
(36)
|
| 7. |
9837602
|
[1] |
BUSHING,31mm ID x 40mm OD x 80mm L
|
ZED
|
| 8. |
84024657
|
[2] |
BUSHING
|
PLO
|
| 9. |
395528
|
[1] |
BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8
|
NH
|
| 10. |
84021067
|
[1] |
PIN
|
ZED
|
| 11. |
380424
|
[1] |
NUT,M20 x 2.5, Cl 8
|
FOR
|
| 12. |
9838996
|
[1] |
COTTER PIN
|
NH
|
| 13. |
336793
|
[1] |
CLEVIS PIN,M10 x 55
|
ZED
Superseded by part number: 80336793
|
| 14. |
140017
|
[1] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
Superseded by part number: 9820489
|
| 15. |
84045619
|
[1] |
PIN,12mm OD x 72.5mm L
|
ZED
|
| 16. |
370539
|
[1] |
COTTER PIN,4.4mm x 52.8mm L
|
ZED
|
| 17. |
84819677
|
[1] |
CAP COVER
|
ZED
|
| 18. |
9820493
|
[1] |
WASHER,20.5mm ID x 35mm OD x 2mm Thk
|
ZED
|
| 19. |
130011
|
[1] |
COTTER PIN,M5 x 40
|
ZED
|
| 20. |
84818191
|
[1] |
SUPPORT
|
ZED
|
| 21. |
84819675
|
[1] |
PUSH-PULL COUPLING
|
ZED
|
| 22. |
84078071
|
[1] |
FLEXIBLE HOSE,6.35mm ID x 2500mm L, SAE 100R1
|
ZED
, Serial Range: -C699
|
| 23. |
84041508
|
[1] |
HYD CONNECTOR
|
ZED
(39), Serial Range: -C699
|
| 24. |
84448414
|
[1] |
FLEXIBLE HOSE,6.35mm ID x 3700mm L, SAE 100R1
|
ZED
|
| 25. |
396718
|
[2] |
STRAP
|
ZED
Superseded by part number: 529070
|
| 26. |
43128
|
[2] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 27. |
322358
|
[5] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 28. |
120038
|
[1] |
CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
|
NH
Superseded by part number: 811-8030
|
| 29. |
431351
|
[3] |
CLAMP,15mm ID, 8.5mm Bolt Hole, P Type
|
ZED
|
| 30. |
291186
|
[1] |
PROTECTION STRIP,9.9mm W
|
NH
L= 0.08 M Superseded by part number: 47560081, 47560080
|
| 31. |
9706690
|
[4] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 32. |
396162
|
[1] |
HYD CONNECTOR
|
ZED
|
| 33. |
323597
|
[1] |
CABLE TIE,165mm OAL x 9mm Thk
|
NH
CABLE STRAP Superseded by part number: 14560287
|
| 34. |
NS
|
[1] |
NOT SERVICED
|
BAS
L= 0.4 M
|
| 35. |
9837593
|
[1] |
CLAMP
|
ZED
|
| 36. |
84045272
|
[1] |
SEAL KIT
|
ZED
|
| 37. |
130004
|
[1] |
COTTER PIN,2.9mm OD x 31.4mm OAL
|
WIN
|
| 38. |
84807781
|
[2] |
WING NUT,M8
|
NH
|
| 39. |
100065
|
[1] |
JAM NUT,M14 x 1.5, Cl 8
|
ZED
Superseded by part number: 80100065
|
| 40. |
87492506
|
[1] |
FLEXIBLE HOSE,6.3mm ID x 2500mm L, SAE 100R1
|
ZED
, Start Serial: D700
|
| 41. |
87493574
|
[1] |
NUT
|
ZED
, Start Serial: D700
|
