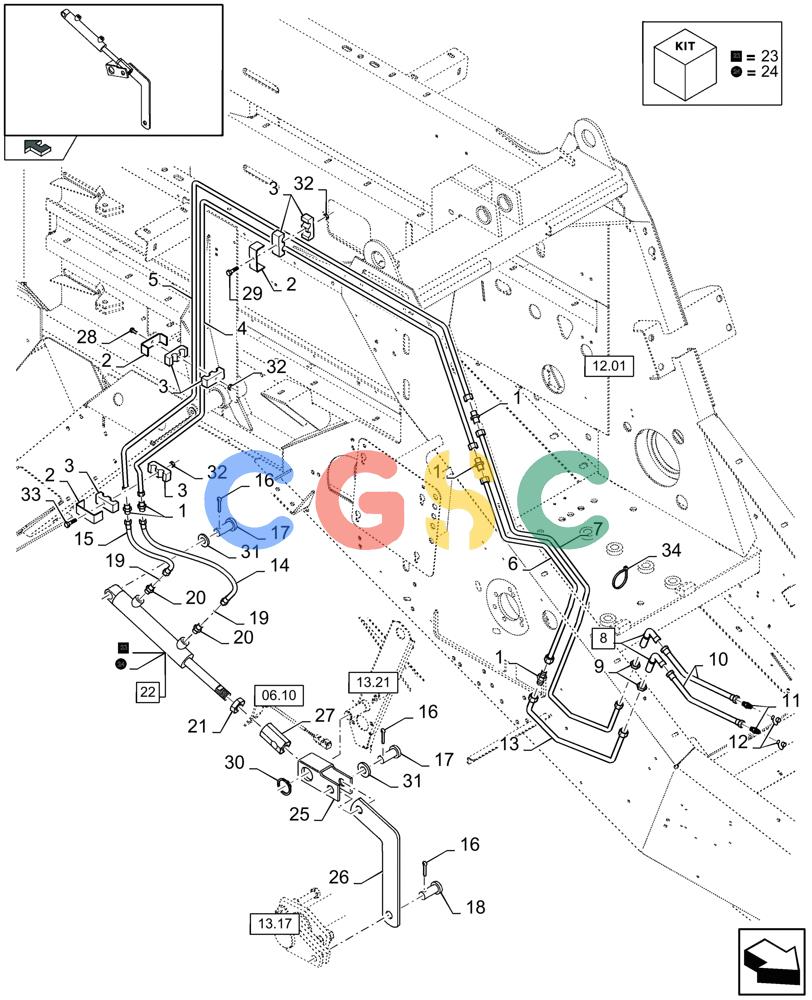

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (07.06[01]) - HYDRAULICS KNIVES CROPCUTTER - PACKER - C699 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
335172
|
[5] |
HYD CONNECTOR,M14 x 1.5 x M14 x 1.5
|
ZED
|
| 2. |
431941
|
[9] |
SUPPORT
|
DUB
|
| 3. |
430357
|
[18] |
CLAMP
|
DUB
|
| 4. |
84073518
|
[1] |
HYD TUBE
|
ZED
|
| 5. |
84073520
|
[1] |
HYD TUBE
|
ZED
|
| 6. |
84073541
|
[1] |
HYD TUBE
|
ZED
|
| 7. |
84073537
|
[1] |
HYD TUBE
|
ZED
|
| 8. |
84041508
|
[2] |
HYD CONNECTOR
|
ZED
(9)
|
| 9. |
100065
|
[1] |
JAM NUT,M14 x 1.5, Cl 8
|
ZED
Superseded by part number: 80100065
|
| 10. |
84078071
|
[2] |
FLEXIBLE HOSE,6.35mm ID x 2500mm L, SAE 100R1
|
ZED
|
| 11. |
84819675
|
[2] |
PUSH-PULL COUPLING
|
ZED
|
| 12. |
84819676
|
[2] |
PROTECTION CAP
|
ZED
|
| 13. |
84073543
|
[1] |
HYD TUBE
|
ZED
|
| 14. |
9839226
|
[1] |
HOSE
|
ZED
|
| 15. |
9839227
|
[1] |
HYDRAULIC HOSE,6.35mm ID x 345mm L
|
ZED
|
| 16. |
130003
|
[3] |
COTTER PIN,3mm OD x 30mm OAL
|
ZED
|
| 17. |
412118
|
[2] |
CLEVIS PIN,12mm OD x 65mm L
|
NH
|
| 18. |
355518
|
[1] |
PIN,M12 x 35
|
ZED
|
| 19. |
386215
|
[2] |
HYD CONNECTOR
|
ZED
|
| 20. |
365947
|
[2] |
ORIFICE
|
ZED
|
| 21. |
364164
|
[1] |
THIN NUT,Thin, M16 x 1.5, Cl 04
|
ZED
Superseded by part number: 10791411
|
| 22. |
84807314
|
[1] |
HYDRAULIC CYLINDER,Double Acting, 18mm Rod, 140mm Stroke
|
ZED
(23, 24)
|
| 23. |
427034
|
[1] |
SEAL KIT
|
ZED
|
| 24. |
84023899
|
[1] |
SEAL KIT
|
ZED
|
| 25. |
84039383
|
[1] |
SUPPORT
|
ZED
|
| 26. |
84039381
|
[1] |
BRACKET
|
ZED
|
| 27. |
84039382
|
[1] |
UNIVERSAL JOINT
|
ZED
|
| 28. |
43118
|
[2] |
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
|
NH
Superseded by part number: 120102
|
| 29. |
86508569
|
[5] |
BOLT,Hex, M6 x 70mm, Cl 8.8
|
NH
|
| 30. |
370002
|
[1] |
CIRCLIP,M25, External
|
NH
|
| 31. |
378245
|
[6] |
WASHER,13mm ID x 28.5mm OD x 2.7mm Thk
|
NH
|
| 32. |
412152
|
[8] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 33. |
412327
|
[1] |
CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8
|
NH
|
| 34. |
753213
|
[3] |
CLAMP
|
ZED
|
