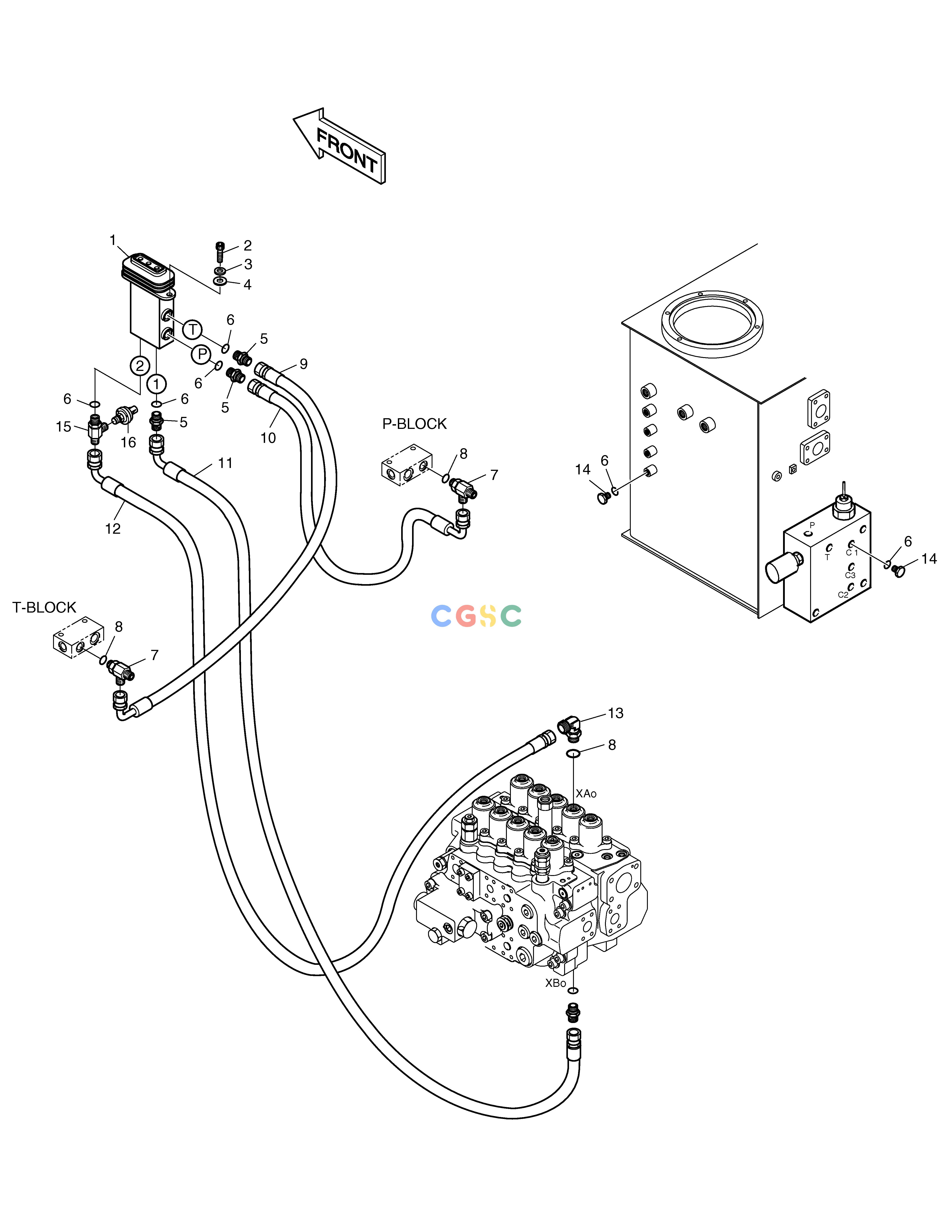

斗山零件查询PILOT PIPING-PEDAL(BREAKER) SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00430
|
[-] |
PILOT PIPING-PEDAL(BREAKER)
|
|
| 1. |
420-00160
|
[1] |
VALVE;PEDAL
|
420-00347
|
| 1. |
420-00347
|
[1] |
VALVE;PEDAL
|
|
| 10. |
2184-1046D166
|
[1] |
HOSE PF1/4-370L
|
|
| 11. |
2184-1046D194
|
[1] |
HOSE PF1/4-2800L
|
|
| 12. |
2184-1046D78
|
[1] |
HOSE PF1/4-3200L
|
|
| 13. |
2181-1702D58
|
[1] |
ELBOW PFO3/8-PF1/4
|
|
| 14. |
2181-1950D1
|
[2] |
PLUG
|
|
| 15. |
181-00507
|
[1] |
TEE
|
|
| 16. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 2. |
S2212261
|
[2] |
SOCKET-HEAD BOLT
|
S2212266
|
| 2. |
S2212266
|
[2] |
BOLT
|
|
| 3. |
S5110601
|
[2] |
WASHER;SPRING M10
|
S5110603
|
| 3. |
S5110603
|
[2] |
WASHER
|
|
| 4. |
S5010613
|
[2] |
WASHER
|
|
| 5. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 6. |
S8000111
|
[5] |
O-RING
|
|
| 7. |
2181-1951D6
|
[2] |
TEE
|
|
| 8. |
S8000141
|
[3] |
O-RING
|
|
| 9. |
2184-1046D69
|
[1] |
HOSE
|
|
