斗山零件查询REMOCON VALVE MOUNTING-3 SWITCH SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
464 次

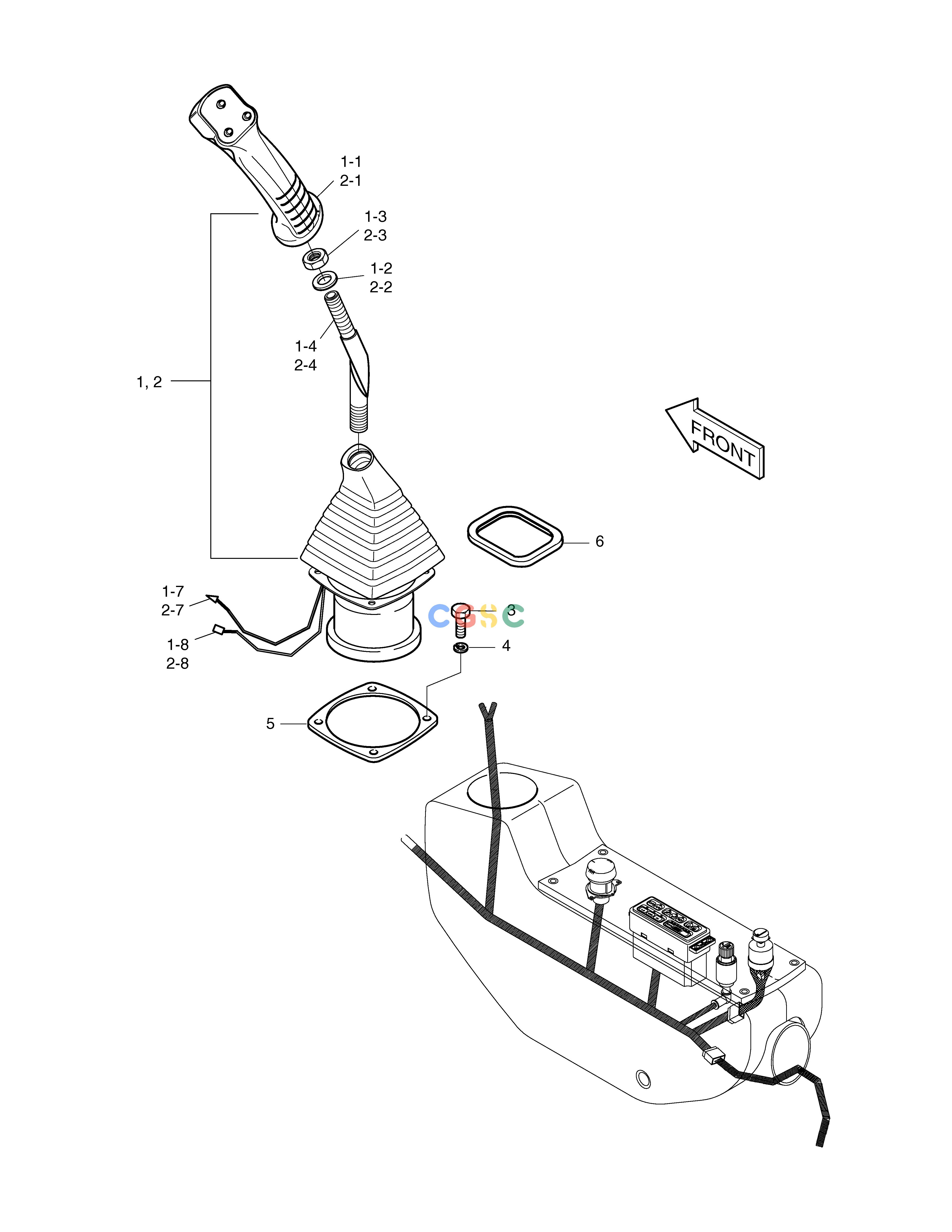

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00210
|
[-] |
REMOCON VALVE M/T ASS'Y-3 SWITCH
|
|
| 1. |
420-00198
|
[1] |
VALVE;REMOCON(L.H)
|
|
| 1-1. |
132-00012
|
[1] |
GRIP
|
|
| 1-2. |
S5010803
|
[1] |
WASHER;PLAIN
|
|
| 1-3. |
S4032833
|
[1] |
NUT
|
|
| 1-4. |
731-00002
|
[1] |
BAR;HANDLE
|
|
| 1-7. |
S800140H
|
[1] |
TERMINAL(+)
|
|
| 1-8. |
S801140H
|
[1] |
TERMINAL(-)
|
|
| 2. |
420-00199
|
[1] |
VALVE;REMOCON(R.H)
|
|
| 2-1. |
132-00012
|
[1] |
GRIP
|
|
| 2-2. |
S5010803
|
[1] |
WASHER;PLAIN
|
|
| 2-3. |
S4032833
|
[1] |
NUT
|
|
| 2-4. |
731-00002
|
[1] |
BAR;HANDLE
|
|
| 2-7. |
S800140H
|
[1] |
TERMINAL(+)
|
|
| 2-8. |
S801140H
|
[1] |
TERMINAL(-)
|
|
| 3. |
S0505053
|
[8] |
BOLT
|
|
| 4. |
S5102303
|
[8] |
. WASHER
|
|
| 5. |
116-00048
|
[2] |
PLATE
|
|
| 6. |
198-00009
|
[2] |
TRIM;RUBBER 200L
|
|
