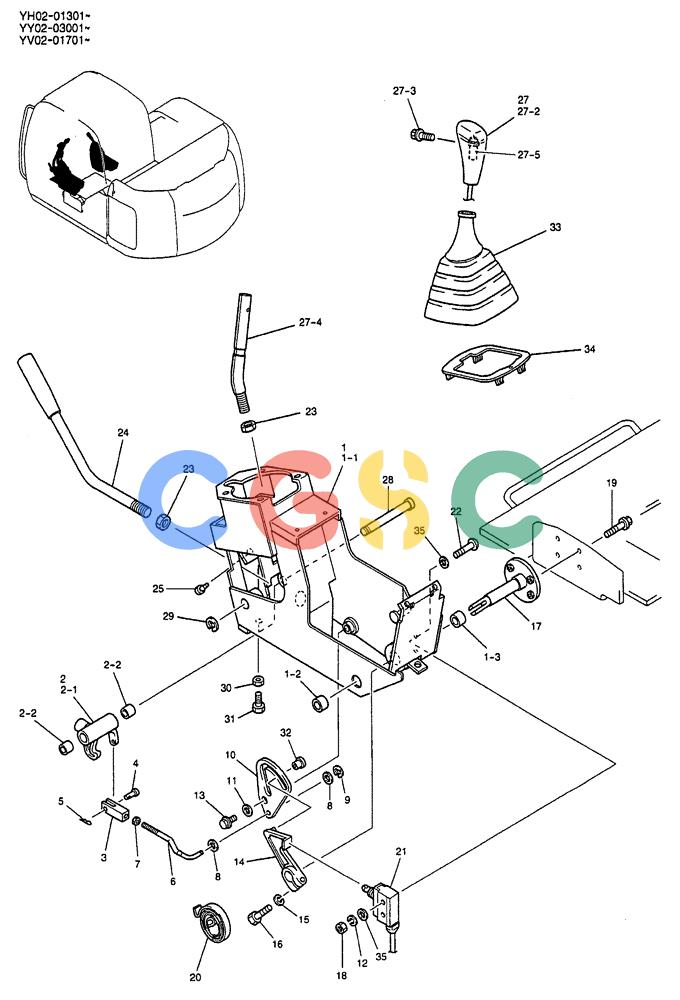

神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-021) - CONTROL BOX ASSEMBLY (FOR LEFT SIDE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
256 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY03M00013F1 | [1] | CONTROL | KOB |
| 1. | YY03M01014F1 | [1] | CONTROL | KOB |
| 1-1. | YY03M01013P1 | [1] | CONTROL | KOB Superseded by part number: YY03M01014F1 |
| 1-2. | 2405R312D1612 | [1] | BUSHING | KOBID 16 x OD 18 x 12mm Long Superseded by part number: 2405U101D1612 |
| 1-3. | 2405R312D2010 | [1] | BUSHING | KOBID 20 x OD 23 x 10mm Long |
| 2. | YT03M01105F1 | [1] | LOCK ASSY | KOB |
| 2-1. | NSS | [1] | NOT SOLD SEPARAT | CONLOCK |
| 2-2. | 2405R312D1415 | [2] | BUSHING | KOB Superseded by part number: 2405R61D5 |
| 3. | YN03M01333P1 | [1] | YOKE | KOBROD END |
| 4. | ZP45X06018 | [1] | PIN | KOBOD 06 x 18mm Long |
| 5. | 2419R9D1 | [1] | COTTER PIN | KOBOD 06mm x 21.2mm Long |
| 6. | YT03M01179P3 | [1] | ROD | KOB |
| 7. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| 8. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 9. | ZR36X00500 | [1] | SNAP RING | KOBE-Ring -- Shaft 05mm x OD 11mm Superseded by part number: 800-436 |
| 10. | YT03M01098P1 | [1] | PLATE | KOB |
| 11. | ZW16H08000 | [1] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 12. | ZW26X04000 | [2] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
| 13. | ZM12C08020 | [1] | BOLT | KOBM08x1.25x20mm (Incls. Lockwasher) |
| 14. | YT03M01067P1 | [1] | STOP | KOB |
| 15. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 16. | ZS18C10035 | [1] | SCREW,Hex, M10 x 35mm | KOB |
| 17. | YT03M01070P2 | [1] | SHAFT | KOB |
| 18. | ZN18C04003 | [2] | NUT | KOBM04x0.7mm |
| 19. | ZM22C08025 | [4] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| 20. | PH03M01017P1 | [1] | SPRING | KOB |
| 21. | YN50S01001P1 | [1] | SWITCH | KOBLIMIT (Used for Safety Lever Lock, Safety) Superseded by part number: YN50S01001P2 |
| 22. | ZS31C04030 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 30mm | KOB |
| 23. | ZN18F14011 | [2] | NUT | KOB |
| 24. | YT03M01116P1 | [1] | LEVER | KOB |
| 25. | PA03M01013P1 | [1] | RUBBER | KOB |
| 27. | YT03M01102F2 | [1] | GRIP | KOB Superseded by part number: PW03M01634F1 |
| 27-2. | YN03M01246P1 | [1] | HANDLE GRIP | KOBGRIP (HORN) Superseded by part number: YN03M01246P2 |
| 27-3. | YN03M01252P1 | [1] | SCREW | KOBSEMS-BOLT |
| 27-4. | YT03M01101P1 | [1] | LEVER | KOB |
| 27-5. | YN50E01001P1 | [1] | SWITCH ASSY | KOBHorn Superseded by part number: YN50E01001P2 |
| 28. | YT03M01075P1 | [1] | SHAFT | KOB |
| 29. | ZR36X01200 | [1] | RING | KOBE-Ring -- Shaft 12mm x OD 23mm |
| 30. | ZN18F10008 | [1] | NUT | KOBM10x1.25mm |
| 31. | PY06C01040P1 | [1] | STOP | KOB |
| 32. | YT03M01099P1 | [1] | ROLLER | KOB |
| 33. | YT03M01053P1 | [1] | BOOT | KOB |
| 34. | YT03M01051P2 | [1] | PLATE | KOB |
| 35. | ZW16K04000 | [4] | WASHER | KOBID 04 x OD 08 x Th 0.8mm |
