神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-022) - CONTROL BOX ASSEMBLY (FOR RIGHT SIDE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
543 次

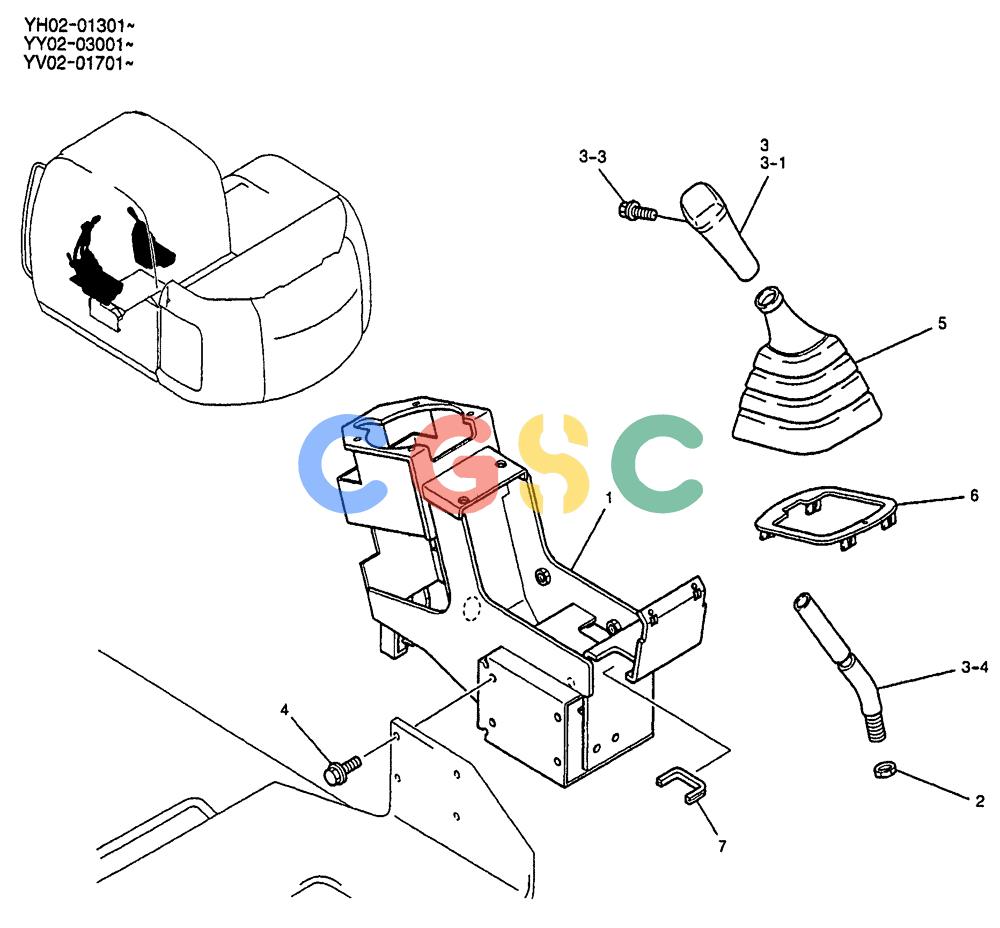

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY03M00012F1 | [1] | CONTROL | KOBCONTROL BOX ASSY |
| 1. | YY03M01015P1 | [1] | CONTROL | KOB |
| 2. | ZN18C14011 | [1] | NUT | KOBM14x2.0mm |
| 3. | YT03M01102F1 | [1] | GRIP | KOB Superseded by part number: PW03M01630F1 |
| 3-1. | YW03M01011P1 | [1] | KNOB | KOBGRIP Superseded by part number: YW03M01011P2 |
| 3-3. | YN03M01252P1 | [1] | SCREW | KOBSEMS-BOLT |
| 3-4. | YT03M01101P1 | [1] | LEVER | KOB |
| 4. | ZM22C08025 | [4] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| 5. | YT03M01052P1 | [1] | BOOT | KOB |
| 6. | YT03M01051P2 | [1] | PLATE | KOB |
| 7. | PM22C01020D5 | [1] | TRIM PANEL | KOB75mm Long (2-61/64 in) |
