神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-030) - MIRROR INSTAL P/N LC52C00002F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
571 次

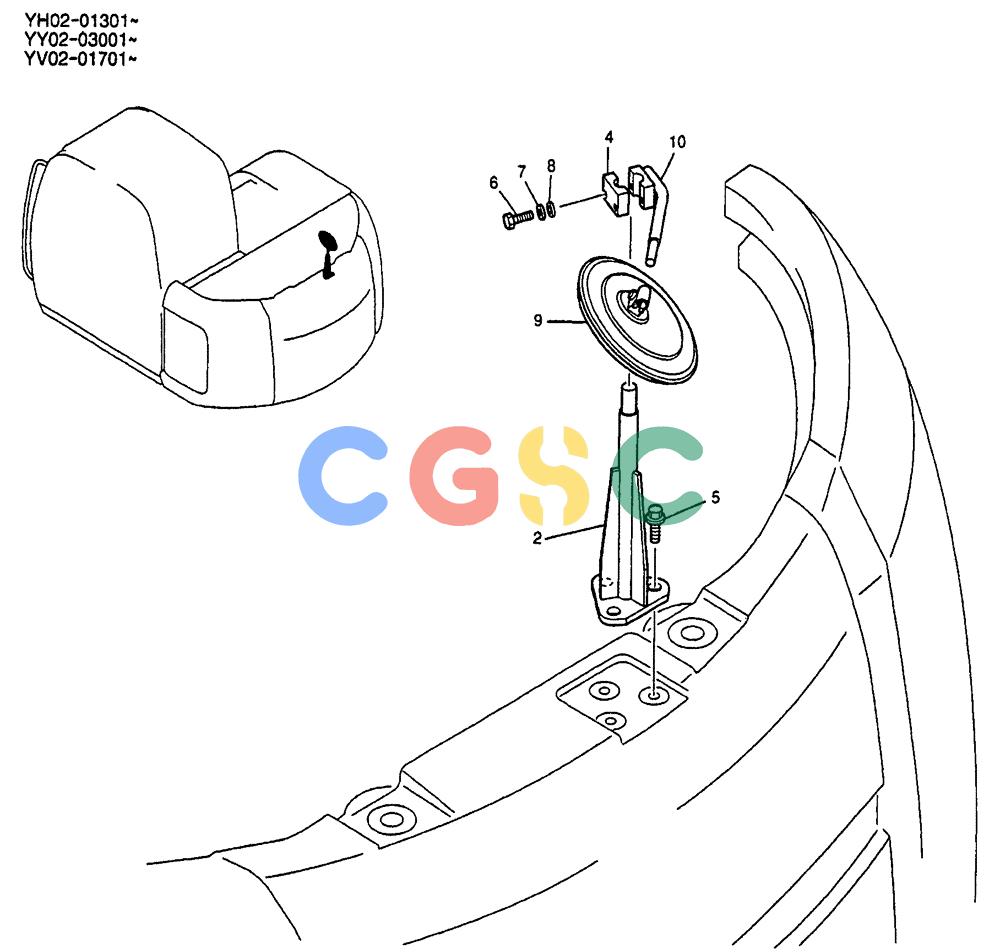

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC52C00002F2 | [1] | MIRROR | KOB |
| 2. | LC52C01001P1 | [1] | STAY | KOBSTAY |
| 4. | LC52C01003P1 | [1] | CLAMP | KOB |
| 5. | ZM32C12025 | [3] | BOLT | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) |
| 6. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 7. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 8. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 9. | YT52C00006P1 | [1] | MIRROR,210mm x 210mm | KOB |
| 10. | LC52C01004P1 | [1] | STAY | KOBSTAY |
