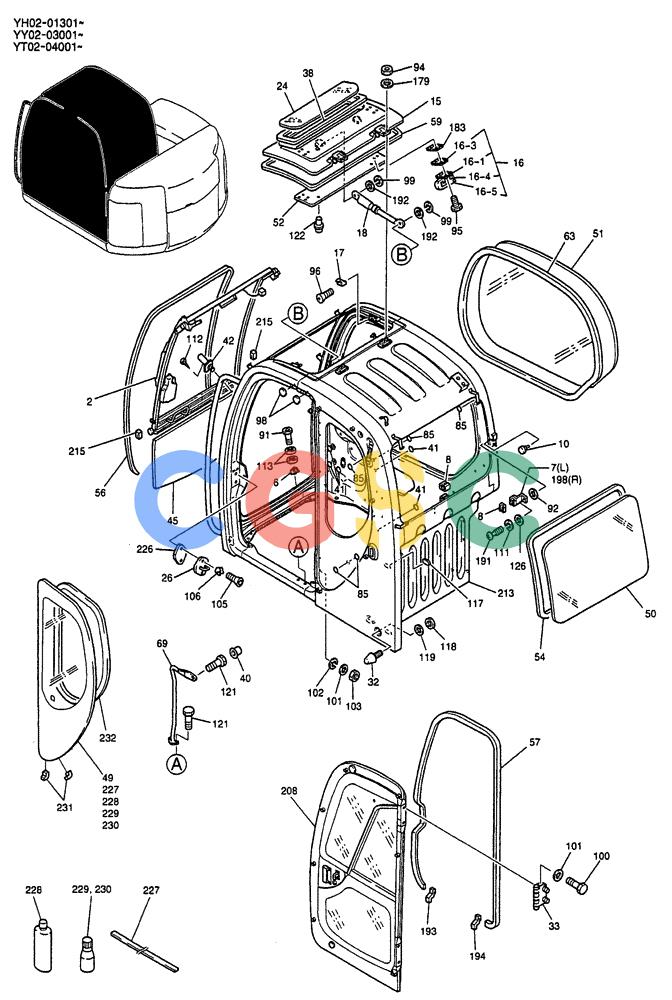

| . . | YT02C00030F9 | [1] | CAB | KOB |
| 2. | YT50C00002F1 | [1] | WINDOW | KOBSEE FIG 01-035 |
| 3. | YT02C01323P2 | [2] | STOP | KOB |
| 4. | YT02C01466P1 | [2] | STOP | KOB |
| 5. | YT02C01066P1 | [1] | STOP | KOB |
| 6. | YT02C01067P1 | [2] | RUBBER INSULATOR | KOB |
| 7. | YT02C01068P1 | [1] | HOLDER | KOB |
| 8. | YT02C01081D1 | [4] | SEAL | KOB |
| 9. | YT02C01206P1 | [2] | STOP | KOB |
| 10. | YT02C01070P1 | [2] | RUBBER SLEEVE | KOB |
| 11. | YT02C01079D1 | [1] | BRUSH | KOB |
| 12. | YT02C01138P2 | [1] | SUPPORT | KOB |
| 13. | YT02C01081D2 | [2] | SEAL | KOB |
| 14. | YT02C01082P1 | [2] | COVER | KOB |
| 15. | YT02C01062P1 | [1] | COVER ASSY | KOB |
| 16. | YT02C01232F2 | [2] | LOCK ASSY | KOB |
| 16-1. | YT02C01232S001 | [1] | BASE | KOB |
| 16-3. | YT02C01232S003 | [1] | COVER | KOB |
| 16-4. | YT02C01232S004 | [1] | SPRING | KOB |
| 16-5. | YT02C01271F1 | [1] | HANDLE | KOB |
| 17. | YT02C01084P1 | [2] | CATCH | KOB |
| 18. | YT02C01086P1 | [2] | GAS STRUT | KOB |
| 23. | ZS18C08030 | [1] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| 24. | YT02C01493P1 | [1] | GLASS | KOB |
| 25. | YT50S00004P1 | [1] | SWITCH | KOBDOOR |
| 26. | YT51C01021P1 | [1] | HOOK | KOB |
| 27. | YT02C01109F1 | [1] | CATCH | KOBDOOR Superseded by part number: YN02C04422F1 |
| 28. | YT02C01124P1 | [1] | COVER | KOB |
| 29. | YT02C01272P2 | [1] | LEVER | KOB Superseded by part number: YT02C01272P3 |
| 30. | YT02C01207P1 | [1] | SPRING | KOB |
| 31. | YT02C01276P1 | [1] | COVER | KOB |
| 32. | YT02C01114P1 | [2] | STOP | KOB |
| 33. | YT02C01226P1 | [2] | HINGE | KOB |
| 38. | YT02C01240D1 | [1] | RUBBER SLEEVE | KOB Superseded by part number: YT02C01586P1 |
| 40. | YT02C01233P1 | [1] | CAP | KOB |
| 41. | YT02C01261D1 | [12] | PLATE | KOB |
| 42. | YT54C00001P1 | [1] | WINDSHIELD WASHER | KOBWINDSHIELD WASHER |
| 43. | YT02C01126D4 | [1] | TUBE | KOB2700mm Long (106-19/64 in) Superseded by part number: YT02C01126D1 |
| 44. | YT02C01274P1 | [1] | COVER | KOB |
| 45. | YT02C01072P1 | [1] | GLASS | KOB |
| 49. | YT02C01497P1 | [1] | GLASS | KOB |
| 50. | YT02C01077P1 | [1] | GLASS | KOB |
| 51. | YT02C01461P1 | [1] | GLASS | KOB |
| 52. | YT02C01100P1 | [1] | INDICATOR | KOB Superseded by part number: YT02C01100P2 |
| 53. | YT02C01512P1 | [1] | FOAM INSULATION | KOB Superseded by part number: YT02C01512P2 |
| 54. | YT02C01115D2 | [1] | RUBBER SLEEVE | KOB Superseded by part number: YT02C01115D3 |
| 56. | YT02C01157D1 | [1] | RUBBER SLEEVE | KOB Superseded by part number: YT02C01579P2 |
| 57. | YT02C01242P1 | [1] | RUBBER | KOB |
| 59. | YT02C01118D1 | [1] | RUBBER SLEEVE | KOB Superseded by part number: YT02C01646P1 |
| 60. | YT02C01129P1 | [2] | COVER | KOB |
| 61. | YT02C01104P1 | [1] | HARNESS | KOB Superseded by part number: YT02C01104P3 |
| 63. | YT02C01464D1 | [1] | RUBBER SLEEVE | KOB |
| 64. | YT02C01216P3 | [1] | HARNESS | KOB |
| 65. | YT54S00001P1 | [1] | ANTENNA | KOB Superseded by part number: YT54S00018F1 |
| 66. | YT02C01134P1 | [1] | HOOK | KOB |
| 67. | YN01T01012F1 | [1] | HAMMER | KOB |
| 68. | YT80S00001P1 | [1] | LIGHT | KOB Superseded by part number: 2456Z322F1 |
| 69. | YT02C01260P1 | [1] | HANDLE | KOB |
| 83. | YN02C01292P1 | [4] | PLUG | KOBOD 8 x 14mm Long (Nylon) |
| 84. | YN03E01001D5 | [1] | CLIP | KOB195mm Long (7-43/64 in) -- Black |
| 85. | YT02C01261D3 | [12] | PLATE | KOB |
| 88. | ZM46C06020 | [2] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) |
| 90. | ZW16K10000 | [4] | WASHER | KOBID 10.5 x OD 18 x Th 2.0mm |
| 91. | ZS28C08012 | [2] | SCREW,Hex Socket Head, M8 x 12mm | KOBM08x1.25x12mm |
| 92. | YT02C01333P1 | [2] | WASHER | KOB |
| 93. | YT02C01164P1 | [5] | RIVET | KOB |
| 94. | YR11M01038D1 | [4] | NUT | KOB |
| 95. | 2420Z1226D5 | [8] | SCREW | KOB |
| 96. | YN17M01033D3 | [4] | SCREW | KOBM05x10mm |
| 98. | YT02C01261D2 | [2] | PLATE | KOB |
| 99. | ZR36X00600 | [4] | SNAP RING | KOBE-Ring -- Shaft 06mm x OD 12mm |
| 100. | ZS13C10025 | [4] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 101. | ZW11X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 102. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 103. | ZN13C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 105. | ZS68C08025 | [2] | SCREW,Pan, M4 x 12mm | KOBScrew -- M08x1.25x25mm |
| 106. | YT02C01229P1 | [2] | WASHER | KOBStar Lock -- ID 08.40 ± 0.30 x OD 16 x Th 0.6mm |
| 111. | 2418Z726D3 | [3] | WASHER, LOCK | KOBID 06 x OD 12.2 x Th 1.5mm Superseded by part number: ZW26X06000 |
| 112. | ZS32T40012 | [4] | SCREW | KOBM04x12mm Self-Taper |
| 113. | ZW16K08000 | [4] | WASHER,8mm ID x 15.5mm OD x 1.6mm Thk | KOBID 08 x OD 15.5 x Th 1.6mm |
| 114. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 117. | YT02C01246P1 | [2] | PLATE | KOB |
| 118. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 119. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 121. | ZM27C10025 | [3] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) |
| 122. | YT02C01324P1 | [10] | CLIP | KOB |
| 124. | ZS32T40020 | [2] | SCREW | KOBM04x20mm Self-Taper |
| 125. | ZM66C06016 | [3] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 126. | 2420T4505 | [4] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOBID 07 x OD 16 x Th 1.0mm |
| 130. | 2418T12753 | [1] | WASHER | KOBID 09 x OD 30 x Th 3.2mm |
| 131. | 2420R372D16 | [1] | GROMMET | KOB |
| 132. | YT02C01234P1 | [1] | GROMMET | KOB |
| 133. | YT02C01235P1 | [1] | GROMMET | KOB |
| 134. | 2420R372D14 | [1] | GROMMET | KOB |
| 167. | ZM22C08020 | [4] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
| 171. | ZN18F10006 | [2] | NUT | KOBM10x1.25mm |
| 179. | YR21C01161P1 | [4] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOBID 09 x OD 22 x Th 2.3mm |
| 182. | YT02C01268P1 | [2] | WASHER | KOB |
| 183. | YT02C01267P1 | [2] | SHIM | KOB |
| 184. | YT02C01275P1 | [1] | LABEL | KOB |
| 185. | ZS31C05010 | [2] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 186. | YT02C01280P1 | [1] | SPACER | KOB |
| 189. | YT02C01513P1 | [1] | HARNESS | KOB |
| 191. | 2420Z1227D8 | [2] | SCREW | KOBM06x1.0x12mm |
| 192. | YT02C01390P1 | [4] | WASHER,9mm ID x 20mm OD x 0.8mm Thk | KOBID 09 x OD 20 x Th 0.8mm |
| 193. | YT02C01319P1 | [1] | RUBBER | KOB |
| 194. | YT02C01320P1 | [1] | RUBBER | KOB |
| 195. | YT02C01330F1 | [1] | STOP | KOB |
| 195-1. | YT02C01304P1 | [1] | STOP | KOB Superseded by part number: YN02C02963P1 |
| 195-2. | YT02C01306P1 | [1] | RUBBER | KOB |
| 195-3. | YT50E00003P1 | [1] | SWITCH | KOB |
| 195-4. | YT02C01307P1 | [1] | PLATE | KOB |
| 196. | YN03M01159P1 | [1] | GROMMET | KOB |
| 198. | YT02C01334P1 | [1] | HOLDER | KOB |
| 208. | YT51C00003F2 | [1] | DOOR ASSY. | KOBSEE FIG 01-036 Superseded by part number: YT51C00003F2%K1 |
| 210. | ZS31C05016 | [2] | BOLT,Phillips Drive, Pan HD, M5 x 16mm | KOBM05x0.8x16mm |
| 212. | ZW16K05000 | [1] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 213. | YT02C00026P2 | [1] | CAB ASSY | |
| 215. | YN02C01513P1 | [2] | SEAL | KOB |
| 226. | YT51C01077D1 | [1] | SPACER | KOB |
| 227. | YT02C01514D3 | [1] | SEAL | KOB Superseded by part number: YR02C01511D2 |
| 228. | YR01T01005P1 | [1] | ADHESIVE | KOB Superseded by part number: YN01T01067P1 |
| 229. | YR09T00002P1 | [1] | PAINT | KOB(25g) Superseded by part number: YN09T00009P1 |
| 230. | YR09T00003P1 | [1] | PAINT | KOB(25g) |
| 231. | YT02C01511P1 | [2] | SPACER | KOB |
| 232. | YT02C01515D2 | [1] | TRIM PANEL | KOB |
