神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-035) - WINDOW ASSEMBLY, FR. Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
703 次

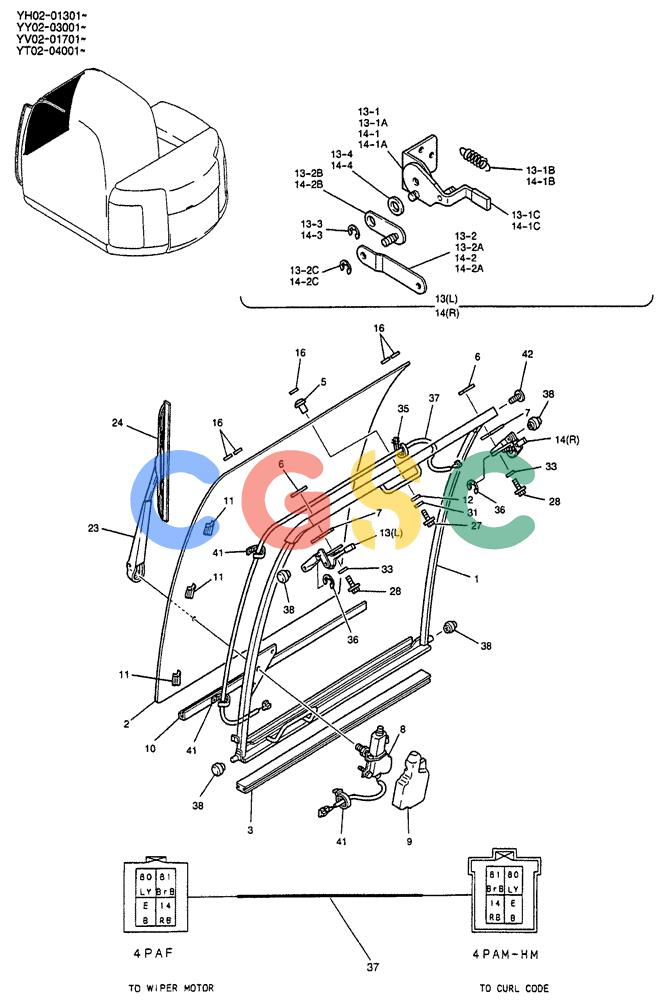

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT50C00002F1 | [1] | WINDOW | KOBFRONT |
| 1. | YT50C01002P1 | [1] | FRAME | KOB |
| 2. | YT02C01156P1 | [1] | GLASS | KOB |
| 3. | YT50C01019P1 | [1] | SEAL | KOB Superseded by part number: YT50C01111P1 |
| 5. | YT50C01020P1 | [3] | RETAINER | KOB |
| 6. | YT50C01042P1 | [2] | BLOCK | KOB |
| 7. | YT50C01043P1 | [2] | PLATE | KOB |
| 8. | YT53C00011F1 | [1] | WIPER | KOB |
| 9. | YT02C01125P1 | [1] | COVER | KOB |
| 10. | YT50C01018P1 | [1] | SEAL | KOB |
| 11. | YT50C01023P1 | [6] | RUBBER | KOB Superseded by part number: YN02C01176D3 |
| 12. | YR21C01161P1 | [3] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOBID 09 x OD 22 x Th 2.3mm |
| 13. | YT50C01086F1 | [1] | HANDLE | KOB(L. H) |
| 13-1. | YT50C01088F1 | [1] | HANDLE | KOB |
| 13-1A. | YT50C01090P1 | [1] | HANDLE | KOB |
| 13-1B. | YT50C01057P1 | [1] | SPRING | KOB |
| 13-1C. | YT50C01095P1 | [1] | CAP | KOB |
| 13-2. | YT50C01065F1 | [1] | LEVER ASSY. | KOB |
| 13-2A. | YT50C01055P1 | [1] | LEVER ASSY. | KOB Superseded by part number: YN02C01386S003 |
| 13-2B. | YT50C01056P1 | [1] | LEVER | KOB |
| 13-2C. | ZR36X00800 | [1] | SNAP RING | KOB |
| 13-3. | ZR36X00800 | [1] | SNAP RING | KOB |
| 13-4. | YT50C01059P1 | [1] | SHIM | KOB1.0 |
| 14. | YT50C01087F1 | [1] | HANDLE | KOB(R. H) |
| 14-1. | YT50C01089F1 | [1] | HANDLE | KOB |
| 14-1A. | YT50C01091P1 | [1] | HANDLE | KOB Superseded by part number: YT50C01089F1 |
| 14-1B. | YT50C01057P1 | [1] | SPRING | KOB |
| 14-1C. | YT50C01095P1 | [1] | CAP | KOB |
| 14-2. | YT50C01065F1 | [1] | LEVER ASSY. | KOB |
| 14-2A. | YT50C01055P1 | [1] | LEVER ASSY. | KOB Superseded by part number: YN02C01386S003 |
| 14-2B. | YT50C01056P1 | [1] | LEVER | KOB |
| 14-2C. | ZR36X00800 | [1] | SNAP RING | KOB |
| 14-3. | ZR36X00800 | [1] | SNAP RING | KOB |
| 14-4. | YT50C01059P1 | [1] | SHIM | KOB |
| 16. | YT50C01022P1 | [5] | SEAL,15mm ID x 30mm OD x 2mm Thk | KOB |
| 23. | YT53C00010P1 | [1] | ARM | KOBWIPER Superseded by part number: GB53C00001P1 |
| 24. | YT53C00014P1 | [1] | WIPER BLADE | KOBWIPER Superseded by part number: 73329275 |
| 27. | YT02C01241D1 | [3] | BOLT | KOBM08x1.25x12mm |
| 28. | ZM66C06016 | [6] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 31. | ZW16X14000 | [3] | WASHER | KOBID 14 x OD 28 x Th 3.2mm |
| 33. | 2420T4505 | [6] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOBID 07 x OD 16 x Th 1.0mm |
| 35. | YT22A01001P1 | [1] | STRAP | KOB |
| 36. | ZR36X00800 | [2] | SNAP RING | KOB |
| 37. | YT02C01106P1 | [1] | HARNESS | KOB |
| 38. | YT50C01024P1 | [4] | ROLLER | KOB |
| 41. | PY01P01043D2 | [8] | CABLE TIE,4.60mm W x 202mm L | KOBWire Ties -- 160mm Long Superseded by part number: YT50C01100P1 |
| 42. | YJ21C01149P1 | [2] | CLIP | KOB |
