纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (03-005-00[01]) - FUEL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
274 次

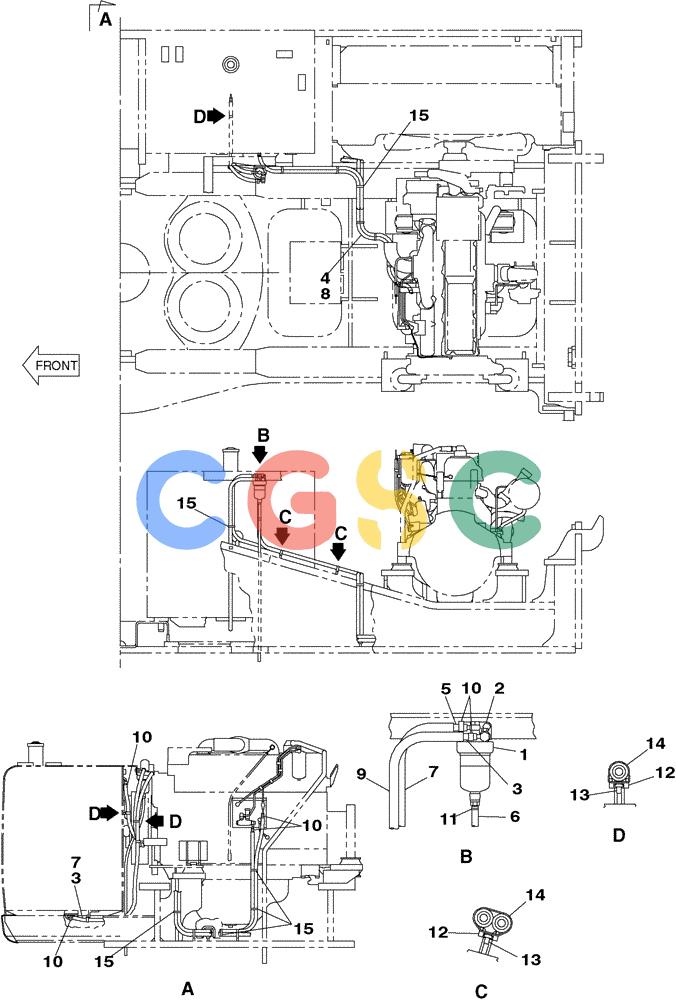

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KTH0672 | [1] | WATER TRAP | SUM |
| 2. | 166347A1 | [2] | BOLT,Sems, M10 x 30mm | SUM |
| 3. | KHH0456 | [1] | FUEL HOSE,1700.00 mm | SUM |
| 4. | KHH0459 | [1] | FUEL HOSE,3400.00 mm | SUM |
| 5. | KHH0458 | [1] | FUEL HOSE,3600.00 mm | SUM |
| 6. | 157636A1 | [1] | TUBE,9.5 mm ID, 14.5 mm OD | SUM |
| 7. | 158064A1 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21050 |
| 8. | 162635A1 | [1] | TUBE | SUM Superseded by part number: KHR21050 |
| 9. | 162933A1 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHR21050 |
| 10. | KHH0405 | [6] | MOUNTING CLIP | SUM |
| 11. | 150067A1 | [1] | MOUNTING CLIP | SUM |
| 12. | 150860A1 | [5] | COLLAR | SUM |
| 13. | 145N006S008R | [5] | SCREW,Pan Hd, M6 x 8mm, Cl 10.9 | SUM |
| 14. | 150496A1 | [5] | MOUNTING CLIP | SUM |
| 15. | 150498A1 | [6] | MOUNTING CLIP | SUM |
