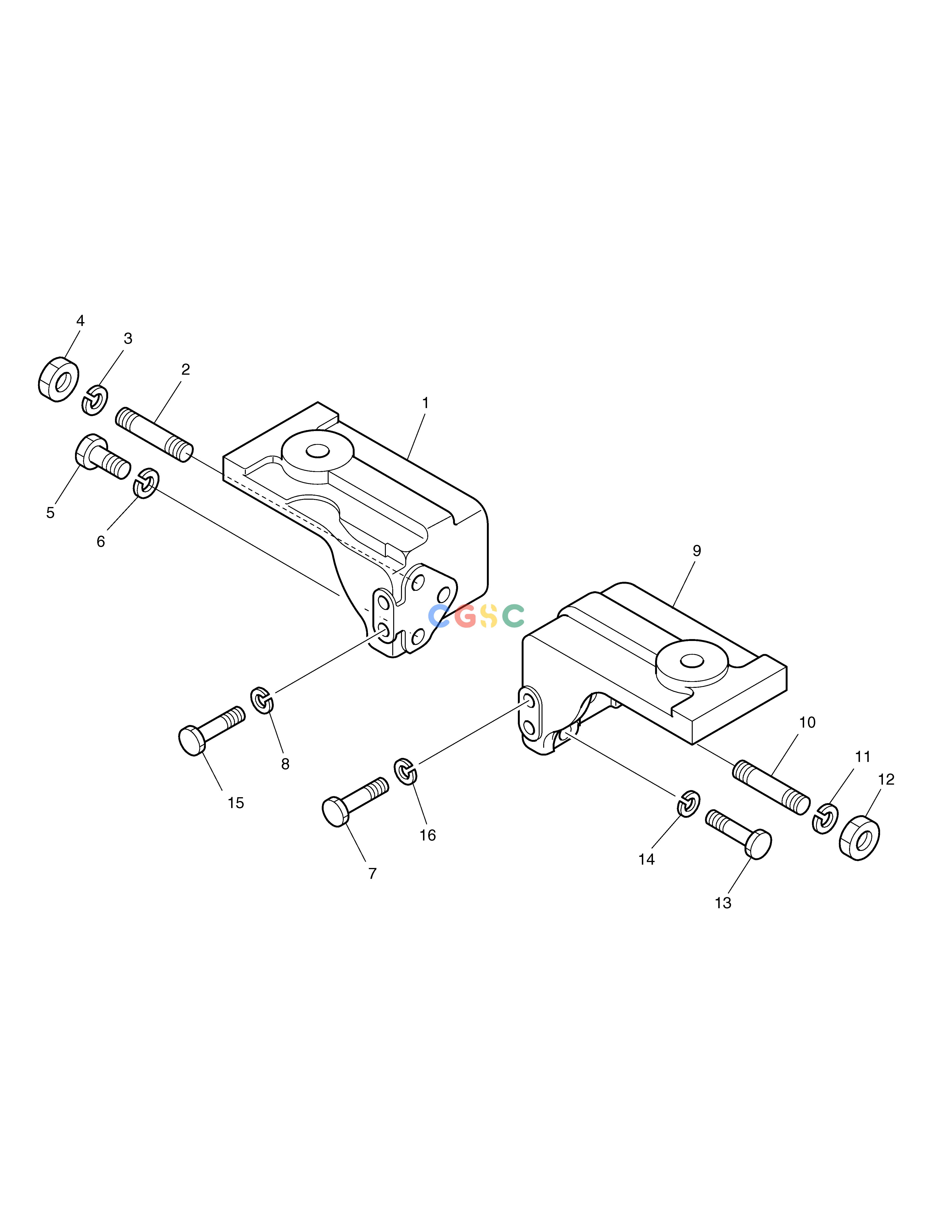

斗山零件查询ENGINE MOUNTING SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
899 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.41530-0161
|
[1] |
BRACKET;FRONT MOUNTING
|
65.41530-0161A
|
| 1. |
65.41530-0161A
|
[1] |
BRACKET;FRONT MOUNTING
|
|
| 10. |
65.90201-0063
|
[1] |
BOLT;STUD M14X1.5X35
|
|
| 11. |
06.16731-2110
|
[1] |
WASHER;SPRING
|
|
| 12. |
06.11063-9217
|
[1] |
. NUT
|
|
| 13. |
06.01494-4410
|
[2] |
BOLT;HEX. M14X1.5X55
|
|
| 14. |
06.16731-2110
|
[2] |
WASHER;SPRING
|
|
| 15. |
06.01494-4416
|
[2] |
BOLT;HEX. M14X1.5X85
|
|
| 16. |
06.16731-2110
|
[2] |
WASHER;SPRING
|
|
| 2. |
65.90201-0063
|
[1] |
BOLT;STUD M14X1.5X35
|
|
| 3. |
06.16731-2110
|
[1] |
WASHER;SPRING
|
|
| 4. |
06.11063-9217
|
[1] |
. NUT
|
|
| 5. |
06.01494-4414
|
[2] |
BOLT;HEX. M14X1.5X75
|
|
| 6. |
06.16731-2110
|
[2] |
WASHER;SPRING
|
|
| 7. |
06.01494-4414
|
[2] |
BOLT;HEX. M14X1.5X75
|
|
| 8. |
06.16731-2110
|
[2] |
WASHER;SPRING
|
|
| 9. |
65.41530-0162
|
[1] |
BRACKET;FRONT MOUNTING
|
65.41530-0162A
|
| 9. |
65.41530-0162A
|
[1] |
BRACKET;FRONT MOUNTING
|
|
