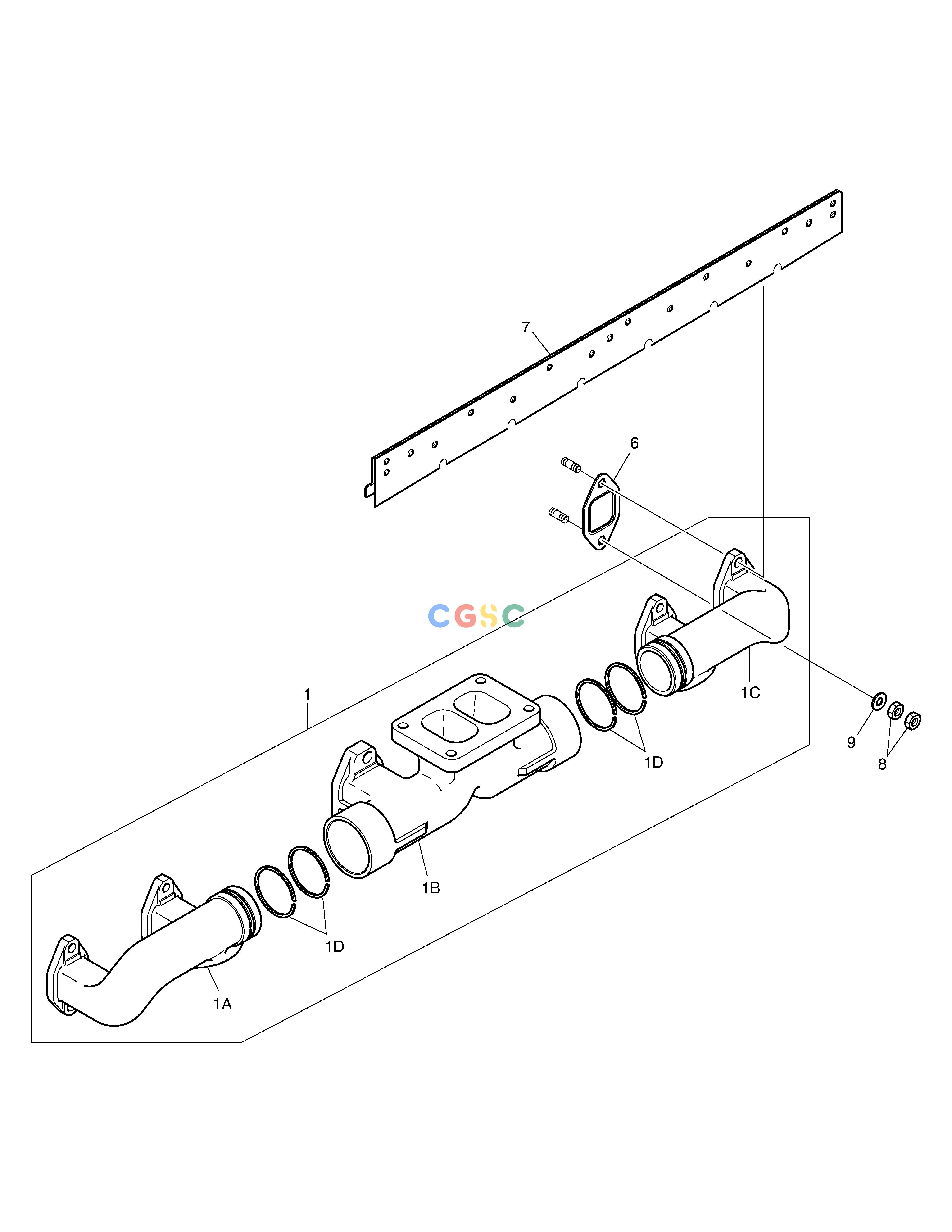

斗山零件查询EXHAUST MANIFOLD SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
426 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.08100-6061
|
[1] |
EXHAUST MANIFOLD ASS'Y
|
|
| 1A. |
65.08101-0181A
|
[1] |
MANIFOLD;EXHAUST(FRONT)
|
|
| 1B. |
65.08101-0530
|
[1] |
MANIFOLD;EXHAUST(CENTER)
|
|
| 1C. |
65.08101-0183A
|
[1] |
MANIFOLD;EXHAUST(REAR)
|
|
| 1D. |
65.08105-0001
|
[4] |
RING
|
|
| 6. |
65.08901A0012
|
[6] |
GASKET;EXHAUST MANIFOLD
|
65.08901-0044
|
| 6. |
65.08901-0044
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 7. |
65.08120-5008F
|
[1] |
SCREEN;HEAT
|
65.08120-5008G
|
| 7. |
65.08120-5008G
|
[1] |
SCREEN;HEAT&CYL HEAD
|
|
| 8. |
06.11063-8215
|
[22] |
NUT;HEX. M10
|
|
| 9. |
06.15010-2312
|
[12] |
WASHER;PLAIN
|
|
