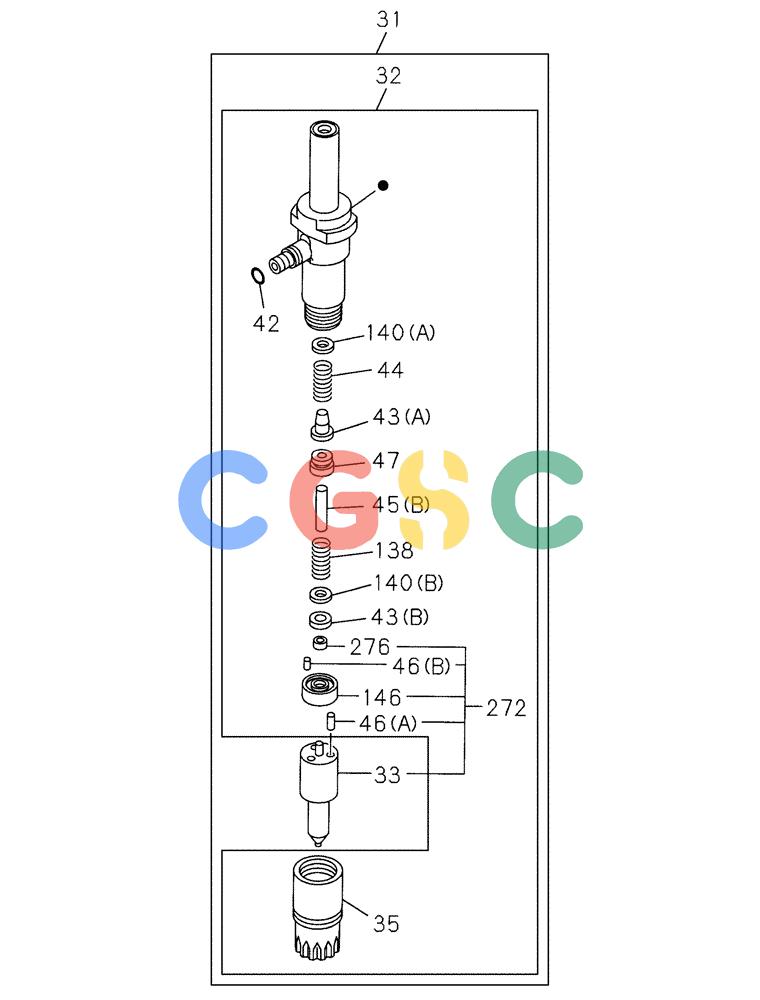

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (03-021-00[01]) - INJECTOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
302 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 31. | 426405A1 | [1] | INJECTOR ASSY. | ISU |
| 32. | 426406A1 | [1] | BODY | ISU |
| 33. | 426407A1 | [1] | NOZZLE INJECTION | ISU |
| 35. | 443713A1 | [1] | NUT | ISU |
| 42. | 443715A1 | [1] | GASKET | ISU Superseded by part number: 72110401 |
| 43A. | 437946A1 | [1] | SPRING SEAT | ISU |
| 43B. | 437947A1 | [1] | SPRING SEAT | ISU |
| 44. | 437948A1 | [1] | SPRING | ISU |
| 45. | 437967A1 | [1] | TAPPET | ISU |
| 46A. | 289884A1 | [2] | PIN | ISU |
| 46B. | 443716A1 | [2] | SMALL PIN | ISU |
| 47. | 437966A1 | [1] | SPACER | ISU |
| 138. | 437949A1 | [1] | SPRING | ISU |
| 140A. | 437950A1 | [1] | SHIM | ISU0,40mm |
| 140A. | 437951A1 | [1] | SHIM | ISU0,50mm |
| 140A. | 437952A1 | [1] | SHIM | ISU0,52mm |
| 140A. | 437953A1 | [1] | SHIM | ISU0,54mm |
| 140A. | 437954A1 | [1] | SHIM | ISU0,56mm |
| 140A. | 437955A1 | [1] | SHIM | ISU0,58mm |
| 140A. | 437956A1 | [1] | SHIM | ISU0,60mm |
| 140A. | 437957A1 | [1] | SHIM | ISU0,70mm |
| 140B. | 437958A1 | [1] | SHIM | ISU0,40mm |
| 140B. | 437959A1 | [1] | SHIM | ISU0,50mm |
| 140B. | 437960A1 | [1] | SHIM | ISU0,52mm |
| 140B. | 437961A1 | [1] | SHIM | ISU0,54mm |
| 140B. | 437962A1 | [1] | SHIM | ISU0,56mm |
| 140B. | 437963A1 | [1] | SHIM | ISU0,58mm |
| 140B. | 437964A1 | [1] | SHIM | ISU0,60mm |
| 140B. | 437965A1 | [1] | SHIM | ISU0,70mm |
| 146. | 443718A1 | [1] | SPACER | ISU |
| 272. | 426425A1 | [6] | NOZZLE INJECTION | ISU |
| 276. | 443719A1 | [1] | GUIDE RING | ISU |
