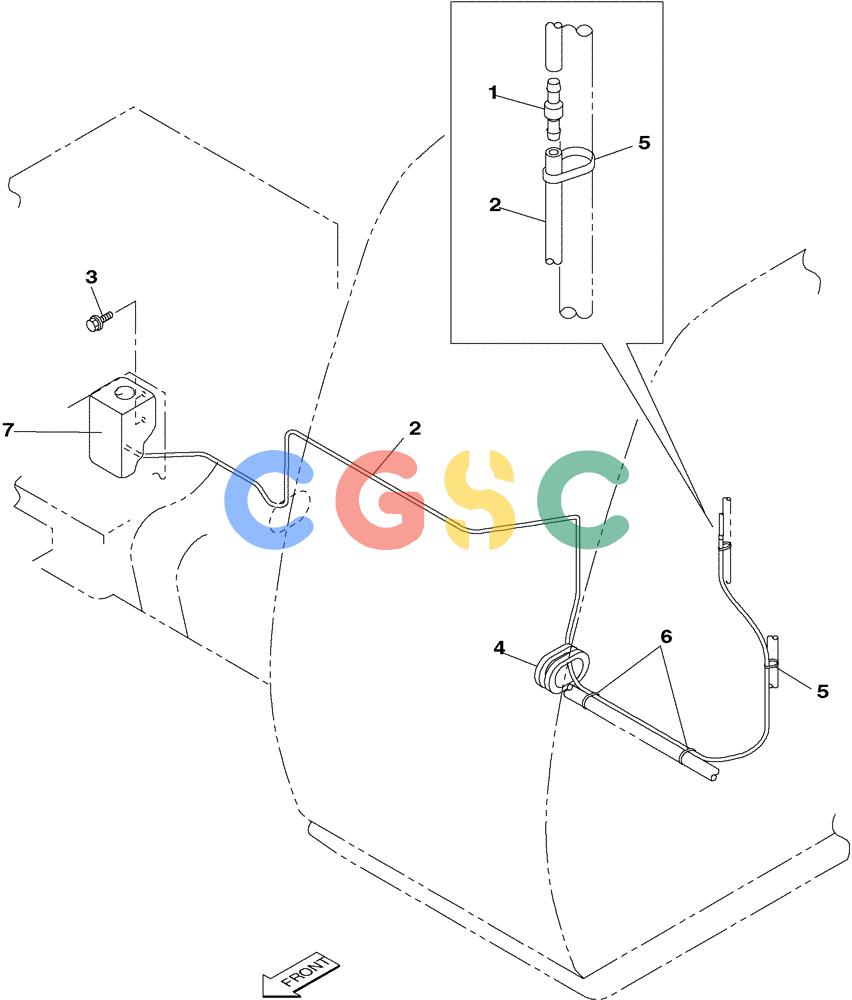

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 152824A1 | [1] | ADAPTER | SUM |
| 2. | 152831A1 | [1] | PLASTIC-RUBBER TUBE,4 mm ID, 7 mm OD, 4000 mm Length | SUM Superseded by part number: KHR21770 |
| 3. | 159602A1 | [2] | BOLT,Sems, Hex, M6 x 16mm | SUM |
| 4. | 163732A1 | [1] | GROMMET | SUM |
| 5. | 150067A1 | [2] | MOUNTING CLIP | SUM |
| 6. | 150496A1 | [2] | MOUNTING CLIP | SUM |
| 7. | 161374A1 | [1] | RESERVOIR ASSY. | SUM |
