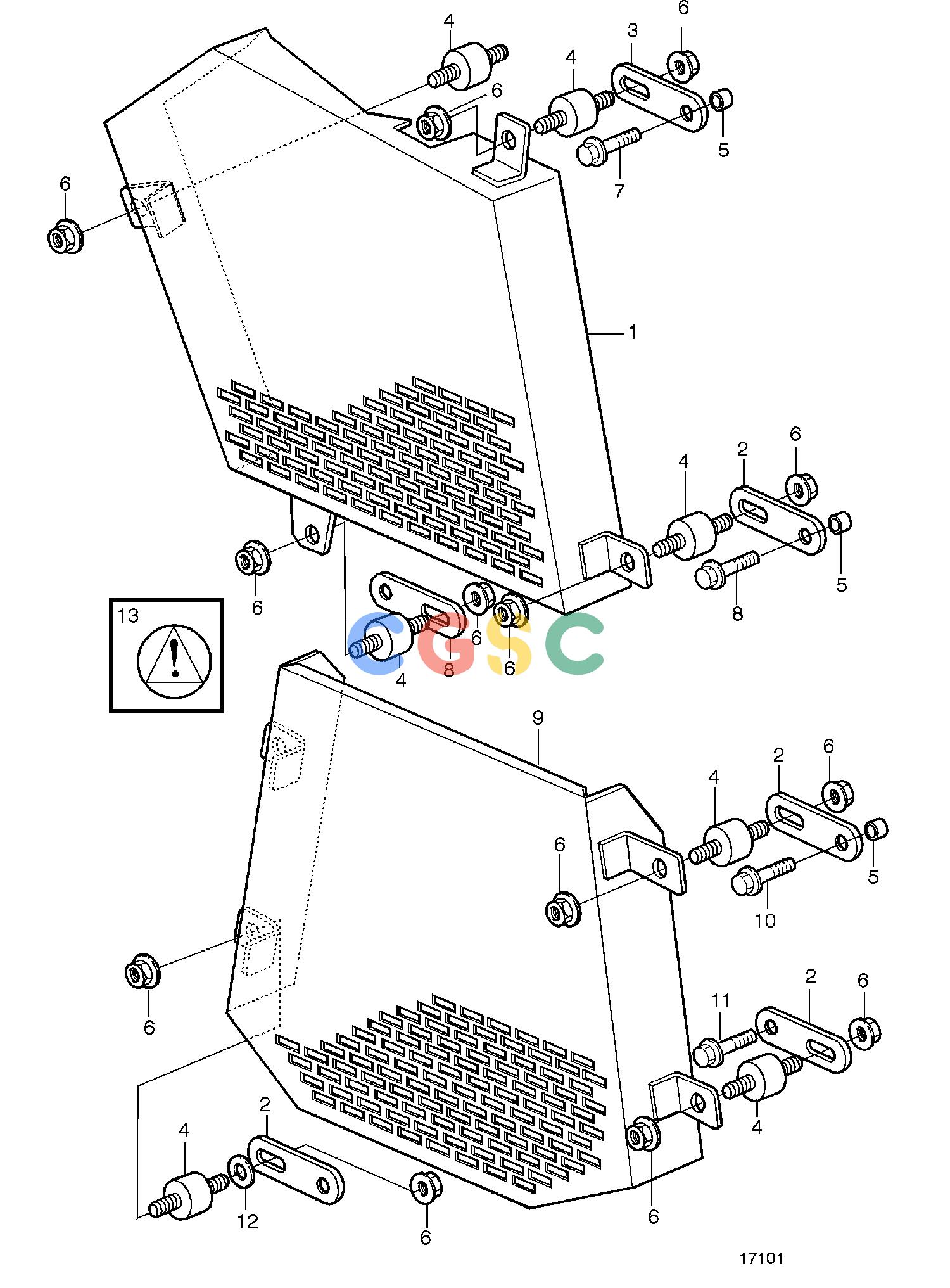

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemBelt Guard. Extra EquipmentEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
766 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3826235
|
[1] |
Belt protector
|
|
| 2. |
965534
|
[4] |
Bracket
|
|
| 3. |
965537
|
[1] |
Bracket
|
|
| 4. |
3574797
|
[7] |
Vibration damper
|
|
| 5. |
843075
|
[3] |
Spacer sleeve
|
16x8,4x11mm
|
| 5. |
1560272
|
[3] |
Spacer washer
|
18x8,4x13mm
|
| 6. |
949278
|
[13] |
Flange lock nut
|
|
| 7. |
947760
|
[2] |
Flange screw
|
|
| 8. |
965535
|
[1] |
Bracket
|
|
| 9. |
3826234
|
[1] |
Belt protector
|
|
| 10. |
965216
|
[1] |
Flange screw
|
|
| 11. |
965215
|
[1] |
Flange screw
|
|
| 12. |
191172
|
[1] |
Washer
|
|
| 13. |
3817024
|
[1] |
Decal
|
|
