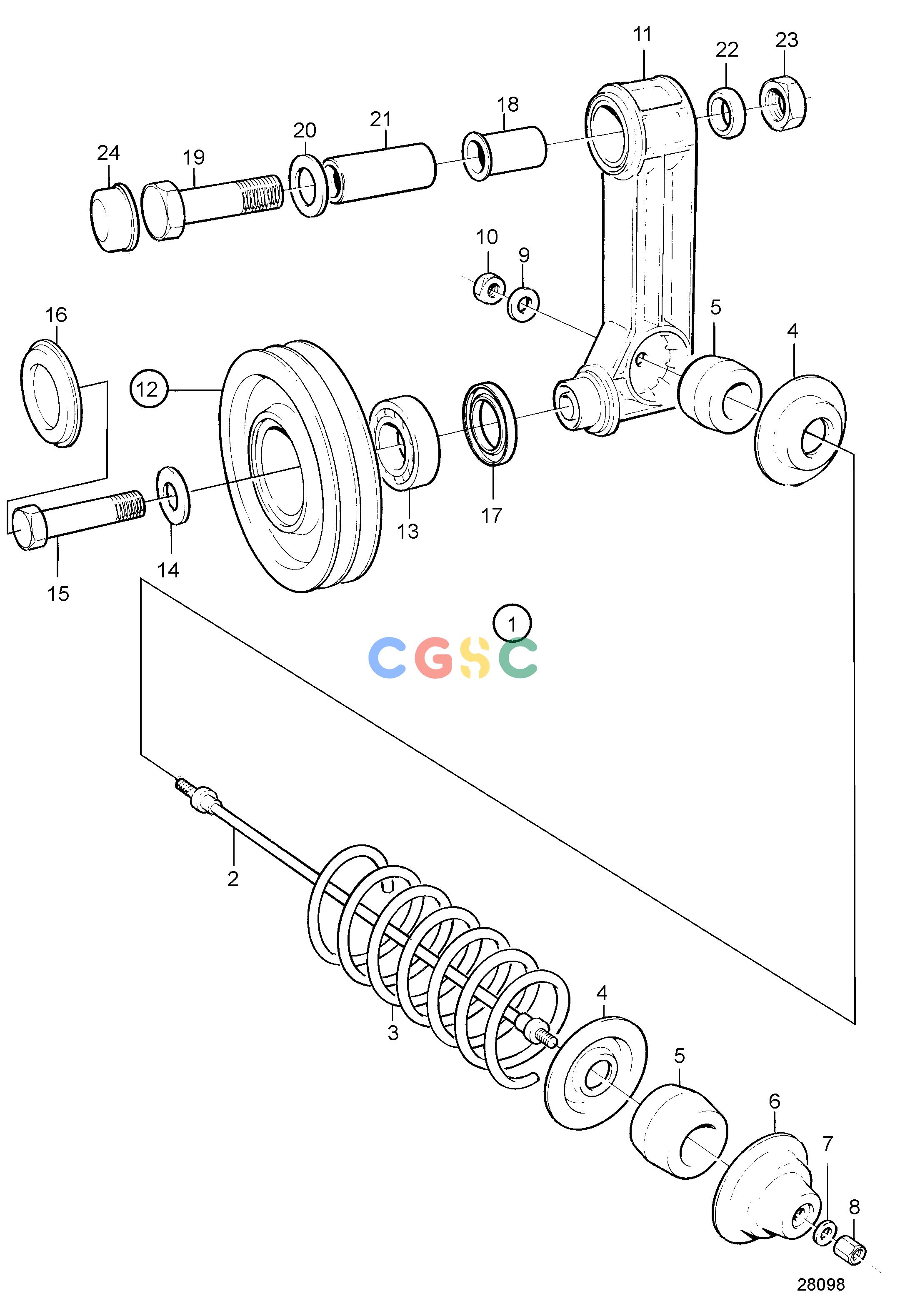

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemBelt Tensioner DeviceEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
894 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
421540
|
[1] |
Belt tensioner
|
|
| 2. |
477312
|
[1] |
Cable
|
|
| 3. |
471318
|
[1] |
Compression spring
|
|
| 4. |
471323
|
[2] |
Spring guide
|
|
| 5. |
1134962
|
[2] |
Ring
|
|
| 6. |
471325
|
[1] |
Spring anchorage
|
|
| 7. |
955892
|
[1] |
Washer
|
|
| 8. |
421541
|
[1] |
Nut
|
|
| 9. |
960140
|
[1] |
Washer
|
|
| 10. |
955781
|
[1] |
Hexagon nut
|
|
| 11. |
|
|
|
Not as spare part
|
| 12. |
1661878
|
[1] |
Pulley
|
|
| 13. |
1544092
|
[1] |
Ball bearing
|
|
| 14. |
948880
|
[1] |
Washer
|
|
| 15. |
946671
|
[1] |
Flange screw
|
Self threading.
|
| 16. |
471430
|
[1] |
Body
|
|
| 17. |
477016
|
[1] |
Sealing washer
|
|
| 18. |
477160
|
[1] |
Slide bearing
|
|
| 19. |
970983
|
[1] |
Hexagon screw
|
|
| 20. |
960145
|
[1] |
Washer
|
|
| 21. |
471317
|
[1] |
Shaft
|
|
| 22. |
471321
|
[1] |
Sealing ring
|
|
| 23. |
971072
|
[1] |
Hexagon nut
|
|
| 24. |
471889
|
[1] |
Protecting casing
|
|
