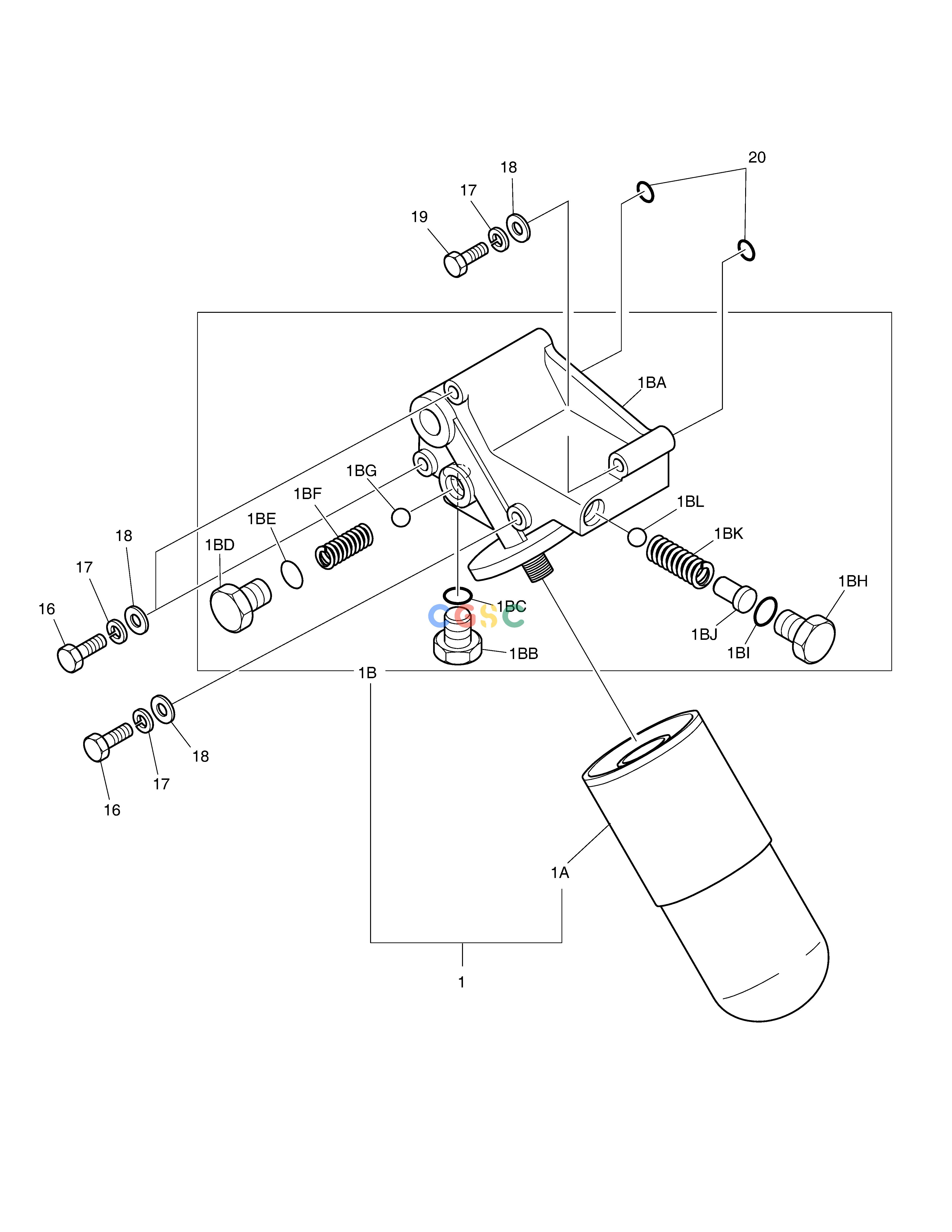

斗山零件查询OIL FILTER SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
860 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05501-7072
|
[1] |
OIL FILTER ASS'Y
|
65.05501-7081
|
| 1. |
65.05501-7081
|
[1] |
OIL FILTER ASS'Y
|
65.05501-7081A
|
| 1. |
65.05501-7081A
|
[1] |
OIL FILTER ASS'Y
|
400404-00017
|
| 1. |
400404-00017
|
[1] |
|
|
| 16. |
06.01493-4323
|
[3] |
BOLT M12X140
|
|
| 17. |
06.16731-2109
|
[4] |
WASHER;SPRING A12
|
|
| 18. |
06.15010-2313
|
[4] |
WASHER;PLAIN
|
|
| 19. |
06.01493-4315
|
[1] |
BOLT;HEX. M12X1.5X80
|
|
| 1A. |
65.05510-5027
|
[1] |
CARTRIDGE;OIL FILTER
|
|
| 1A. |
65.05510-5020A
|
[1] |
CARTRIDGE;OIL FILTER
|
|
| 1A. |
400508-00005
|
[1] |
|
|
| 1B. |
65.05503-5050
|
[1] |
OIL FILTER HEAD ASS'Y
|
|
| 1BA. |
65.05503-0040A
|
[1] |
HEAD;OIL FILTER
|
|
| 1BB. |
65.90310-0121
|
[1] |
SCREW;PLUG
|
|
| 1BC. |
06.56190-0722
|
[1] |
RING;SEAL
|
|
| 1BD. |
65.90310-0115
|
[1] |
. PLUG
|
|
| 1BE. |
06.56190-0726
|
[1] |
. SEAL;RING
|
|
| 1BF. |
65.97601-0075
|
[1] |
. SPRING
|
|
| 1BG. |
06.31641-0433
|
[1] |
. BALL;STEEL
|
|
| 1BH. |
65.90310-0034
|
[1] |
SCREW;PLUG M26X1.5
|
|
| 1BI. |
06.56190-0728
|
[1] |
RING;SEAL
|
|
| 1BJ. |
06.22230-1214
|
[1] |
PIN
|
|
| 1BK. |
65.97601-0004
|
[1] |
SPRING
|
|
| 1BL. |
06.31641-0433
|
[1] |
. BALL;STEEL
|
|
| 20. |
65.96501-0061
|
[2] |
O-RING
|
|
