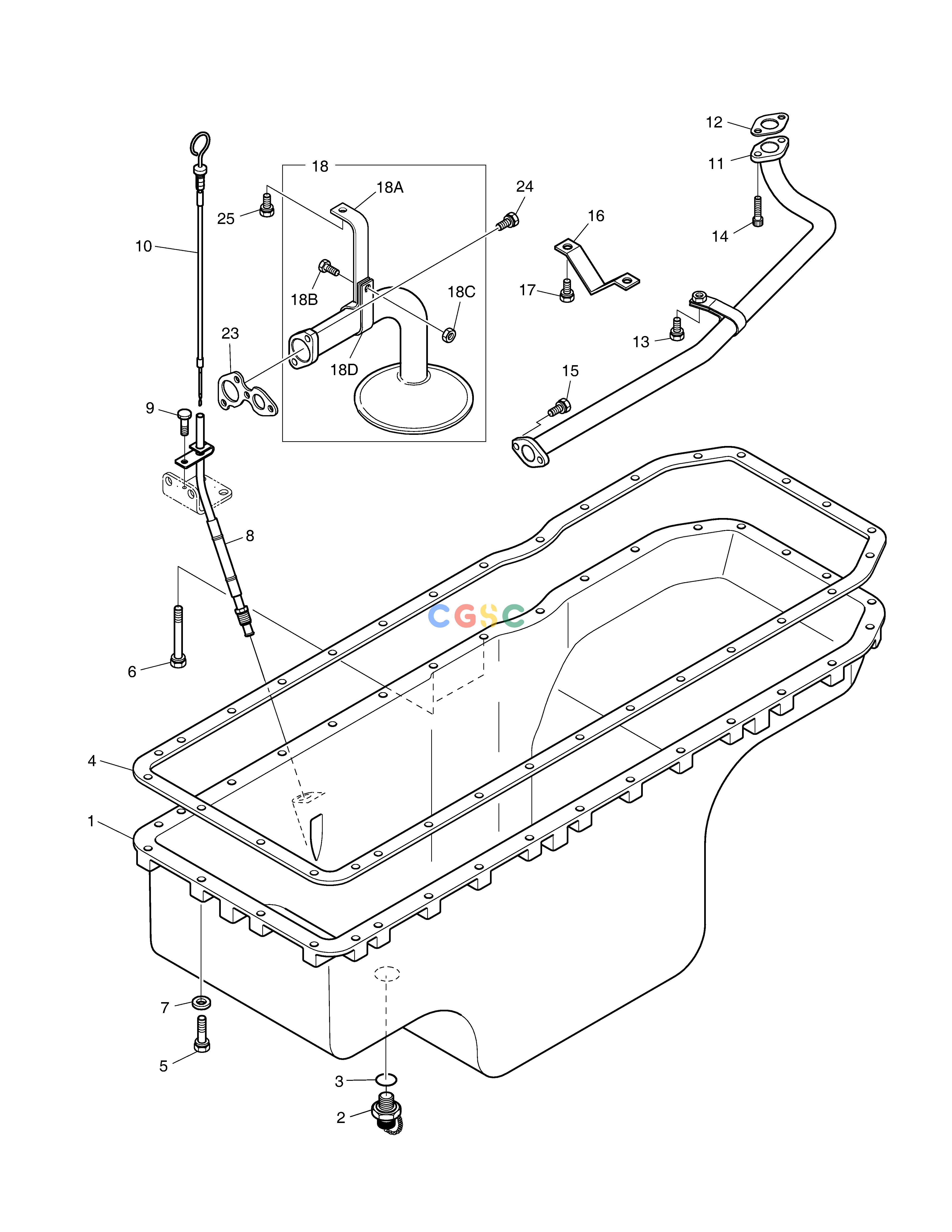

斗山零件查询OIL PAN SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
266 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05801-5380A
|
[1] |
PAN;OIL
|
|
| 10. |
65.05805-5193A
|
[1] |
OIL LEVEL GAUGE ASS'Y
|
65.05805-5193B
|
| 10. |
65.05805-5193B
|
[1] |
OIL LEVEL GAUGE ASS'Y
|
65.05805-5193C
|
| 10. |
65.05805-5193C
|
[1] |
OIL LEVEL GAUGE ASS'Y
|
65.05805-5306
|
| 10. |
65.05805-5306
|
[1] |
|
|
| 11. |
65.05701-5349
|
[1] |
OIL PIPE ASS'Y
|
|
| 12. |
65.96601-0043
|
[1] |
GASKET
|
|
| 13. |
06.01913-3115
|
[1] |
BOLT ASS`Y M8X25
|
|
| 14. |
65.90001-6005
|
[2] |
BOLT;SOCKET
|
|
| 15. |
06.01913-3113
|
[2] |
.. BOLT ASS`Y M8X20
|
|
| 16. |
65.05740-2042
|
[1] |
BRACKET
|
|
| 17. |
06.01923-3112
|
[2] |
BOLT ASS`Y M8X18
|
|
| 18. |
65.05701-6041A
|
[1] |
OIL SUCT. PIPE ASSS'Y
|
|
| 18A. |
65.05740-0017
|
[1] |
BRACKET;OIL SUCTION
|
|
| 18B. |
06.01283-7113
|
[1] |
BOLT;HEX. M8X1.25X20
|
|
| 18C. |
65.90510-0012
|
[1] |
NUT
|
|
| 18D. |
65.97401-0130
|
[1] |
CLAMP;SUCTION PIPE
|
|
| 2. |
65.98125-5019
|
[1] |
JOINT;DRAIN
|
65.98125-5022
|
| 2. |
65.98125-5022
|
[1] |
JOINT;DRAIN
|
65.98125-5022A
|
| 2. |
65.98125-5022A
|
[1] |
JOINT;DRAIN
|
|
| 23. |
65.05903-0027A
|
[1] |
GASKET
|
|
| 24. |
06.01913-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 25. |
06.01923-3111
|
[1] |
BOLT, M8X16
|
65.90020-0068
|
| 25. |
65.90020-0068
|
[1] |
BOLT ASS'Y M8X16
|
|
| 3. |
06.56190-0732
|
[1] |
SEAL;RING
|
|
| 4. |
65.05904-0096A
|
[1] |
GASKET;OIL PAN
|
|
| 5. |
65.90001-6010
|
[30] |
BOLT ASS'Y M8X38
|
|
| 6. |
06.01923-3124
|
[2] |
BOLT ASS`Y M8X65
|
|
| 7. |
06.15010-2311
|
[30] |
WASHER
|
|
| 8. |
65.05806-5096A
|
[1] |
TUBE;GUIDE
|
65.05806-5096B
|
| 8. |
65.05806-5096B
|
[1] |
TUBE;GUIDE
|
|
| 9. |
06.01923-3113
|
[1] |
BOLT ASS`Y M8X20
|
|
