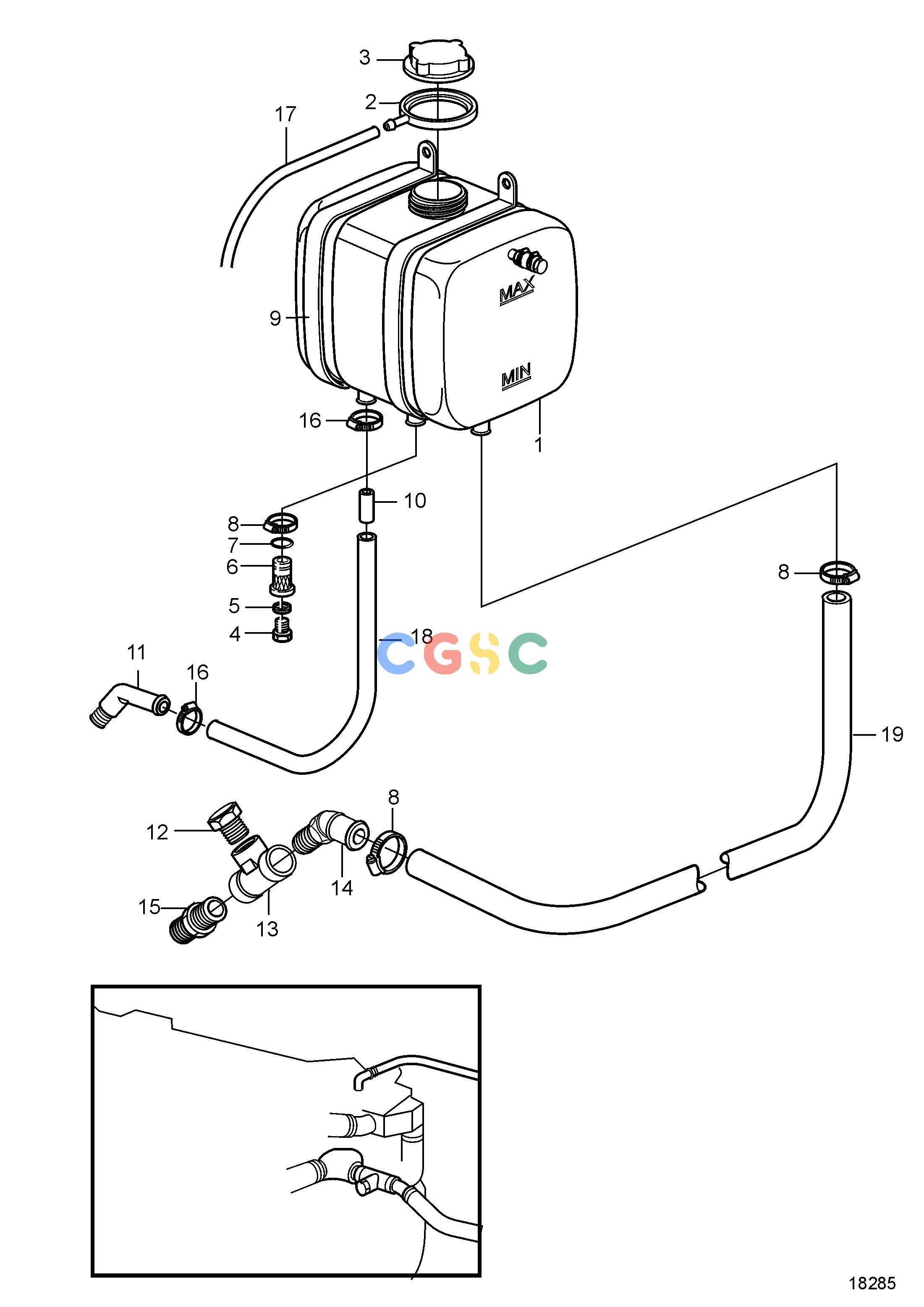

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemExpansion Tank for Keel Cooling, Single CircuitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
11110208
|
[1] |
Expansion tank
|
(4804536)
|
| 2. |
3828863
|
[1] |
Rubber collar
|
|
| 3. |
1674083
|
[1] |
Pressure cap
|
75kPa
|
| 4. |
947660
|
[1] |
Plug
|
|
| 5. |
11994
|
[1] |
Gasket
|
|
| 6. |
11031743
|
[1] |
Nipple
|
|
| 7. |
960164
|
[1] |
O-ring
|
|
| 8. |
961667
|
[3] |
Hose clamp
|
|
| 9. |
3829850
|
[2] |
Mounting strap
|
|
| 10. |
11033572
|
[1] |
Reduction nipple
|
|
| 11. |
479953
|
[2] |
Elbow nipple
|
|
| 12. |
479956
|
[1] |
Plug
|
(192154)
|
| 13. |
3830969
|
[1] |
T-nipple
|
|
| 14. |
828693
|
[1] |
Hose attachment
|
|
| 15. |
16452
|
[1] |
Double nipple
|
(3830970)
|
| 16. |
961664
|
[2] |
Hose clamp
|
|
| 17. |
192618
|
[1] |
Hose
|
|
| 18. |
943367
|
[1] |
Rubber hose
|
|
| 19. |
944386
|
[1] |
Rubber hose
|
|
