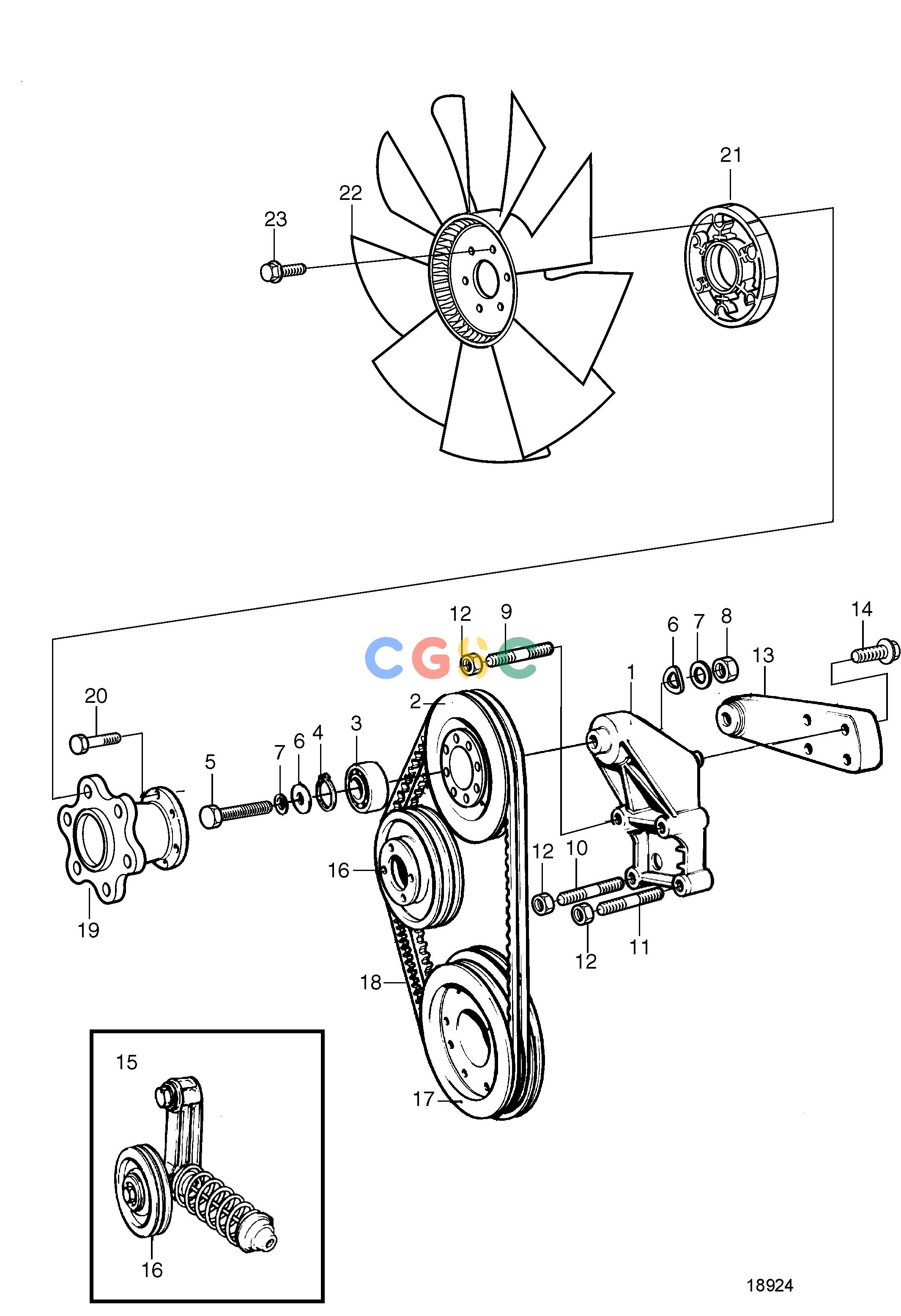

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemFanEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
256 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
11030668
|
[1] |
Bracket
|
|
| 2. |
11032857
|
[1] |
Pulley
|
|
| 3. |
1660115
|
[1] |
Ball bearing
|
|
| 4. |
914532
|
[1] |
Snap ring
|
|
| 5. |
970959
|
[1] |
Hexagon screw
|
|
| 6. |
4772122
|
[2] |
Washer
|
|
| 7. |
947541
|
[2] |
Washer
|
|
| 8. |
971071
|
[1] |
Hexagon nut
|
|
| 9. |
17378
|
[2] |
Stud
|
L=170mm
|
| 10. |
479973
|
[1] |
Stud
|
L=80mm
|
| 10. |
479972
|
[2] |
Stud
|
L=45mm
|
| 11. |
479973
|
[1] |
Stud
|
L=80mm
|
| 12. |
971095
|
[4] |
Flange nut
|
|
| 13. |
4772116
|
[1] |
Anchorage
|
|
| 14. |
965216
|
[4] |
Flange screw
|
|
| 15. |
7740900_123
|
|
Belt tensioner
|
|
| 16. |
7740900_123
|
|
Pulley
|
|
| 17. |
|
|
|
See group 21
|
| 18. |
966847
|
[1] |
V-belt
|
|
| 19. |
3826978
|
[1] |
Fan hub
|
|
| 20. |
945444
|
[8] |
Flange screw
|
L=25mm
|
| 21. |
3830951
|
[1] |
Spacer
|
|
| 22. |
3827492
|
[1] |
Fan
|
D=750mm (plastic)
|
| 23. |
965185
|
[6] |
Flange screw
|
L=40mm
|
