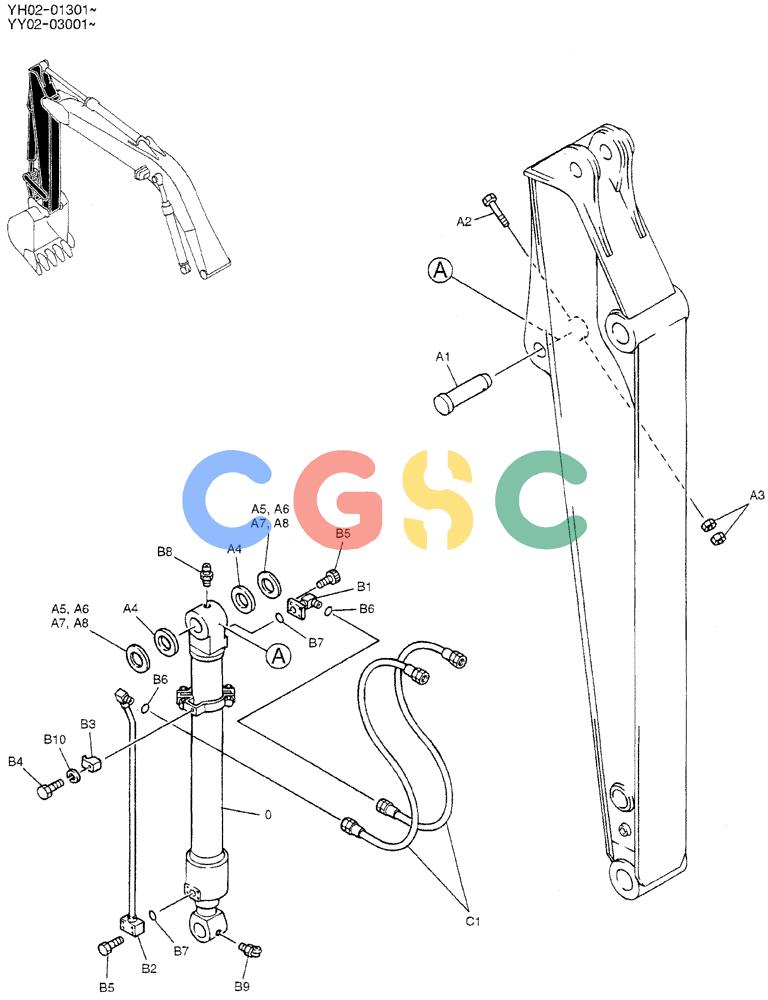

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (03-005) - HYD LINES, ARM 2.45M Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
917 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YX01V00005F2 | [1] | CYLINDER ASSY. | KOBBUCKET Superseded by part number: YX01V00005F7 |
| . . | YX01V00005F7R | [1] | REMAN-HYD CYLINDER | RACSK135SR-1E ASN YY03-04555, SK135SRL-1E ASN LK03-01107, SK135SRLC-1E ASN YH03-02097, Reman For New P/N YX01V00005F2 |
| . . | YX01V00005F7C | [1] | CORE-HYD CYLINDER | RACReturn Number |
| . . | YY12B00005F1 | [1] | CYLINDER | KOBINSTAL |
| A1. | LP12B01042P1 | [1] | PIN | KOBOD 60 x 222mm Long |
| A2. | HS18C12110G2 | [1] | CAPSCREW | KOBSCREW M12x1.75x110mm |
| A3. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| A4. | YW12B01025P1 | [2] | SHIM,62mm ID x 100mm OD x 3mm Thk | KOBID 62 x OD 100 x Th 3.0mm |
| A5. | B16T0442D43 | [1] | SHIM,62mm ID x 100mm OD x 0.9mm Thk | KOBID 62 x OD 100 x Th 0.9mm |
| A6. | B16T0442D56 | [1] | SHIM,62mm ID x 100mm OD x 0.5mm Thk | KOBID 62 x OD 100 x Th 0.5mm |
| A7. | B16T0442D27 | [1] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOBID 62 x OD 100 x Th 1.2mm |
| A8. | B16T0442D19 | [1] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOBID 62 x OD 100 x Th 1.6mm |
| . . | LP43H00002F1 | [1] | LINE | KOBCYLINDER |
| B1. | LP43H01054P1 | [1] | TUBE | KOB |
| B2. | LP43H01047P2 | [1] | TUBE | KOB |
| B3. | YW43H01049P1 | [1] | CLAMP | KOB |
| B4. | ZS18C10050 | [1] | SCREW,Hex, M10 x 50mm | KOBM10x1.50x50mm |
| B5. | ZS28C10030 | [8] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm |
| B6. | ZD12A01600 | [2] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| B7. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| B8. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| B9. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| B10. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| . . | YY43H00001F1 | [1] | LINE | KOBARM Superseded by part number: ZX50H10110 |
| C1. | ZX50H10110 | [2] | HOSE | KOB |
