沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemKeel Cooling, One CircuitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
951 次

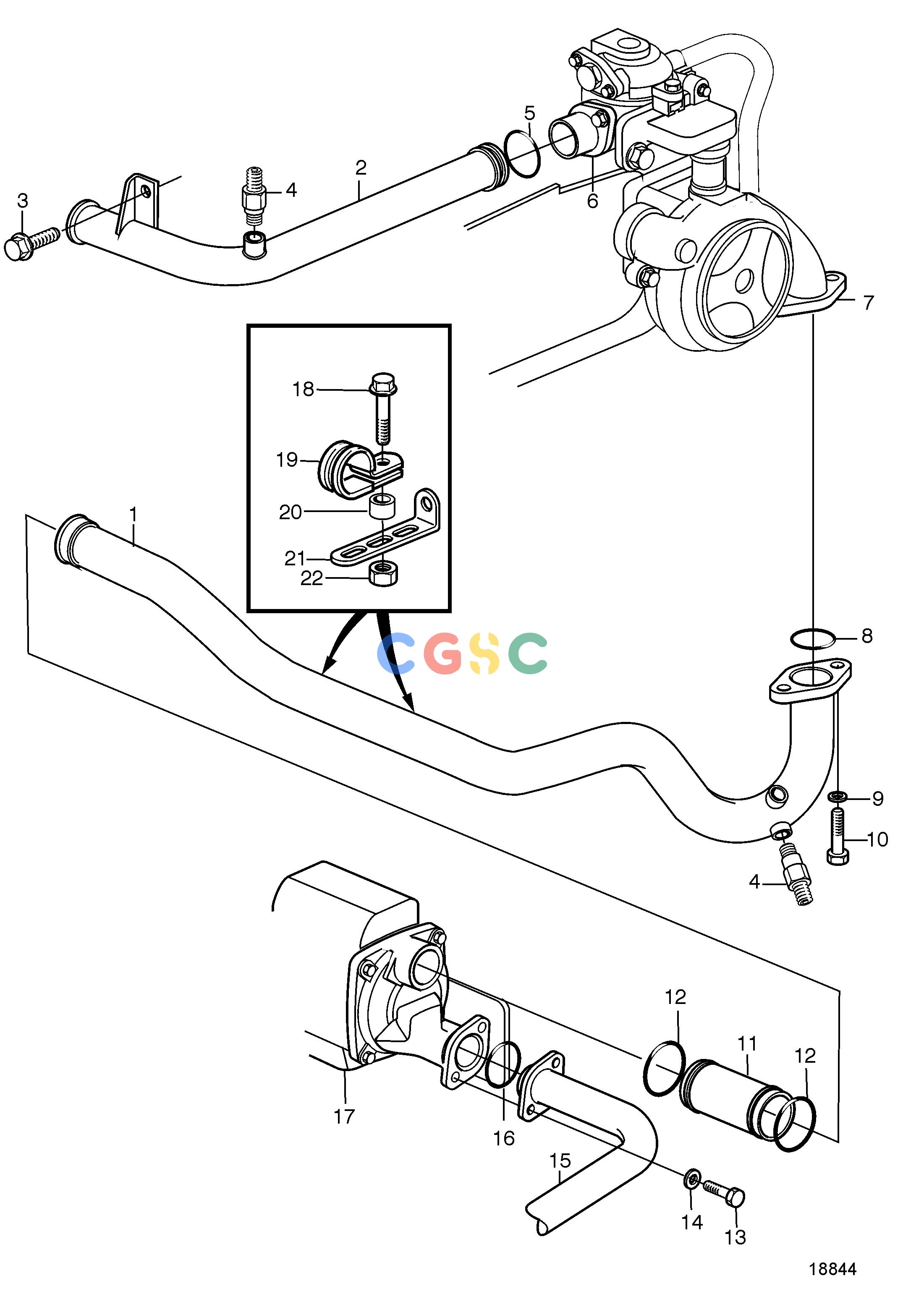

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3829787
|
[1] |
Coolant pipe
|
|
| 2. |
3825341
|
[1] |
Coolant pipe
|
|
| 3. |
945444
|
[1] |
Flange screw
|
|
| 4. |
949918
|
[2] |
Shut-off cock
|
|
| 5. |
466740
|
[1] |
O-ring
|
|
| 6. |
848690
|
[1] |
Flange
|
|
| 7. |
7740900_113
|
|
Circulation pump
|
|
| 8. |
925092
|
[1] |
O-ring
|
(975673)
|
| 9. |
941907
|
[2] |
Spring washer
|
|
| 10. |
959229
|
[2] |
Hex. socket screw
|
|
| 11. |
866594
|
[1] |
Tube
|
|
| 12. |
866690
|
[2] |
O-ring
|
|
| 13. |
945444
|
[2] |
Flange screw
|
|
| 14. |
941907
|
[2] |
Spring washer
|
|
| 15. |
3829700
|
[2] |
Pipe
|
|
| 16. |
864491
|
[1] |
Gasket
|
|
| 17. |
7740900_109
|
|
Charge air cooler
|
|
| 18. |
947542
|
[1] |
Flange screw
|
|
| 19. |
945734
|
[1] |
Clamp
|
|
| 20. |
946048
|
[1] |
Spacer washer
|
|
| 21. |
965561
|
[1] |
Bracket
|
|
| 22. |
945407
|
[1] |
Flange nut
|
|
