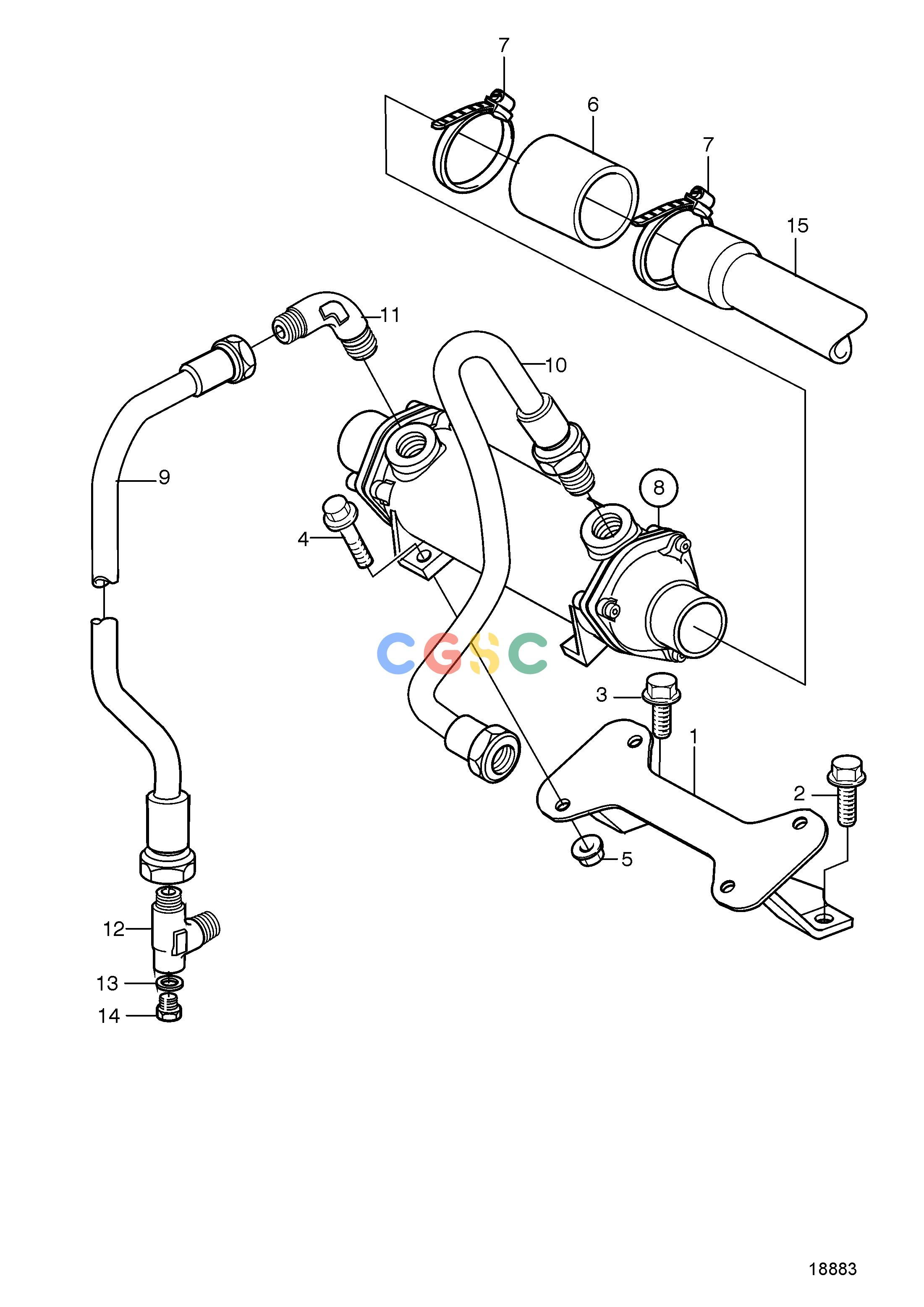

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemOil Cooler for MG5091DCEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
892 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3827383
|
[1] |
Bracket
|
|
| 2. |
946502
|
[1] |
Flange screw
|
L=20mm
|
| 3. |
946817
|
[1] |
Flange screw
|
L=25mm
|
| 4. |
946671
|
[4] |
Flange screw
|
|
| 5. |
948645
|
[4] |
Flange lock nut
|
|
| 6. |
943371
|
[1] |
Rubber hose
|
L=80mm
|
| 7. |
961672
|
[2] |
Hose clamp
|
|
| 8. |
3830503
|
[1] |
Oil cooler
|
Classifiable
|
| 8. |
|
|
|
|
| 9. |
863336
|
[1] |
Lubricating oil hose
|
L=900mm
|
| 10. |
836476
|
[1] |
Lubricating oil hose
|
L=725mm
|
| 11. |
842717
|
[1] |
Elbow union
|
|
| 12. |
837063
|
[1] |
Elbow union
|
|
| 13. |
960632
|
[1] |
Plug
|
|
| 14. |
947624
|
[1] |
Gasket
|
|
| 15. |
3832650
|
[1] |
Coolant pipe
|
|
| 15. |
3832655
|
[1] |
Coolant pipe
|
|
