神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (09-067) - VALVE ASSY, BYPASS Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
781 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

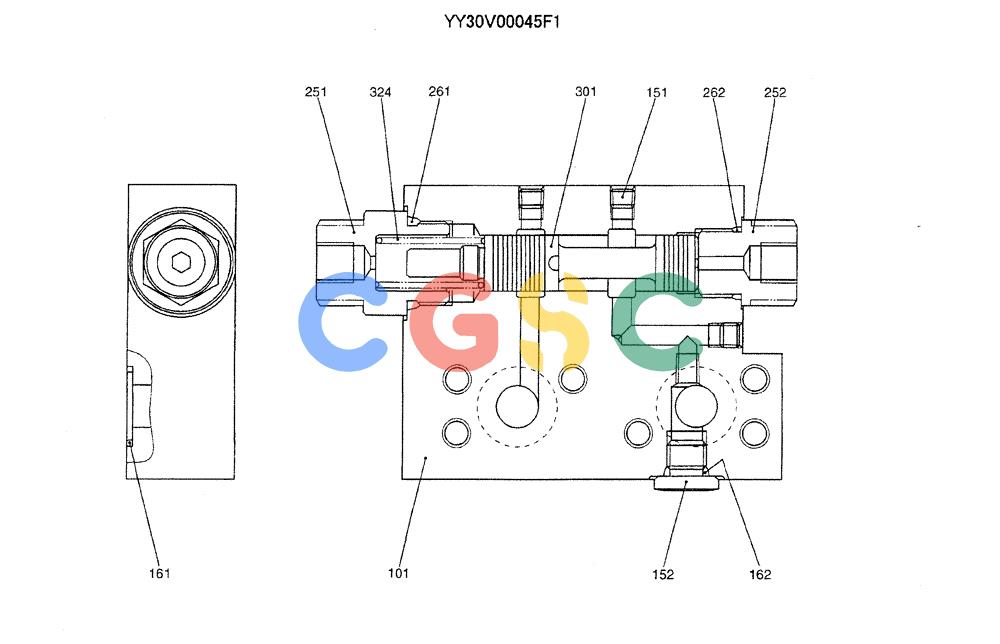

| . . | YY30V00045F1 | [1] | CONTROL VALVE | KOBASSY, BYPASS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASE |
| 151. | 2441U722S490 | [3] | PLUG | KOB1/16" NPTF |
| 152. | YW30V00001S157 | [1] | PLUG | KOB |
| 161. | ZD12P02200 | [2] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 162. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 251. | YB30V00014S251 | [1] | PLUG | KOB |
| 252. | YB30V00014S252 | [1] | PLUG | KOB |
| 261. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 262. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 324. | YY30V00045S324 | [1] | SPRING | KOB |
| . . | YY30V00045R100 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 101X1, 301X1 Superseded by part number: YY30V00045F1 |
