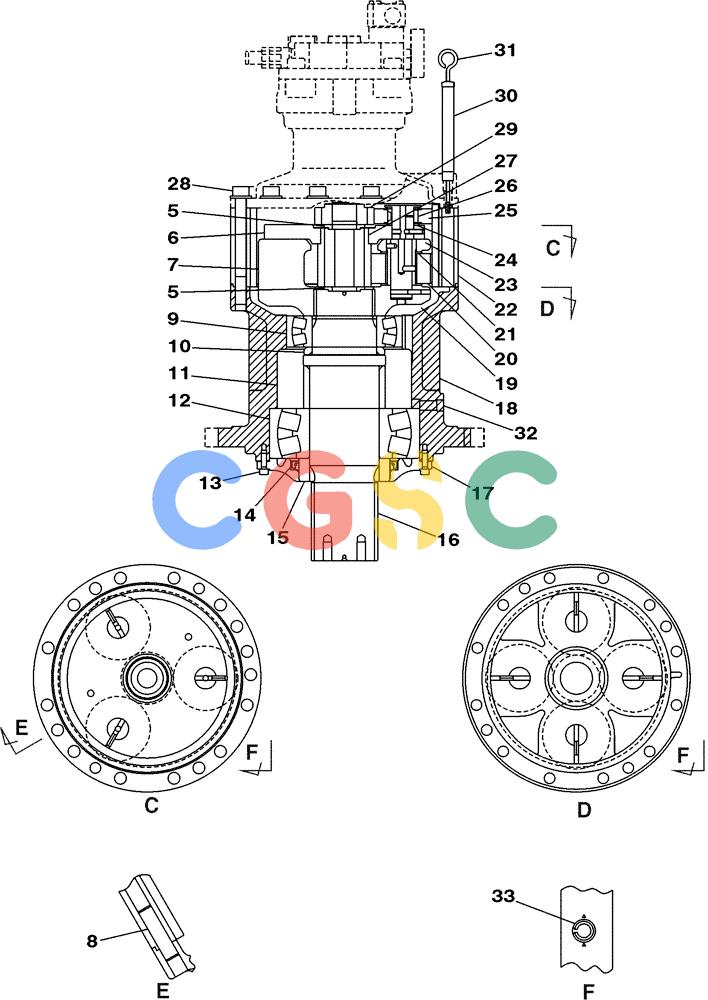

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (06-009-00[01]) - SWING REDUCTION GEAR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
688 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | KUP0048 | [1] | REDUCER | SUM |
| 5. | 150471A1 | [2] | PLATE, THRUST | SUM |
| 6. | KSC0243 | [1] | CARRIER | SUM |
| 7. | KSC0244 | [1] | HOUSING | SUM |
| 8. | 150474A1 | [4] | PIN | SUM |
| 9. | 150260A1 | [1] | ROLLER BEARING,120 mm ID x 215 mm OD x 58 mm | SUM |
| 10. | 150500A1 | [1] | SPACER | SUM |
| 11. | 150503A1 | [1] | SPACER | SUM |
| 12. | 150491A1 | [1] | ROLLER BEARING,130mm ID x 280mm OD x 93mm W | SUM |
| 13. | 862-10030 | [16] | HEX SOC SCREW,M10 x 30mm, Cl 12.9 | CAS Superseded by part number: 87016471 |
| 14. | 150494A1 | [1] | OIL SEAL | SUM |
| 15. | 150468A1 | [1] | HOLDER | SUM |
| 16. | KUC0007 | [1] | SHAFT | SUM |
| 17. | 158854A1 | [1] | RETAINER | SUM |
| 18. | KUC0006 | [1] | HOUSING | SUM |
| 19. | NSS | [4] | NOT SERVICED SEPARATELY | CON |
| 22. | 150528A1 | [1] | PINION | SUM |
| 27. | 150538A1 | [1] | SUN GEAR | SUM |
| 28. | 150483A1 | [12] | BOLT,Hex Skt, M20 | SUM |
| 29. | 150536A1 | [1] | SUN GEAR | SUM |
| 30. | 150435A1 | [1] | COLUMN JACKET | SUM |
| 31. | 150438A1 | [1] | GAUGE | SUM |
| 32. | 150825A1 | [1] | PLUG | SUM |
| 33. | 738-1825 | [7] | LOCK PIN,M8 x 25, Slotted | CAS Superseded by part number: 87016713 |
| . . | 169346A1 | [1] | GASKET | SUM |
| . . | KSC0189 | [1] | GASKET | SUM |
| . . | 301-1413 | [2] | DRIVE SCREW,Drive, #2 x 3/16" | CAS Superseded by part number: 86542114 |
