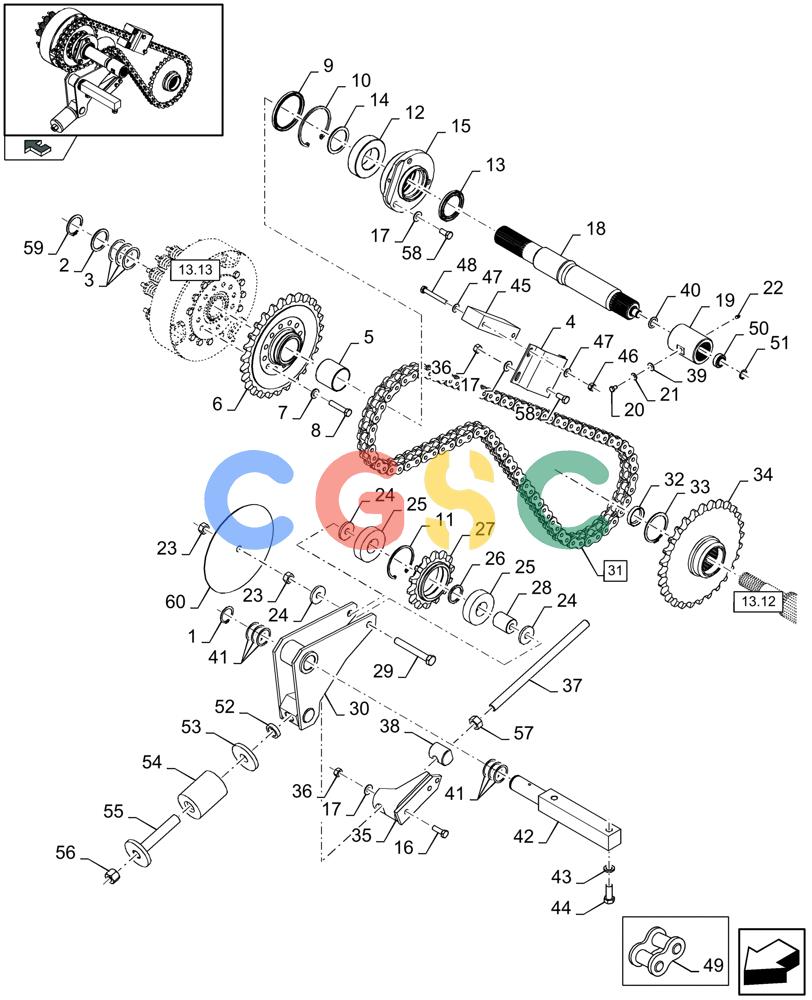

| 1. |
370006
|
[1] |
SNAP RING,M40, Ext
|
NH
|
| 2. |
84078690
|
[1] |
ADJUSTING PLATE
|
ZED
50 x 62 MM
|
| 3. |
539450
|
[1] |
SHIM,50mm ID x 62mm OD x 0.5mm Thk
|
MKT
|
| 4. |
84320401
|
[1] |
SUPPORT
|
ZED
|
| 5. |
84074230
|
[1] |
BUSHING,60mm ID x 65mm OD x 60mm L
|
ZED
|
| 6. |
84078578
|
[1] |
SPROCKET
|
ZED
|
| 7. |
65319
|
[12] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 8. |
9706693
|
[12] |
BOLT,M12 x 60mm, Cl 8.8
|
NH
|
| 9. |
84074232
|
[1] |
SEAL,90mm ID x 110mm OD x 8mm Thk
|
ZED
|
| 10. |
301652
|
[1] |
SNAP RING,M110 x 4mm, Internal
|
ZED
|
| 11. |
370013
|
[1] |
SNAP RING,M90 x 3mm Thk, Internal
|
NH
|
| 12. |
84074234
|
[1] |
BEARING, ROLLER, CYL,60mm ID x 110mm OD x 28mm W
|
ZED
Superseded by part number: 428162
|
| 13. |
552118
|
[1] |
SEALING RING
|
ZED
Superseded by part number: 80552118
|
| 14. |
84074231
|
[1] |
ADJUSTING PLATE
|
ZED
|
| 15. |
84078076
|
[1] |
BEARING HOUSING,75 mm ID x 130 mm OD x 64 mm
|
ZED
|
| 16. |
300389
|
[3] |
BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
NH
Superseded by part number: 628-12035
|
| 17. |
140046
|
[8] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 18. |
84078663
|
[1] |
SHAFT
|
ZED
Superseded by part number: 48030939
|
| 19. |
84078614
|
[1] |
HYD CONNECTOR
|
ZED
|
| 20. |
84017119
|
[1] |
SET SCREW,Hex, M8 x 16mm, Cl 8.8
|
ZED
|
| 21. |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 22. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 23. |
100020
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 24. |
451743
|
[3] |
WASHER
|
ZED
Superseded by part number: 574245
|
| 25. |
210049
|
[2] |
BALL BEARING,40mm ID x 90mm OD x 23mm W
|
NH
|
| 26. |
84039374
|
[1] |
WASHER
|
ZED
|
| 27. |
84039375
|
[1] |
DRIVEN SPROCKET
|
ZED
|
| 28. |
84039373
|
[1] |
BUSHING
|
ZED
|
| 29. |
321246
|
[1] |
BOLT,Hex, M16 x 2 x 120mm, Cl 8.8
|
NH
|
| 30. |
84056457
|
[1] |
IDLER LEVER
|
ZED
|
| 31. |
84320124
|
[1] |
CHAIN,Roller, 86 Links x 31.75mm = 2730.5mm, #100
|
ZED
(49)
|
| 32. |
9839353
|
[1] |
SPACER,40.3mm ID x 52mm OD x 10mm L
|
ZED
|
| 33. |
300637
|
[1] |
SNAP RING,M75, Ext
|
ZED
|
| 34. |
84320512
|
[1] |
DRIVEN SPROCKET
|
ZED
Z= 28 Superseded by part number: 47972548
|
| 35. |
84056456
|
[1] |
SUPPORT
|
ZED
|
| 36. |
9706685
|
[5] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 37. |
84041797
|
[1] |
THREADED ROD
|
ZED
M20 x 360
|
| 38. |
84056463
|
[1] |
HINGE
|
ZED
|
| 39. |
378243
|
[1] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
Superseded by part number: 63707, 63707, 86625263
|
| 40. |
84012754
|
[1] |
O-RING,5mm Thk x 25mm ID, 70 Duro
|
ZED
|
| 41. |
442203
|
[1] |
WASHER,41mm ID x 50mm OD x 0.91mm Thk
|
ZED
|
| 42. |
84074866
|
[1] |
SHAFT
|
ZED
|
| 43. |
84057
|
[2] |
LOCK WASHER,M16
|
NH
Superseded by part number: 12034871, 12034871, 140048
|
| 44. |
43168
|
[2] |
BOLT,Hex, M16 x 40mm, Cl 8.8
|
NH
Superseded by part number: 86509867
|
| 45. |
84042491
|
[2] |
GUIDE
|
ZED
|
| 46. |
120073
|
[4] |
BOLT,Hex, M10 x 86.58mm, Cl 8.8
|
NH
Superseded by part number: 129796A1
|
| 47. |
140045
|
[8] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 48. |
100037
|
[4] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 49. |
84320517
|
[1] |
CONNECTING LINK
|
ZED
|
| 50. |
84004940
|
[1] |
SPHERICAL BEARING,20mm ID x 35mm OD x 16mm W
|
ZED
|
| 51. |
370024
|
[1] |
CIRCLIP,M20, Ext
|
NH
|
| 52. |
84037293
|
[1] |
BUSHING,26mm ID x 40mm OD x 10mm L
|
ZED
|
| 53. |
84041795
|
[1] |
WASHER,26mm ID x 82mm OD x 10mm Thk
|
ZED
|
| 54. |
84011609
|
[1] |
INSULATOR BLOCK
|
ZED
|
| 55. |
84041794
|
[1] |
SUPPORT
|
ZED
|
| 56. |
412180
|
[1] |
NUT,M20 x 2.5, Cl 8
|
ZED
Superseded by part number: 9672396
|
| 57. |
9706694
|
[1] |
NUT,Hex, M20, Cl 8
|
ZED
|
| 59. |
370008
|
[1] |
SNAP RING,M50, Ext
|
NH
Superseded by part number: 8603209
|
| 58. |
300388
|
[5] |
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8
|
NH
|
| 60. |
84100489
|
[1] |
DISC
|
ZED
|
