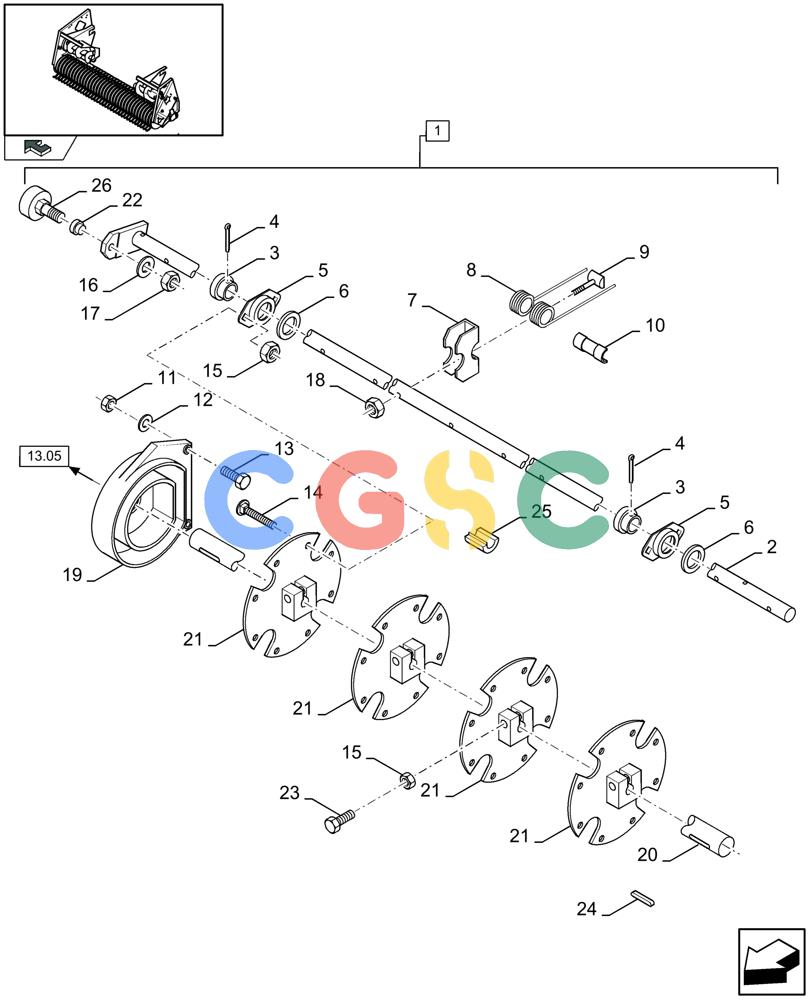

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (13.07[01]) - PICK-UP, REEL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
615 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84086544
|
[1] |
REEL
|
ZED
(2 to 26)
|
| 1. |
84086547
|
[1] |
REEL
|
ZED
(2 to 26)
|
| 2. |
84607751
|
[4] |
TINE BAR
|
ZED
|
| 2. |
84607737
|
[4] |
TINE BAR
|
ZED
|
| 3. |
80054770
|
[1] |
BALL BEARING
|
ZED
Superseded by part number: 84330047
|
| 4. |
136521
|
[1] |
COTTER PIN,5.7mm OD x 44.45mm L
|
NH
|
| 5. |
54695
|
[1] |
BEARING HOUSING
|
NH
|
| 6. |
442245
|
[1] |
WASHER,35mm ID x 51.5mm OD x 0.8mm Thk
|
ZED
|
| 7. |
86627654
|
[1] |
SPACER
|
NH
Superseded by part number: 84427925
|
| 8. |
84074264
|
[1] |
REEL TINE,Coiled, 2 Prongs, 145mm L
|
ZED
,, Serial Range: -C895
|
| 8. |
84473346
|
[1] |
TINE
|
PLO
,, Start Serial: D896
|
| 9. |
535866
|
[1] |
SCREW
|
GI
|
| 10. |
425870
|
[1] |
BRACKET
|
ZED
|
| 11. |
100016
|
[3] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
140045
|
[3] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 13. |
9706704
|
[3] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
| 14. |
43138
|
[1] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 15. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 16. |
446691
|
[4] |
WASHER,16mm ID x 32mm OD x 5mm Thk
|
ZED
|
| 17. |
86511416
|
[4] |
JAM NUT,Jam, 5/8"-18, G2
|
ZED
|
| 18. |
43442
|
[1] |
NUT
|
NH
Superseded by part number: 126712A1, 126712A1, 86629542
|
| 19. |
84607784
|
[1] |
CAM
|
ZED
|
| 20. |
84074176
|
[1] |
SHAFT
|
ZED
|
| 20. |
84078727
|
[1] |
SHAFT
|
ZED
|
| 21. |
84807177
|
[1] |
DISC
|
ZED
|
| 22. |
84058012
|
[4] |
BUSHING,15.88mm ID x 30mm OD x 16mm L
|
ZED
|
| 23. |
120070
|
[1] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
NH
|
| 24. |
170050
|
[4] |
KEY
|
ZED
|
| 25. |
84078001
|
[8] |
COLLAR CLAMP
|
ZED
|
| 26. |
84056924
|
[4] |
CAM FOLLOWER,Tine Shaft
|
ZED
|
