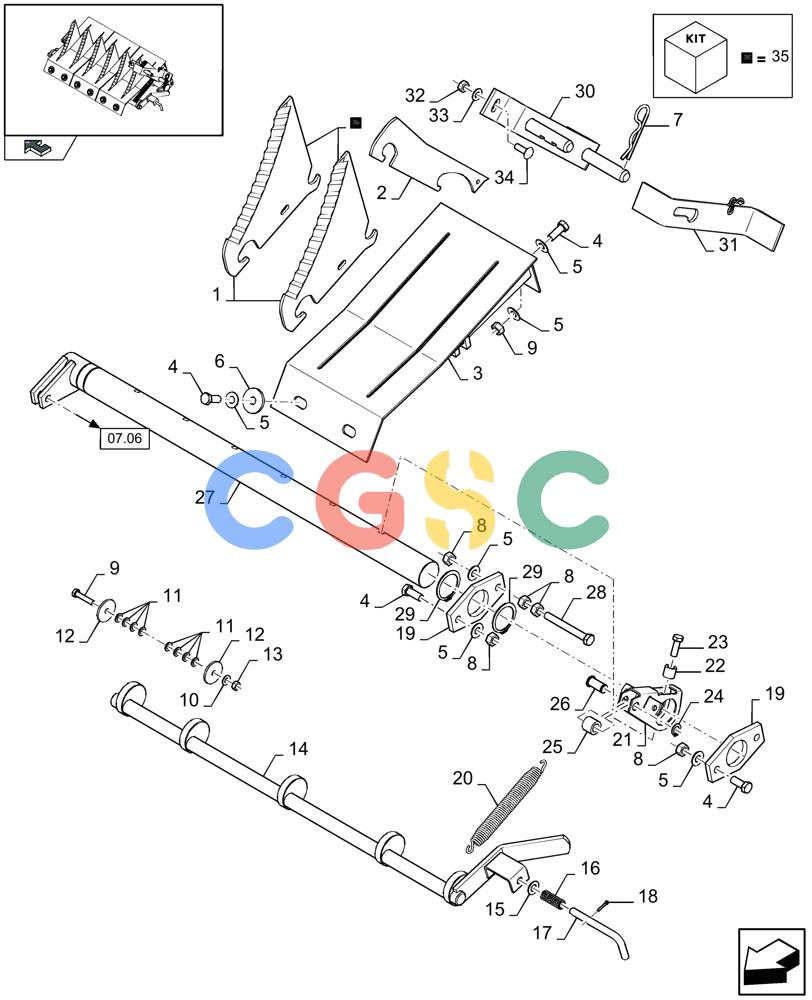

| 1. |
84056426
|
[6] |
KNIFE
|
ZED
|
| 1. |
84058221
|
[6] |
KNIFE
|
ZED
|
| 2. |
84042301
|
[6] |
COVER PLATE
|
ZED
|
| 3. |
84437837
|
[3] |
PLATE
|
ZED
|
| 4. |
9706687
|
[15] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 5. |
140046
|
[22] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 6. |
9511052
|
[6] |
WASHER,13.5mm ID x 44mm OD x 4mm Thk
|
NH
|
| 7. |
180043
|
[1] |
COTTER PIN
|
ZED
|
| 8. |
9706685
|
[12] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 9. |
43129
|
[1] |
BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8
|
NH
Superseded by part number: 16044024
|
| 10. |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 11. |
140016
|
[1] |
WASHER,M8 x 16mm OD x 1.6mm Thk
|
NH
Superseded by part number: 86624184
|
| 12. |
322
|
[2] |
WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk
|
NH
(8.7 mm)
|
| 13. |
9706690
|
[1] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 14. |
84039271
|
[1] |
SHAFT
|
ZED
|
| 15. |
140223
|
[1] |
WASHER,M13 x 25mm OD x 2mm Thk
|
ZED
13 MM
|
| 16. |
84814911
|
[1] |
SPRING
|
ZED
|
| 17. |
394549
|
[1] |
HANDLE,12mm OD
|
ZED
|
| 18. |
130003
|
[1] |
COTTER PIN,3mm OD x 30mm OAL
|
ZED
|
| 19. |
84039344
|
[2] |
COVER PLATE
|
ZED
|
| 20. |
84053769
|
[12] |
SPRING
|
ZED
|
| 21. |
84042026
|
[6] |
LEVER
|
ZED
|
| 22. |
356731
|
[6] |
BUSHING,10.5mm ID x 20mm OD x 18mm L
|
ZED
|
| 23. |
43140
|
[6] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 24. |
84041862
|
[6] |
CIRCLIP
|
ZED
|
| 25. |
84039341
|
[6] |
ROLLER
|
ZED
|
| 26. |
84043787
|
[6] |
PIN
|
ZED
, Serial Range: -C847 Superseded by part number: 87652359
|
| 26. |
84267351
|
[6] |
PIN,15mm OD x 35mm L
|
ZED
, Start Serial: D848
|
| 27. |
84041615
|
[1] |
SHAFT
|
ZED
|
| 28. |
9837937
|
[1] |
BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8
|
ZED
|
| 29. |
370008
|
[2] |
SNAP RING,M50, Ext
|
NH
Superseded by part number: 8603209
|
| 30. |
84043554
|
[1] |
SUPPORT
|
ZED
|
| 31. |
84043555
|
[1] |
LEVER
|
ZED
|
| 32. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 33. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 34. |
86512446
|
[2] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 35. |
84110679
|
[1] |
DIA KIT, HARVESTER
|
ATT
(1) Superseded by part number: 84058221
|
