神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (02-010) - ROLLER ASSY, TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
149 次

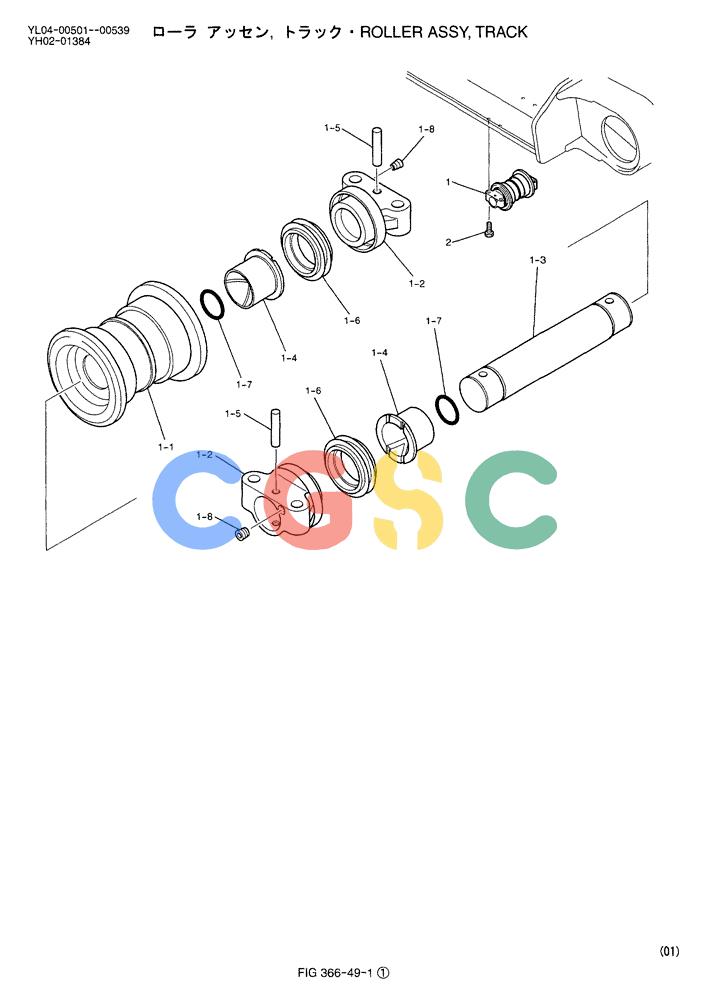

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY64D00008F1 | [1] | ROLLER ASSY, TRACK | |
| 1. | YN64D00013F1 | [12] | ROLLER | KOBASSY, LOW Superseded by part number: LQ64D00054F1 |
| 1-1. | YN64D01021P1 | [1] | ROLLER | KOBOD Ø185 x 220mm Long |
| 1-2. | YN64D01020P1 | [2] | COLLAR | KOB Superseded by part number: YN64D01041P1 |
| 1-3. | 2410N862 | [1] | SHAFT,65mm OD x 354mm L | KOBOD 65 x 354mm Long Superseded by part number: 77279670, LQ64D01028P1 |
| 1-4. | 2405P489 | [2] | BUSHING,66mm ID x 87mm OD x 64.5mm L | KOBID 65 x OD 69 x 60mm Long |
| 1-5. | 2419T7353 | [2] | PIN,16mm OD x 83mm L | KOBOD 16 x 83mm Long |
| 1-6. | 2445R441F1 | [2] | SEAL,90mm ID x 114.45mm OD x 33mm Thk | KOBFloating -- ID 90 x OD 114.45 x Th 33mm |
| 1-7. | ZD11G06000 | [2] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm | KOBID 59.40 ± 0.61 x OD 65mm |
| 1-8. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 2. | 2420P1580D4 | [48] | BOLT,Hex, M18 x 1.5 x 80mm | KOBM18x1.50x80mm |
