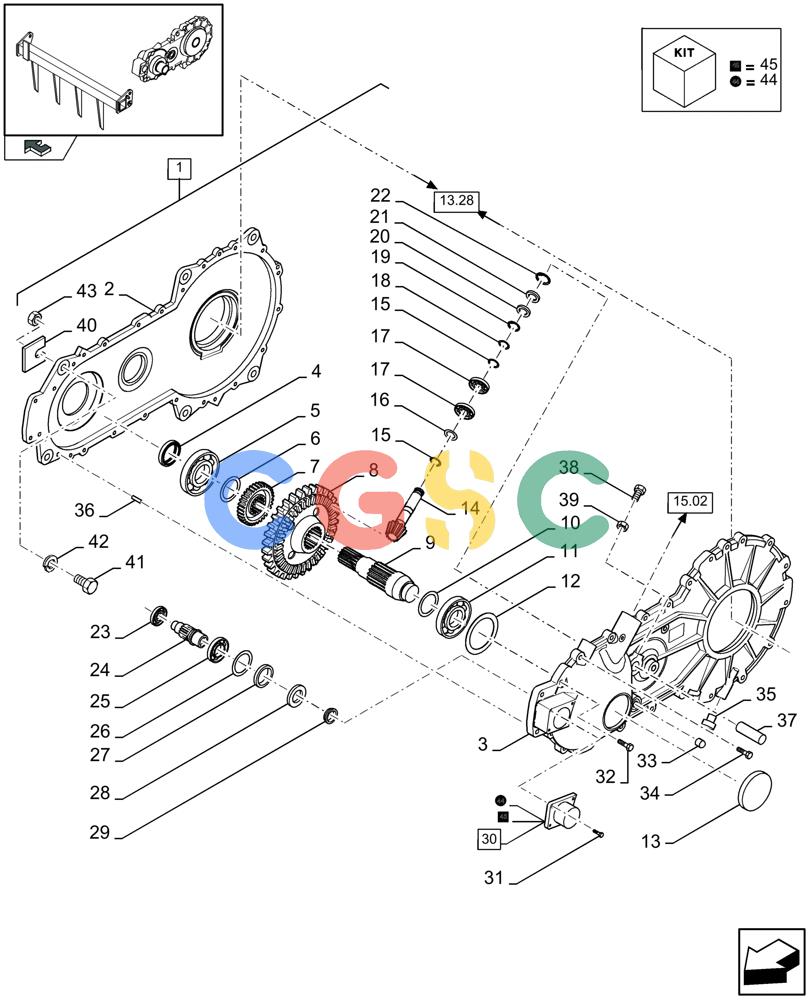

| 1. |
87470473
|
[1] |
GEARBOX
|
ZED
(2 to 36, fig.13.28)
|
| 2. |
84100709
|
[1] |
HOUSING
|
ZED
|
| 3. |
84100710
|
[1] |
HOUSING
|
ZED
|
| 4. |
84100731
|
[1] |
OIL SEAL,60mm ID x 90mm OD x 8mm Thk
|
ZED
|
| 5. |
210051
|
[1] |
BALL BEARING,60 mm ID x 130 mm OD x 31 mm
|
ZED
Superseded by part number: 26642990
|
| 6. |
84100734
|
[1] |
SHIM KIT
|
ZED
|
| 7. |
84100730
|
[1] |
GEAR
|
ZED
|
| 8. |
84100718
|
[1] |
GEAR
|
ZED
|
| 9. |
84100732
|
[1] |
SHAFT
|
ZED
|
| 10. |
84100719
|
[1] |
SHIM
|
ZED
|
| 11. |
9780033
|
[1] |
BALL BEARING
|
NH
Superseded by part number: 87562562
|
| 12. |
370026
|
[1] |
SNAP RING,M100 x 3mm Thk, Internal
|
ZED
Superseded by part number: S301572
|
| 13. |
84320056
|
[1] |
CAP COVER
|
ZED
Superseded by part number: 322496850
|
| 14. |
84100723
|
[1] |
GEAR
|
ZED
|
| 15. |
84320006
|
[2] |
SET OF RINGS
|
ZED
|
| 16. |
84100746
|
[1] |
DUST CAP
|
ZED
|
| 17. |
522333
|
[2] |
TAPERED BEARING,35mm ID x 62mm OD x 16.7mm W
|
ZED
|
| 18. |
84100725
|
[1] |
SHIM,35.3mm ID x 48mm OD
|
ZED
|
| 19. |
440441
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 87016944
|
| 20. |
357923
|
[1] |
OIL SEAL,35mm ID x 62mm OD x 7mm Thk
|
ZED
|
| 21. |
84100743
|
[1] |
GUARD
|
ZED
|
| 22. |
84100726
|
[1] |
SNAP RING
|
ZED
|
| 23. |
210062
|
[1] |
BALL BEARING,20mm ID x 47mm OD x 14mm W
|
ZED
Superseded by part number: 279592
|
| 24. |
84100729
|
[1] |
GEAR
|
ZED
|
| 25. |
28042460
|
[1] |
BALL BEARING,30mm ID x 55mm OD x 13mm W
|
NH
Superseded by part number: 84263835
|
| 26. |
86536801
|
[1] |
SNAP RING,M55, Int
|
NH
|
| 27. |
84100721
|
[1] |
OIL SEAL,30mm ID x 55mm OD x 7mm Thk
|
ZED
|
| 28. |
84100745
|
[1] |
RING
|
ZED
|
| 29. |
84100750
|
[1] |
GEAR
|
ZED
|
| 30. |
87697739
|
[1] |
HYDRAULIC PUMP,3.66 CC
|
ZED
(44)
|
| 31. |
300506
|
[4] |
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
|
NH
Superseded by part number: 86977786
|
| 32. |
BER120116
|
[5] |
SCREW
|
BER
M10 x 80
|
| 33. |
84100744
|
[1] |
PLUG,Sight Glass, 1/2" Gas
|
ZED
|
| 34. |
331168
|
[2] |
BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8
|
NH
|
| 35. |
84320005
|
[2] |
PLUG,1/2" Gas
|
ZED
Superseded by part number: 322496550
|
| 36. |
84100728
|
[2] |
PIN
|
ZED
10 x 35
|
| 37. |
84074030
|
[1] |
PIN,25mm OD x 132mm L
|
ZED
|
| 38. |
43140
|
[1] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 39. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 40. |
84074026
|
[1] |
SHIM
|
ZED
THK.: 1 MM
|
| 40. |
84074027
|
[1] |
SHIM
|
ZED
THK.: 1.5 MM
|
| 40. |
84074028
|
[1] |
SHIM
|
ZED
THK.: 0.5 MM
|
| 41. |
120091
|
[6] |
SCREW,Hex, M16 x 60mm, Cl 8.8
|
NH
Superseded by part number: 323866
|
| 42. |
140048
|
[6] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 43. |
100020
|
[6] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 44. |
87649552
|
[1] |
KIT
|
ZED
|
| 45. |
87649551
|
[1] |
SEAL KIT
|
ZED
|
