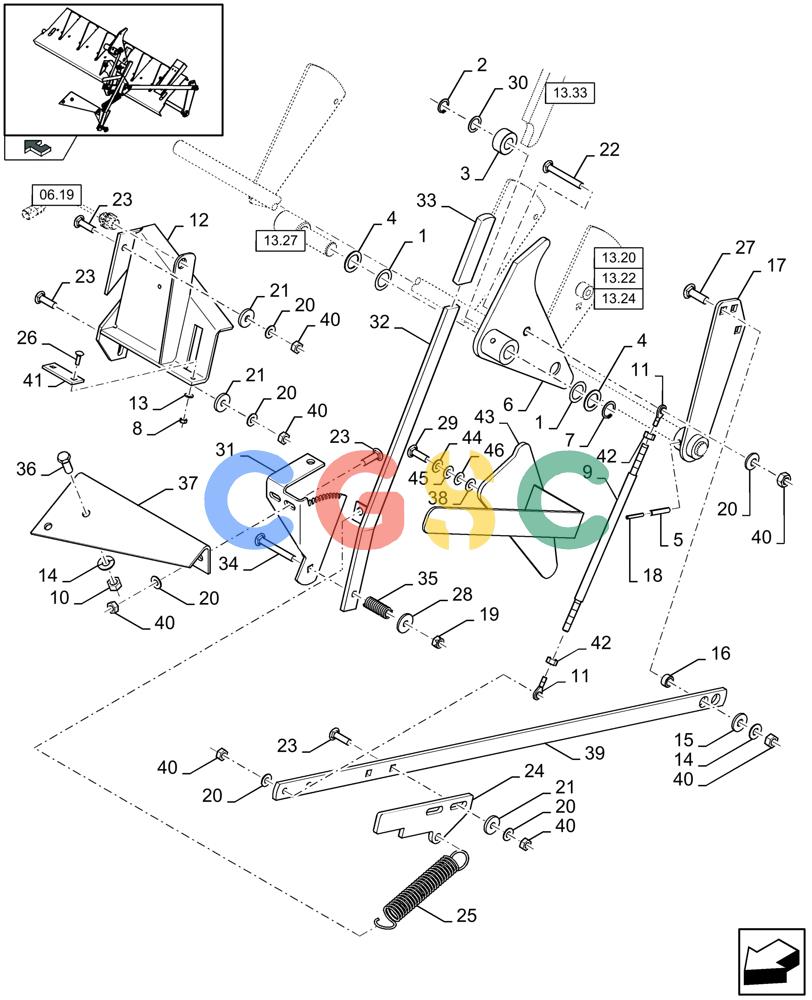

| 1. |
9838305
|
[3] |
WASHER,26mm ID x 38mm OD x 2.27mm Thk
|
ZED
|
| 2. |
370024
|
[2] |
CIRCLIP,M20, Ext
|
NH
|
| 3. |
9838377
|
[1] |
ROLLER,20mm ID x 40mm OD x 19mm L
|
ZED
|
| 4. |
140229
|
[3] |
WASHER
|
ZED
|
| 5. |
86977791
|
[1] |
LOCK PIN,M8 x 45, Slotted
|
DUB
Superseded by part number: 14607370
|
| 6. |
84814721
|
[1] |
LEVER
|
ZED
, Serial Range: -C945 Superseded by part number: 84527492
|
| 6. |
84527492
|
[1] |
LEVER
|
ZED
, Start Serial: D946
|
| 7. |
370002
|
[2] |
CIRCLIP,M25, External
|
NH
|
| 8. |
9706755
|
[3] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 9. |
84800079
|
[1] |
ROD
|
ZED
|
| 10. |
9706685
|
[1] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 11. |
84439533
|
[2] |
BALL JOINT HEAD,M10
|
ZED
|
| 12. |
84817863
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C935 Superseded by part number: 84527535
|
| 12. |
84521141
|
[1] |
SUPPORT
|
ZED
, Serial Range: -F936945 Superseded by part number: 84527535
|
| 12. |
84527535
|
[1] |
SUPPORT
|
ZED
, Start Serial: D946
|
| 12. |
84817483
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C935 Superseded by part number: 84565113
|
| 12. |
84521137
|
[1] |
SUPPORT
|
ZED
, Serial Range: -F936945 Superseded by part number: 84565113
|
| 12. |
84565113
|
[1] |
SUPPORT
|
ZED
, Start Serial: D946
|
| 13. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 14. |
140046
|
[3] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 15. |
9839232
|
[1] |
WASHER,13mm ID x 32mm OD x 4mm Thk
|
ZED
|
| 16. |
9839233
|
[1] |
SPACER
|
ZED
|
| 17. |
84074735
|
[1] |
ARM
|
ZED
|
| 18. |
86977792
|
[1] |
SLOTTED PIN,5mm OD x 40mm L, Slotted
|
ZED
|
| 19. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 20. |
140045
|
[8] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
, Serial Range: -C935
|
| 21. |
9839231
|
[4] |
WASHER,11mm ID x 32mm OD x 5mm Thk
|
ZED
|
| 22. |
84334564
|
[1] |
HEX SOC SCREW,FLAT, M10 x 40mm, Cl 12.9
|
ZED
|
| 23. |
412183
|
[7] |
CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8
|
DUB
Superseded by part number: 9833222
|
| 24. |
84817865
|
[1] |
STOP
|
ZED
|
| 25. |
84021175
|
[1] |
SPRING
|
ZED
|
| 26. |
9706703
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 27. |
328754
|
[1] |
CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 28. |
140042
|
[1] |
WASHER,11mm ID x 34mm OD x 3mm Thk
|
GI
|
| 29. |
374893
|
[1] |
CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 55mm, Cl 8.8
|
ZED
, Serial Range: -C935 Superseded by part number: 350459
|
| 29. |
350459
|
[1] |
CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8
|
ZED
, Start Serial: D936
|
| 30. |
443434
|
[1] |
LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk
|
ZED
|
| 31. |
84058200
|
[1] |
SECTOR
|
ZED
TOOTHED SECTOR, Serial Range: -C945 Superseded by part number: 84485847
|
| 31. |
84485847
|
[1] |
SECTOR
|
ZED
TOOTHED SECTOR, Start Serial: D946
|
| 32. |
84058199
|
[1] |
LEVER
|
ZED
|
| 33. |
332809
|
[1] |
HANDLE GRIP
|
ZED
|
| 34. |
412189
|
[1] |
CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 80mm, Cl 8.8
|
GI
|
| 35. |
510375
|
[1] |
SPRING
|
ZED
|
| 36. |
9706687
|
[2] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 37. |
84100904
|
[1] |
SUPPORT
|
ZED
|
| 38. |
300368
|
[4] |
SPRING,10.199mm ID x 20mm OD x 1.1mm Thk
|
ZED
10 MM
|
| 39. |
84817486
|
[1] |
BRACKET
|
ZED
|
| 40. |
100016
|
[8] |
NUT,M10 x 1.5, Cl 8
|
NH
, Serial Range: -C935
|
| 41. |
84078516
|
[1] |
WEAR STRIP
|
ZED
|
| 42. |
84807411
|
[2] |
THIN NUT,Thin, M10 x 1.5, Cl 04
|
ZED
Superseded by part number: 57039
|
| 43. |
87358125
|
[1] |
LOCK
|
ZED
|
| 44. |
140017
|
[2] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
, Serial Range: -C935 Superseded by part number: 9820489
|
| 44. |
86625253
|
[4] |
WASHER,11mm ID x 24mm OD x 2mm Thk
|
FAR
, Start Serial: D936
|
| 45. |
140077
|
[1] |
WASHER
|
ZED
10 MM, THK.: 1.6 MM, Serial Range: -C935
|
| 46. |
331160
|
[3] |
LOCKING RING,10.5mm ID x 18mm OD x 0.5mm Thk
|
ZED
10 MM, THK.: 0.5 MM, Serial Range: -C935
|
