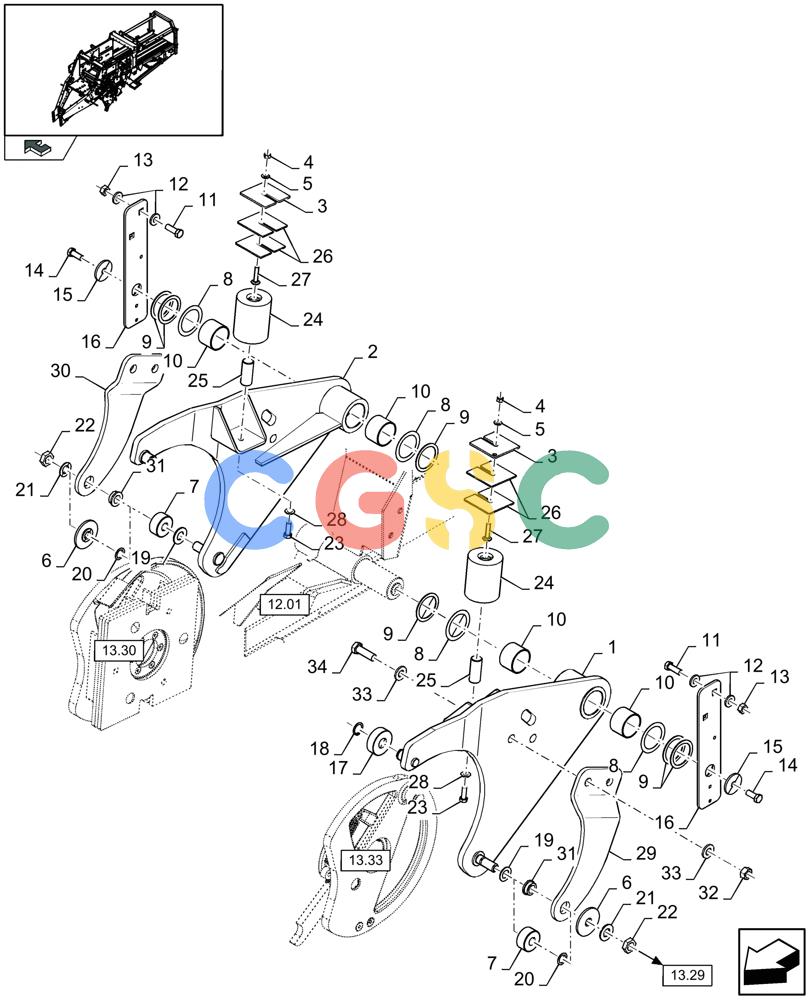

| 1. |
87706019
|
[1] |
PIVOT
|
ZED
|
| 2. |
87718543
|
[1] |
PIVOT
|
ZED
|
| 3. |
87715974
|
[2] |
SHIM,82mm OD x 4mm Thk
|
ZED
|
| 4. |
86629542
|
[2] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 5. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 6. |
9850911
|
[2] |
RING
|
ZED
, Serial Range: -C721
|
| 7. |
9839123
|
[2] |
BEARING ASSY,20mm ID x 52mm OD x 25mm W
|
ZED
|
| 8. |
9838834
|
[4] |
SHIM,57.15mm ID x 76.2mm OD x 0.8mm Thk
|
ZED
|
| 9. |
9837743
|
[1] |
KIT,56mm ID x 70.3mm OD x 2mm Thk
|
ZED
|
| 10. |
84057648
|
[4] |
BUSHING
|
ZED
|
| 11. |
300389
|
[4] |
BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
NH
Superseded by part number: 628-12035
|
| 12. |
394630
|
[8] |
WASHER,13mm ID x 28mm OD x 4mm Thk
|
NH
Superseded by part number: 86625256
|
| 13. |
9706685
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 14. |
9706687
|
[2] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 15. |
9801096
|
[2] |
WASHER,13.5mm ID x 50.8mm OD x 4.76mm Thk
|
NH
|
| 16. |
87499376
|
[2] |
PLATE
|
ZED
|
| 17. |
84015202
|
[2] |
BALL BEARING,25mm ID x 62mm OD x 20.6mm W
|
ZED
|
| 18. |
370002
|
[2] |
CIRCLIP,M25, External
|
NH
|
| 19. |
9820493
|
[2] |
WASHER,20.5mm ID x 35mm OD x 2mm Thk
|
ZED
|
| 20. |
443434
|
[2] |
LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk
|
ZED
, Serial Range: -C721
|
| 21. |
322359
|
[2] |
BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk
|
NH
|
| 22. |
320771
|
[2] |
NUT,Thin, M20 x 1.5, Cl 04
|
NH
|
| 23. |
43140
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 24. |
84011609
|
[2] |
INSULATOR BLOCK
|
ZED
|
| 25. |
84817410
|
[2] |
PIN,25.4mm OD x 60mm L
|
ZED
|
| 26. |
84817413
|
[1] |
SHIM,82mm OD x 0.5mm Thk
|
ZED
|
| 27. |
120191
|
[2] |
CARRIAGE BOLT,Short Sq Nk, M8 x 40mm, Cl 8.8, Full Thd
|
PA
Superseded by part number: 86512444
|
| 28. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 29. |
84160395
|
[1] |
BRACKET
|
ZED
, Start Serial: D722
|
| 30. |
84160393
|
[1] |
BRACKET
|
ZED
, Start Serial: D722
|
| 31. |
84152817
|
[2] |
BUSHING,20mm ID x 35mm OD x 12.5mm L
|
ZED
, Start Serial: D722
|
| 32. |
392530
|
[4] |
NUT,M16, Cl 10
|
NH
, Start Serial: D722
|
| 33. |
394631
|
[8] |
WASHER,17mm ID x 34mm OD x 4mm Thk
|
NH
, Start Serial: D722
|
| 34. |
412398
|
[4] |
BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd
|
NH
, Start Serial: D722
|
