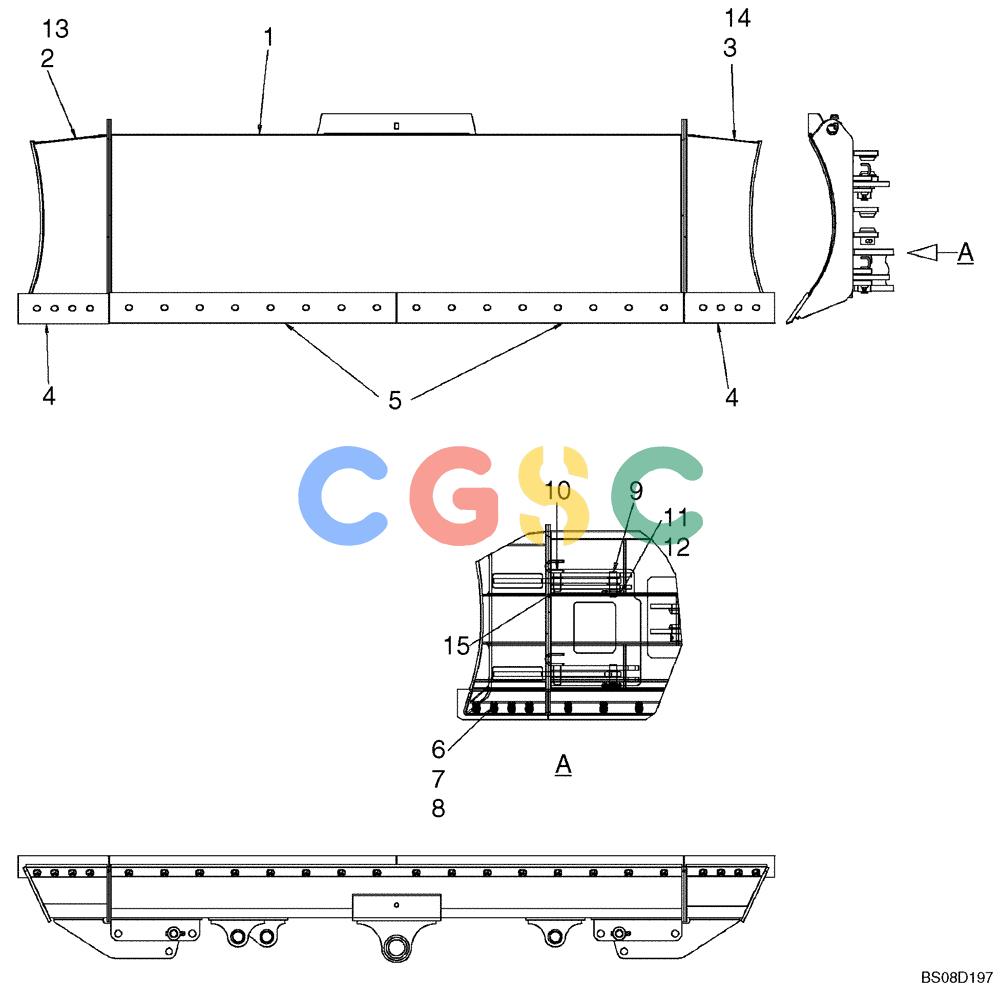

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (02-017-01[01]) - DOZER BLADE ASSEMBLY (YY63TU1001F1 & YY63TU1001F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
304 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY63TU1001F1 | [1] | BLADE | SMDozer Blade Assembly |
| . . | YY63TU1001F2 | [1] | BLADE | SMDozer Blade Assembly |
| 1. | YY51BU0004P1 | [1] | DOZER BLADE | KOBMain -- 2475mm Long (97-7/16 in) |
| 2. | YY51B00021P1 | [1] | DOZER BLADE | KOBRight Hand Wing -- (F1 Only) Superseded by part number: YY51BU0008P1 |
| 3. | YY51B00022P1 | [1] | DOZER BLADE | KOBLeft Hand Wing -- (F1 Only) Superseded by part number: YY51BU0009P1 |
| 4. | YY69B01007P1 | [2] | CUTTING EDGE | KOB388mm Long (15-1/4 in) |
| 5. | YY69B01008P1 | [2] | CUTTING EDGE | KOB1233mm Long (48-17/32 in) |
| 6. | 2420P1480D1 | [24] | SCREW,FLAT, 5/8" - 11 x 2" | KOBCut Edge Superseded by part number: 420-21032 |
| 7. | 2420P1481D1 | [24] | NUT | KOBCut Edge |
| 8. | ZW16H16000 | [24] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 9. | PA12B01027D1 | [4] | PIN | KOBHinge -- OD 30 x 108mm Long Superseded by part number: PE12B01061P2 |
| 10. | YY51BU1103P1 | [4] | PIN | KOB(for out position) -- OD 30 x 103mm Long |
| 11. | ZS18C10075 | [4] | SCREW,Hex, M10 x 75mm | KOBM10x1.50x75mm |
| 12. | ZN18C10008 | [8] | NUT | KOBM10x1.50mm |
| 13. | YY51BU0008P1 | [1] | DOZER BLADE | KOBRight Hand Wing -- (F2 Only) |
| 14. | YY51BU0009P1 | [1] | DOZER BLADE | KOBLeft Hand Wing -- (F2 Only) |
| 15. | 2419T8168 | [4] | PIN | KOBRetainer -- OD 11 x 56mm Long Superseded by part number: AW545-008-005 |
