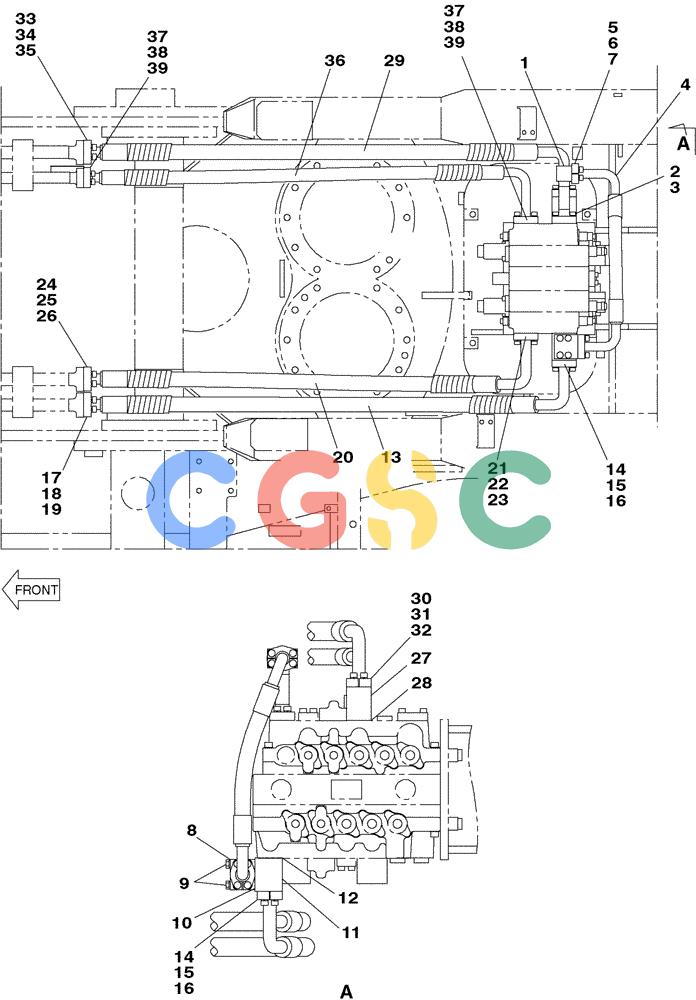

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-041-00[01]) - HYDRAULIC CIRCUIT - DIPPER AND BUCKET CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
941 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUJ0283 | [1] | HOSE ASSY. | SUM |
| 2. | 862-14040 | [4] | HEX SOC SCREW,M14 x 40mm, Cl 12.9 | CAS |
| 3. | 164450A1 | [1] | O-RING | SUM |
| 4. | KUJ0284 | [1] | HYDRAULIC HOSE,31.80 mm ID x 700.00 mm | SUM |
| 5. | 150124A1 | [4] | FLANGE | SUM |
| 8. | KUJ0285 | [1] | MANIFOLD VALVE | SUM |
| 9. | 862-14090 | [4] | HEX SOC SCREW,M14 x 90mm, Cl 12.9 | CAS Superseded by part number: 108R014Y090R |
| 11. | KUJ0281 | [1] | MANIFOLD VALVE | SUM |
| 12. | 153626A1 | [1] | O-RING | SUM Superseded by part number: 164450A1 |
| 13. | KUJ0278 | [1] | HYDRAULIC HOSE,31.80 mm ID x 2080.00 mm | SUM |
| 15. | 108R014Y150R | [4] | BOLT | SUMM14 x 150 |
| 17. | KTJ0169 | [2] | FLANGE | SUM |
| 18. | 862-16050 | [4] | HEX SOC SCREW,M16 x 50mm, Cl 12.9 | CASM16 x 50: 12.9 Superseded by part number: 9817243 |
| 19. | 168211A1 | [1] | O-RING | SUM |
| 20. | KUJ0279 | [1] | HYDRAULIC HOSE,31.80 mm ID x 1920.00 mm | SUM |
| 27. | KUJ0282 | [1] | MANIFOLD VALVE | SUM |
| 36. | KUJ0280 | [1] | HYDRAULIC HOSE,31.80 mm ID x 1950.00 mm | SUM |
