纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-039-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
253 次

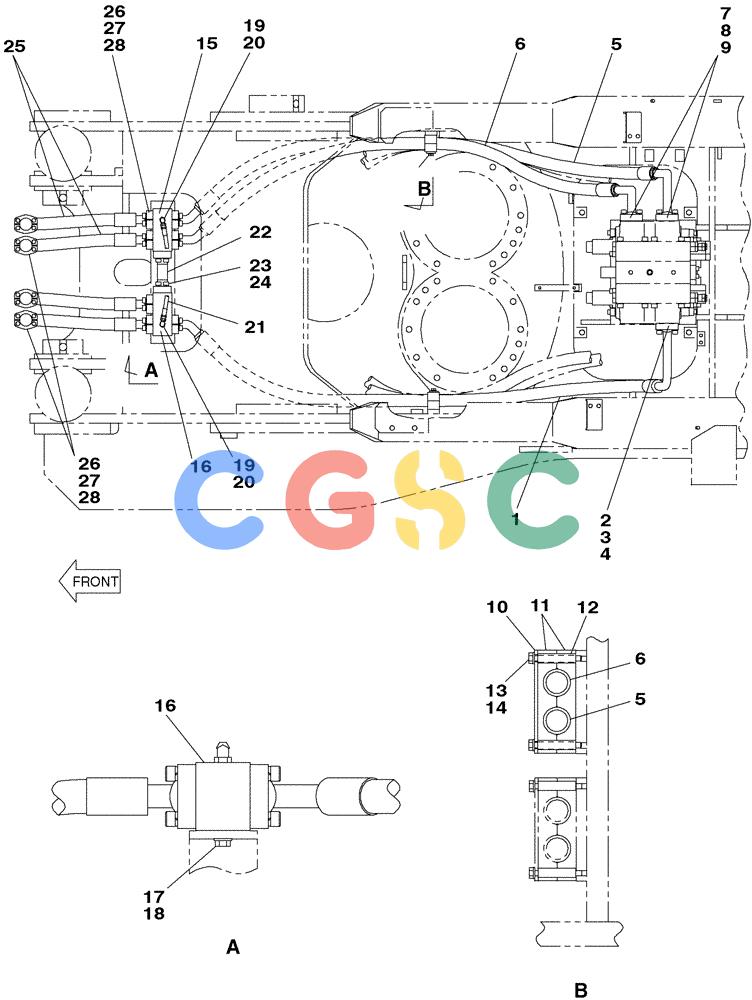

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUJ0216 | [1] | HYDRAULIC HOSE,31.80 mm ID x 2510.00 mm | SUM |
| 2. | 150124A1 | [4] | FLANGE | SUM |
| 3. | 862-14040 | [8] | HEX SOC SCREW,M14 x 40mm, Cl 12.9 | CAS |
| 4. | 164450A1 | [2] | O-RING | SUM |
| 5. | KUJ0215 | [1] | HYDRAULIC HOSE,31.80 mm ID x 2470.00 mm | SUM |
| 6. | KUJ0217 | [1] | HYDRAULIC HOSE,31.80 mm ID x 2240.00 mm | SUM |
| 10. | 152888A1 | [1] | PLATE, SPACER | SUMPLATE,SPACER |
| 11. | KUJ0213 | [2] | HOSE CLAMP | SUM |
| 12. | KUJ0036 | [2] | SPACER | SUM |
| 13. | 827-10090 | [2] | BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9 | CASM10 x 90; 10,9 Superseded by part number: 828-10090 |
| 14. | 150409A1 | [2] | WASHER | SUM10,5 x 21 x 3,2 mm |
| 15. | KUJ0071 | [1] | MANIFOLD VALVE | SUM |
| 16. | KUJ0072 | [1] | MANIFOLD VALVE | SUM |
| 17. | 102R014Y030R | [6] | BOLT | SUMM14 x 30 |
| 18. | 150418A1 | [6] | WASHER | SUM |
| 19. | 158784A1 | [2] | ELBOW | SUM |
| 20. | 154467A1 | [2] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 21. | KUJ0074 | [1] | HYDRAULIC HOSE,6.30 mm ID x 420.00 mm | SUM |
| 22. | KUJ0073 | [1] | TUBE ASSY.,34.7 mm ID x 42.7 mm OD | SUM |
| 25. | KUJ0070 | [4] | HYDRAULIC HOSE,31.80 mm ID x 1280.00 mm | SUM |
