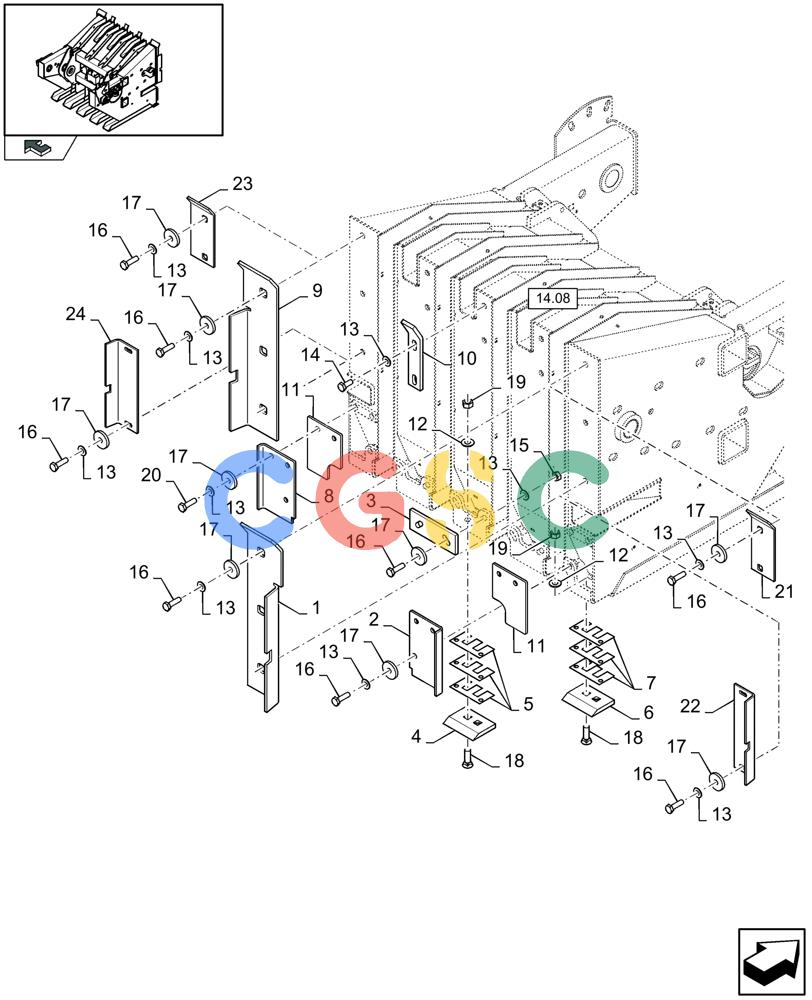

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (14.02[01]) - PLUNGER, FRONT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
794 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84801196
|
[1] |
SCRAPER BLADE
|
ZED
|
| 2. |
84801359
|
[1] |
ANTI-WRAP PLATE
|
ZED
|
| 3. |
87523579
|
[3] |
SCRAPER
|
ZED
|
| 3. |
87523571
|
[5] |
SCRAPER
|
ZED
|
| 4. |
84814869
|
[3] |
KNIFE,108mm L x 68mm W x 10mm Thk
|
ZED
|
| 4. |
84814868
|
[5] |
KNIFE,116mm L x 68mm W x 10mm Thk
|
ZED
|
| 5. |
84817042
|
[9] |
SHIM,45mm OD x 0.5mm Thk
|
ZED
|
| 6. |
84814870
|
[2] |
KNIFE,90mm L x 68mm W x 10mm Thk
|
ZED
|
| 7. |
84817044
|
[6] |
SHIM,45mm OD x 0.5mm Thk
|
CUR
|
| 8. |
84801361
|
[1] |
ANTI-WRAP PLATE
|
ZED
|
| 9. |
84801194
|
[1] |
SCRAPER BLADE
|
ZED
|
| 10. |
84441919
|
[3] |
ANTI-WRAP PLATE
|
ZED
|
| 11. |
84801357
|
[2] |
PLATE
|
ZED
|
| 12. |
140046
|
[10] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 13. |
140045
|
[24] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 14. |
43139
|
[6] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 15. |
100016
|
[6] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 16. |
9706704
|
[14] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
| 17. |
140083
|
[18] |
WASHER,11mm ID x 40mm OD x 6mm Thk
|
ZED
|
| 18. |
380420
|
[10] |
BOLT
|
NH
|
| 19. |
9706685
|
[10] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 20. |
325829
|
[4] |
BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8
|
NH
Superseded by part number: 56614
|
| 21. |
84447646
|
[1] |
ANTI-WRAP PLATE
|
ZED
|
| 22. |
84801186
|
[1] |
ANTI-WRAP PLATE
|
ZED
|
| 23. |
84819013
|
[1] |
ANTI-WRAP PLATE
|
ZED
|
| 24. |
84801556
|
[1] |
SCRAPER BLADE
|
ZED
|
