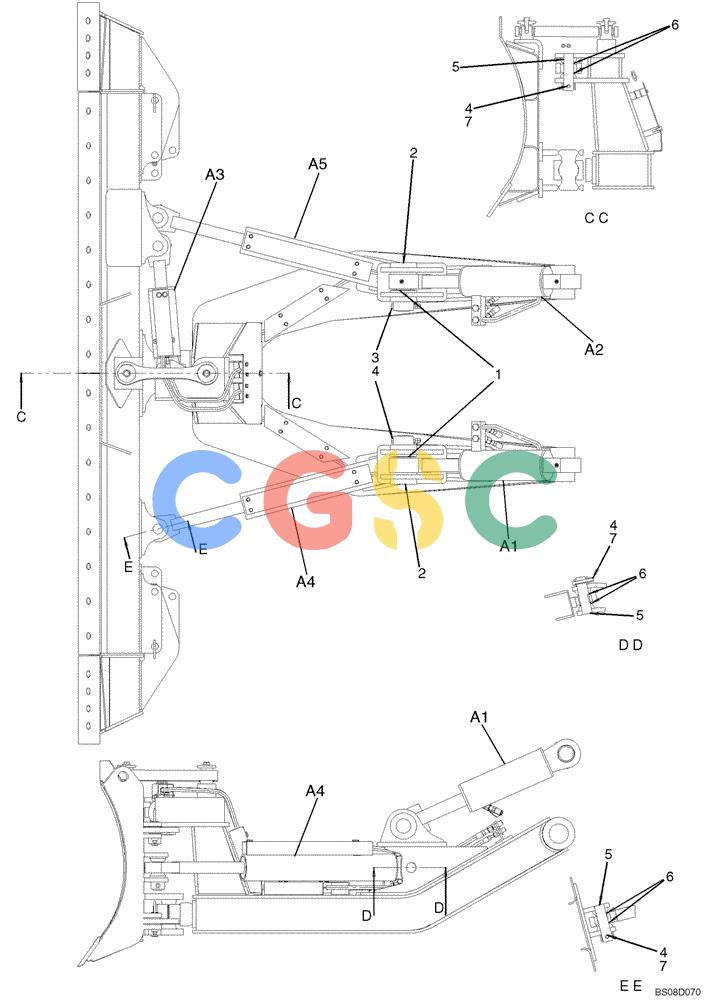

神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (02-020[00]) - CYLINDER INSTALLATION, DOZER BLADE (YY51BU0002F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
997 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY51BU1070P1 | [6] | SHIM | KOB(1.6) |
| 2. | YY51BU1008P2 | [2] | PIN,63.4mm OD x 214mm L | KOBOD 63.4 x 214mm Long |
| 3. | ZS18C12120 | [2] | SCREW,Hex, M12 x 120mm | KOBM12x1.75x120mm |
| 4. | ZN18C12010 | [16] | NUT | KOBM12x1.75mm |
| 5. | YY51BU1010P2 | [6] | PIN,44.35mm OD x 164mm L | KOBOD 44.35 x 164mm Long |
| 6. | YY51BU1100P2 | [12] | SHIM | KOB(3.5) |
| 7. | ZS18C12085 | [6] | SCREW,Hex, M12 x 85mm | KOBM12x1.75x85mm |
| A1. | YY01VU0001F1 | [1] | LIFT CYLINDER,Double Acting, 57.15mm Rod, 209.55mm Stroke | KOBAssembly, (Left Hand) -- See Figure 02-025 |
| A2. | YY01VU0002F1 | [1] | CYLINDER | SMCylinder Assembly, Lift (Right Hand) -- See Figure 02-025 |
| A3. | YY01VU0005F1 | [1] | CYLINDER,Double Acting, 50.8mm Rod, 127mm Stroke | KOBAssembly, Tilt -- See Figure 02-023 |
| A4. | YY01VU0003F1 | [1] | CYLINDER,Double Acting, 50.8mm Rod, 552.45mm Stroke | KOBCylinder Assembly, Angle (Left Hand) -- See Figure 02-024 |
| A5. | YY01VU0004F1 | [1] | CYLINDER | SMCylinder Assembly, Angle (Right Hand) -- See Figure 02-024 |
