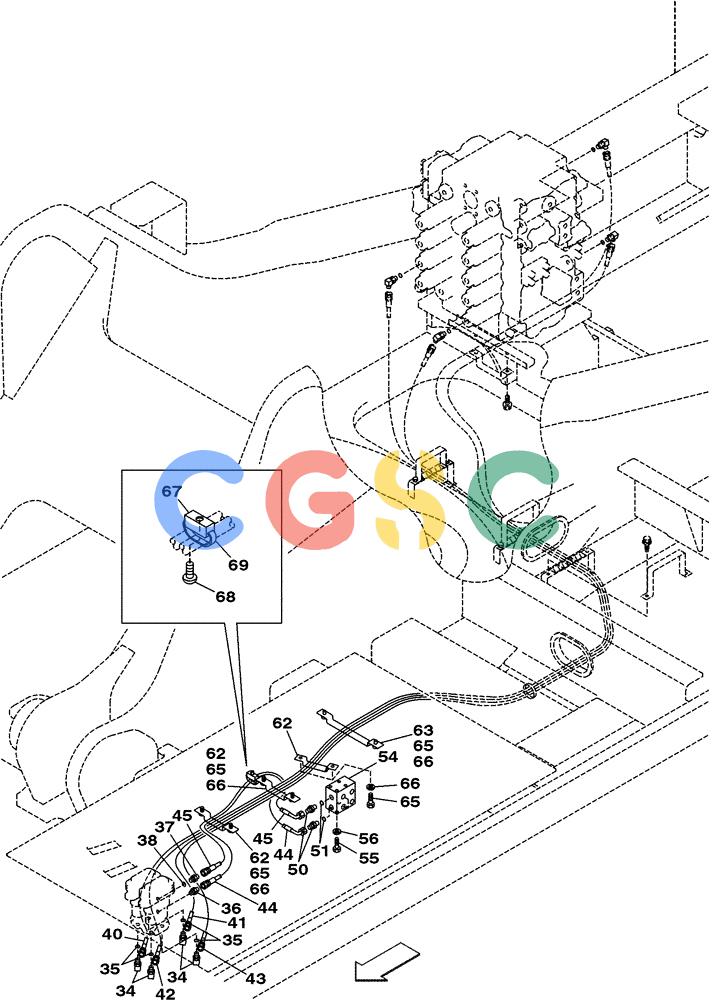

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-047-00[01]) - HYDRAULIC CIRCUIT - PILOT CONTROL LINES WITHOUT LOAD HOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
366 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 34. | 150913A1 | [4] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 35. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 36. | 161841A1 | [1] | HYD CONNECTOR | SUM |
| 37. | 152127A1 | [1] | HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT | SUM |
| 40. | 164941A1 | [1] | HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm | SUM |
| 41. | MPJ5370 | [1] | HOSE | SUM |
| 44. | KAJ3524 | [1] | HYDRAULIC HOSE | SUM |
| 45. | 159019A1 | [1] | HOSE ASSY. | SUM900 mm (35-1/2 in) |
| 54. | KRJ5903 | [1] | MANIFOLD | SUM |
| 55. | 827-8100 | [4] | BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9 | CAS Superseded by part number: 86512165 |
| 56. | 153081A1 | [4] | WASHER | SUM |
| 62. | KHJ1394 | [3] | CLAMP | SUM |
| 63. | KHJ1393 | [1] | CLAMP | SUM |
| 65. | 627-8012 | [8] | BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd | SUM Superseded by part number: 43231 |
| 67. | 150860A1 | [1] | COLLAR | SUM |
| 68. | 840-168 | [1] | SCREW,Pan, M6 x 1 x 8mm, Cl 4.8 | CAS |
| 69. | 150071A1 | [1] | MOUNTING CLIP | SUM |
