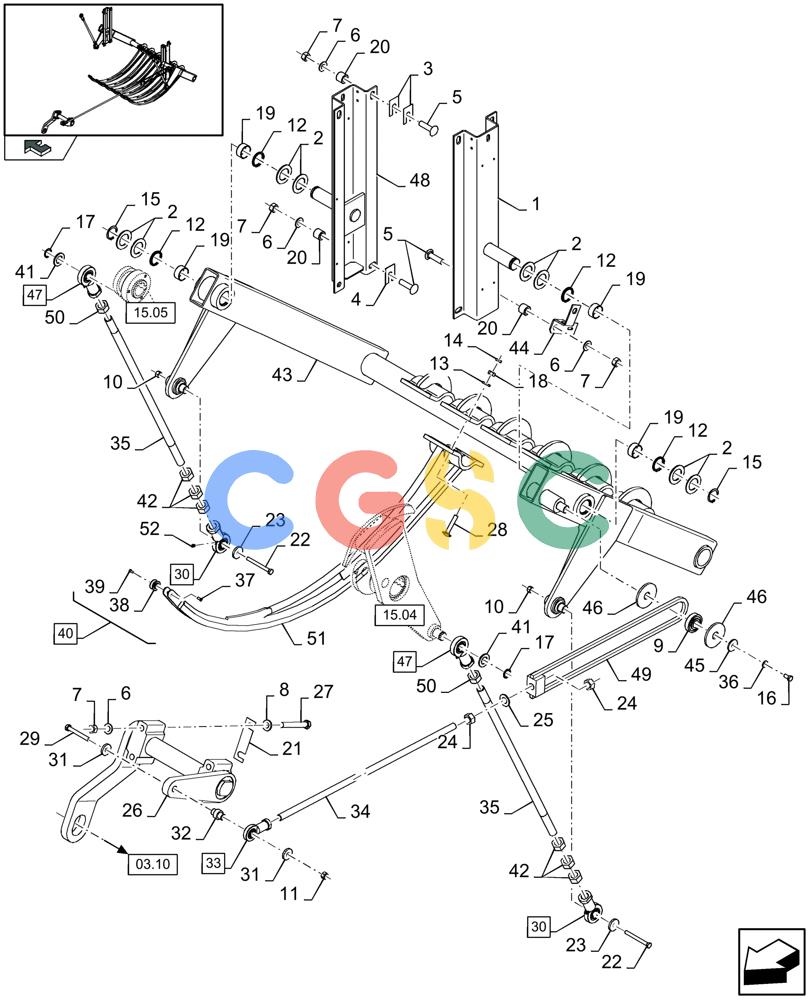

| 1. |
87644905
|
[1] |
SUPPORT
|
ZED
LH
|
| 1. |
87644026
|
[1] |
SUPPORT
|
ZED
LH
|
| 2. |
9838253
|
[1] |
WASHER,40.5mm ID x 65mm OD x 2.99mm Thk
|
ZED
|
| 3. |
9838200
|
[1] |
ADJUSTING PLATE
|
ZED
|
| 4. |
9838207
|
[1] |
ADJUSTING PLATE
|
ZED
|
| 5. |
120046
|
[8] |
CARRIAGE BOLT,M16 x 60mm, Cl 8.8
|
ZED
Superseded by part number: 87552612
|
| 6. |
140048
|
[12] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 7. |
100020
|
[12] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 8. |
394631
|
[4] |
WASHER,17mm ID x 34mm OD x 4mm Thk
|
NH
|
| 9. |
9838254
|
[1] |
ROLLER BEARING,25mm ID x 62mm OD x 15mm W
|
ZED
|
| 10. |
412141
|
[2] |
NUT,M10 x 1.5, Cl 8
|
ZED
Superseded by part number: 190003888452
|
| 11. |
100038
|
[1] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 12. |
84078068
|
[4] |
OIL SEAL,40mm ID x 50mm OD x 4.7mm Thk
|
ZED
SEALRING
|
| 13. |
394630
|
[1] |
WASHER,13mm ID x 28mm OD x 4mm Thk
|
NH
Superseded by part number: 86625256
|
| 14. |
323238
|
[1] |
THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05
|
ZED
|
| 15. |
370006
|
[2] |
SNAP RING,M40, Ext
|
NH
|
| 16. |
43138
|
[1] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 17. |
370002
|
[2] |
CIRCLIP,M25, External
|
NH
|
| 18. |
9706685
|
[1] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 19. |
429232
|
[4] |
BUSHING,40mm ID x 44mm OD x 20mm L
|
ZED
|
| 20. |
84021163
|
[8] |
BUSHING,16.5mm ID x 30mm OD x 25mm L
|
ZED
|
| 21. |
84019591
|
[1] |
ADJUSTING PLATE
|
ZED
|
| 22. |
120075
|
[2] |
BOLT,M10 x 1.5 x 106.58mm, Cl 8.8
|
NH
|
| 23. |
140083
|
[2] |
WASHER,11mm ID x 40mm OD x 6mm Thk
|
ZED
|
| 24. |
9706694
|
[2] |
NUT,Hex, M20, Cl 8
|
ZED
|
| 25. |
322359
|
[1] |
BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk
|
NH
|
| 26. |
84053023
|
[1] |
CRANK
|
ZED
|
| 26. |
84053022
|
[1] |
LEVER
|
ZED
|
| 27. |
321246
|
[4] |
BOLT,Hex, M16 x 2 x 120mm, Cl 8.8
|
NH
|
| 28. |
334263
|
[1] |
BOLT,M12 x 65mm, Cl 8.8
|
ZED
|
| 29. |
86508581
|
[1] |
BOLT,Hex, M12 x 90mm, Cl 8.8
|
NH
|
| 30. |
9838940
|
[2] |
BALL JOINT,M24 x 2, RH Thread
|
ZED
(52)
|
| 31. |
140085
|
[2] |
WASHER,13mm ID x 38mm OD x 6.35mm Thk
|
ZED
|
| 32. |
9838240
|
[1] |
BUSHING,12.5mm ID x 30mm OD x 43.6mm L
|
ZED
|
| 33. |
9838238
|
[1] |
BALL JOINT
|
ZED
(52)
|
| 34. |
84019511
|
[1] |
THREADED TIE-ROD
|
ZED
|
| 35. |
84015415
|
[2] |
ROD
|
ZED
|
| 35. |
84075941
|
[2] |
ROD
|
ZED
|
| 36. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 37. |
84597375
|
[2] |
SCREW,CSS, M5 x 16mm
|
ZED
|
| 38. |
87690629
|
[2] |
ROPE GUIDE ROLLER,31.5mm OD x 16mm L
|
ZED
|
| 39. |
84597445
|
[2] |
SCREW,FLAT, M5 x 14mm
|
ZED
|
| 40. |
87723764
|
[1] |
NEEDLE
|
ZED
(37 to 39, 51)
|
| 40. |
87723765
|
[1] |
NEEDLE
|
ZED
(37 to 39, 51)
|
| 41. |
140022
|
[2] |
WASHER,26mm ID x 44mm OD x 4mm Thk
|
ZED
|
| 42. |
300355
|
[6] |
NUT,M24 x 2, Cl 8
|
ZED
|
| 43. |
84800698
|
[1] |
SUPPORT
|
ZED
|
| 43. |
84068894
|
[1] |
YOKE
|
ZED
|
| 43. |
84441967
|
[1] |
SUPPORT
|
ZED
|
| 43. |
84441968
|
[1] |
SUPPORT
|
ZED
|
| 44. |
84400112
|
[1] |
SUPPORT
|
ZED
|
| 45. |
140219
|
[1] |
WASHER,11mm ID x 40mm OD x 4mm Thk
|
GI
|
| 46. |
84007797
|
[2] |
WASHER,26mm ID x 85mm OD x 6.35mm Thk
|
ZED
|
| 47. |
84100072
|
[2] |
BALL JOINT,M24 x 2, LH Thread
|
ZED
(52)
|
| 48. |
87644030
|
[1] |
SUPPORT
|
ZED
RH
|
| 49. |
9838208
|
[1] |
LINK BLOCK
|
ZED
|
| 50. |
84015413
|
[2] |
NUT,M24 x 2, Cl 8
|
ZED
|
| 51. |
87723761
|
[1] |
NEEDLE
|
ZED
Superseded by part number: 87723764
|
| 51. |
87723763
|
[1] |
NEEDLE
|
ZED
Superseded by part number: 87723765
|
| 52. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
