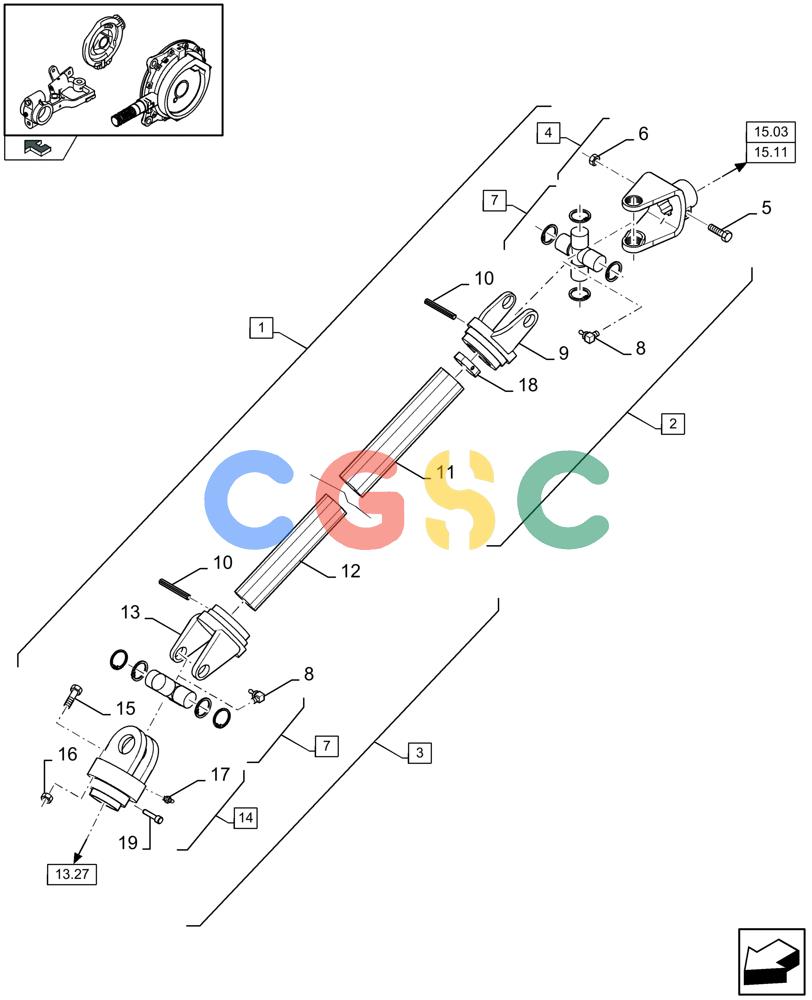

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (15.02[01]) - KNOTTER TRANSMISSION Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
990 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87355118
|
[1] |
PTO
|
ZED
(2 to 18)
|
| 2. |
87395100
|
[1] |
PTO
|
ZED
|
| 3. |
87395090
|
[1] |
PTO
|
ZED
(7, 8, 10, 12 to 15)
|
| 4. |
84429266
|
[1] |
YOKE
|
ZED
(5, 6)
|
| 5. |
350460
|
[1] |
BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8
|
ZED
Superseded by part number: 83926667
|
| 6. |
100038
|
[1] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 7. |
84429267
|
[2] |
SPIDER
|
ZED
(8) Superseded by part number: 84355315
|
| 8. |
150024
|
[2] |
LUBE NIPPLE,45 Degree, M8 x 1
|
NH
|
| 9. |
440521
|
[1] |
YOKE
|
GI
|
| 10. |
62218
|
[2] |
SLOTTED PIN,M10 x 75, Slotted
|
ZED
|
| 11. |
87395105
|
[1] |
TUBE
|
ZED
OUTER
|
| 12. |
84814066
|
[1] |
TUBE
|
ZED
INNER Superseded by part number: 84043769
|
| 13. |
440522
|
[1] |
YOKE
|
GI
|
| 14. |
87395102
|
[1] |
YOKE
|
ZED
(15, 17)
|
| 15. |
120062
|
[5] |
BOLT,Hex, M8 x 70mm, Cl 8.8
|
NH
Superseded by part number: 7120024
|
| 16. |
86629542
|
[5] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 17. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
|
| 18. |
87395107
|
[1] |
PLUG
|
ZED
|
| 19. |
84031172
|
[1] |
LOCK PIN
|
ZED
|
