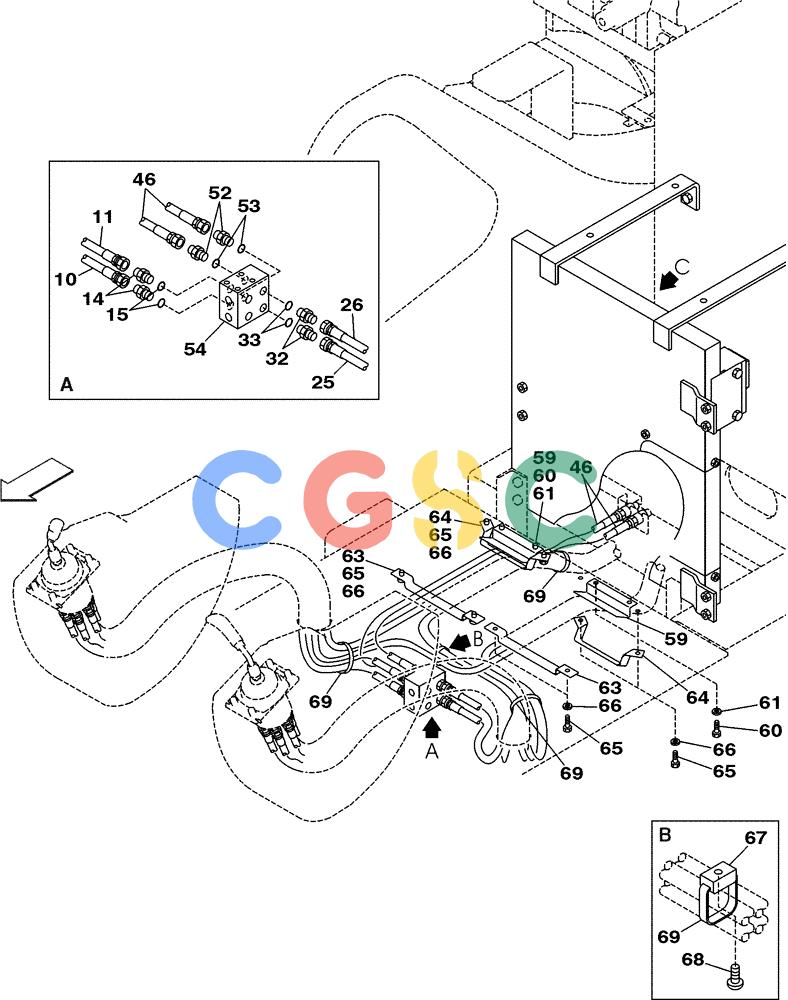

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-051-00[01]) - HYDRAULIC CIRCUIT - PILOT CONTROL LINES WITHOUT LOAD HOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
249 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10. | 159214A1 | [1] | HYDRAULIC HOSE | SUM1200 mm (47-1/4 in) |
| 11. | 159213A1 | [1] | HYDRAULIC HOSE | SUM1150 mm (45-3/8 in) |
| 14. | 152128A1 | [2] | HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT | SUM |
| 15. | 154475A1 | [1] | O-RING | SUM |
| 46. | 152751A1 | [2] | HOSE,95.00 mm ID x 1000.00 mm | SUM |
| 54. | KRJ5903 | [1] | MANIFOLD | SUM |
| 59. | KHJ1397 | [2] | SUPPORT | SUM |
| 60. | 627-8012 | [4] | BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd | SUM Superseded by part number: 43231 |
| 61. | 153081A1 | [4] | WASHER | SUM |
| 63. | KHJ1393 | [2] | CLAMP | SUM |
| 64. | KHJ1396 | [2] | CLAMP | SUM |
| 67. | 150860A1 | [1] | COLLAR | SUM |
| 68. | 840-168 | [1] | SCREW,Pan, M6 x 1 x 8mm, Cl 4.8 | CAS |
| 69. | 150071A1 | [4] | MOUNTING CLIP | SUM |
