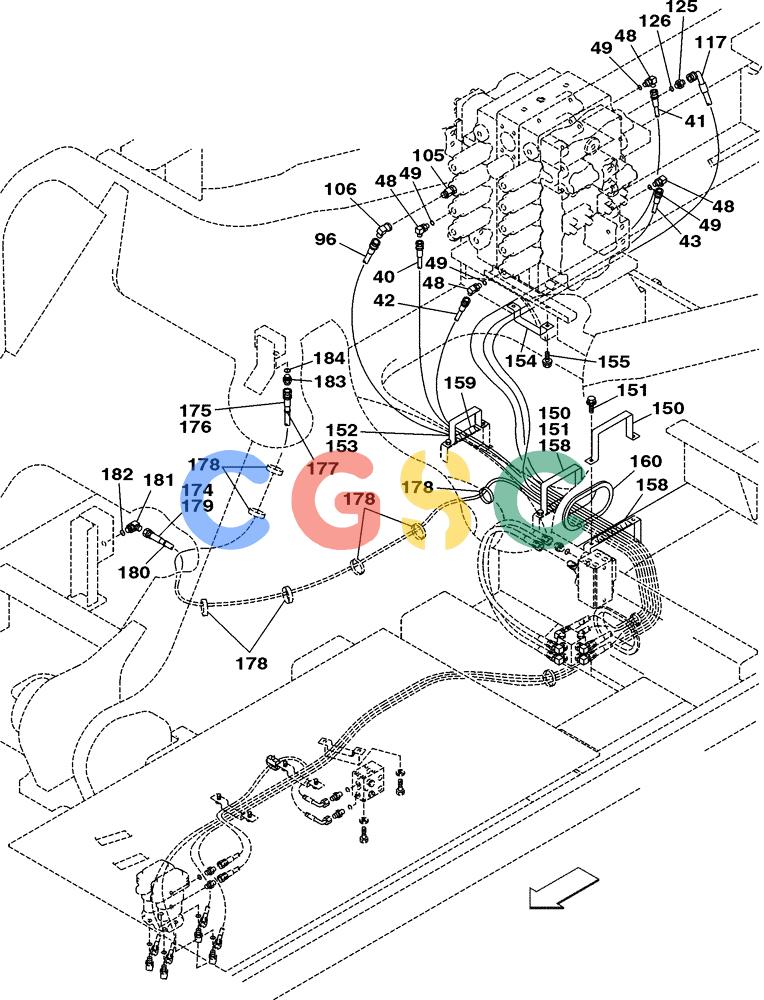

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-047-03[01]) - HYDRAULIC CIRCUIT - PILOT CONTROL LINES WITH LOAD HOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
610 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 40. | 164941A1 | [1] | HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm | SUM |
| 41. | MPJ5370 | [1] | HOSE | SUM |
| 48. | 156554A1 | [4] | ELBOW | SUM |
| 49. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 96. | 157969A1 | [1] | HOSE | SUM |
| 105. | 163422A1 | [1] | TEE | SUM |
| 106. | 153526A1 | [1] | ELBOW | SUM |
| 117. | KRJ4763 | [1] | HOSE | SUM |
| 125. | 152128A1 | [1] | HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT | SUM |
| 126. | 154475A1 | [1] | O-RING | SUM |
| 150. | KHJ1249 | [2] | CLAMP | SUM |
| 151. | 166350A1 | [4] | BOLT | SUM |
| 152. | 159040A1 | [1] | CLAMP | SUM |
| 154. | 159039A1 | [1] | CLAMP | SUM |
| 158. | KHJ1250 | [2] | SEAL, RUBBER | SUMRUBBER SEAL |
| 159. | 159028A1 | [1] | RUBBER BLOCK | SUM |
| 160. | KTA1036 | [1] | SEAL, RUBBER | SUMRUBBER SEAL |
| 174. | 157972A1 | [1] | HOSE ASSY. | SUM |
| 175. | 159063A1 | [1] | HOSE | SUM |
| 176. | KRH1445 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHH12760 |
| 177. | 150067A1 | [1] | MOUNTING CLIP | SUM150 mm (6 in) |
| 178. | 150071A1 | [7] | MOUNTING CLIP | SUM |
| 179. | KRH1434 | [1] | PLASTIC-RUBBER TUBE | SUM Superseded by part number: KHH12760 |
| 181. | 150916A1 | [1] | ELBOW,90º, 3/8" O-Ring x 3/8" | SUM |
