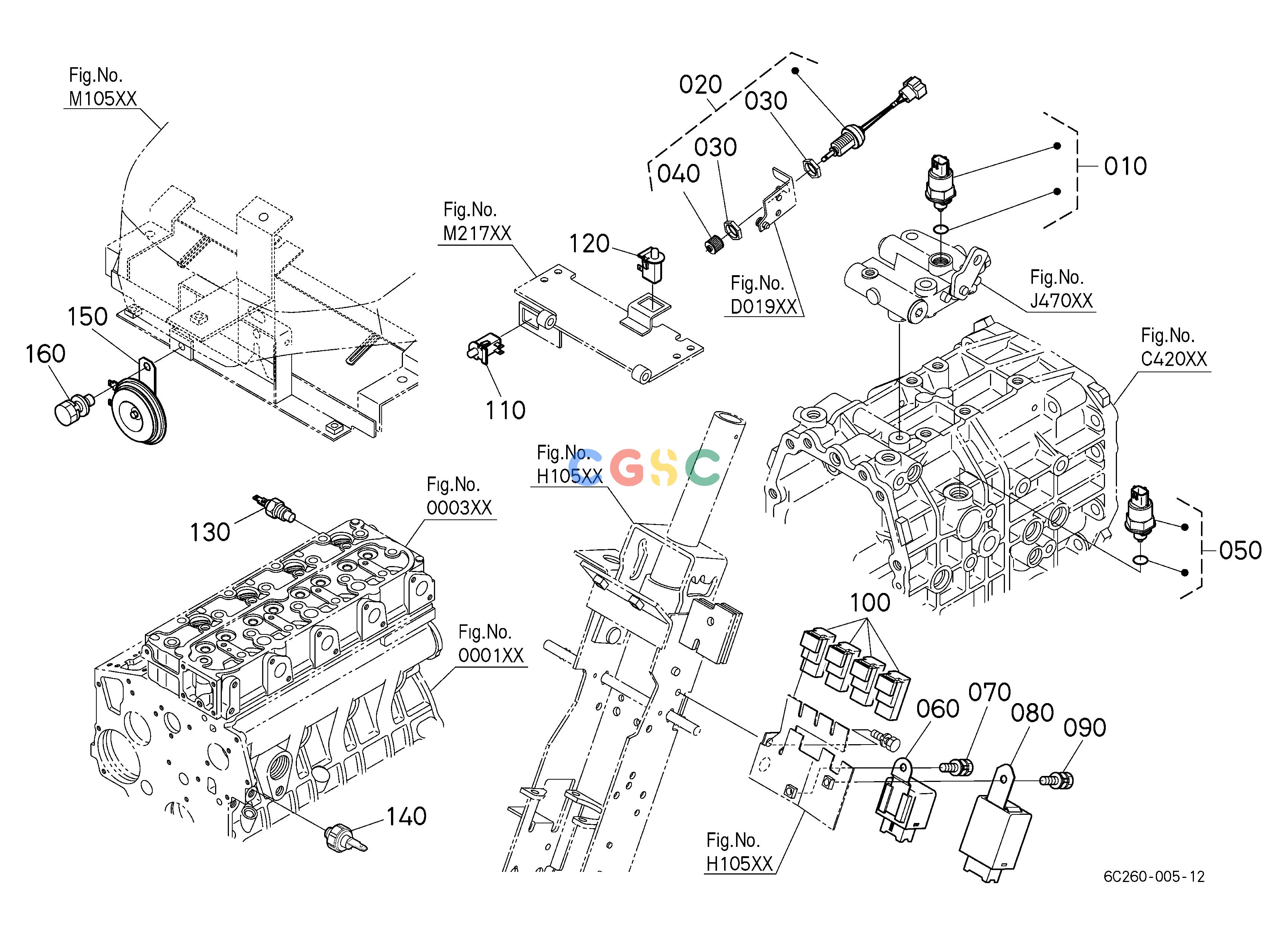

久保田零件查询B10102 SWITCH ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
600 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A70018810
|
[1] |
SWITCH,SAFETY
|
0.1144(lbs); 0.052
|
| 020. |
5232042883
|
[1] |
SWITCH,SAFETY
|
0.2640(lbs); 0.120
|
| 030. |
6711155830
|
[2] |
NUT,SAFETY SWITCH
|
0.0770(lbs); 0.035
|
| 040. |
6711155840
|
[1] |
CAP,SAFETY SWITCH
|
0.0044(lbs); 0.002
|
| 050. |
6A70018810
|
[1] |
SWITCH,SAFETY
|
0.1144(lbs); 0.052
|
| 060. |
6C20030810
|
[1] |
UNIT,FLASHER
|
0.0836(lbs); 0.038
|
| 070. |
0102550612
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 080. |
6C19055513
|
[1] |
CONTROLLER
|
0.0946(lbs); 0.043
|
| 090. |
0102550612
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 100. |
T106033720
|
[4] |
RELAY
|
0.0440(lbs); 0.020
|
| 110. |
K112262280
|
[1] |
SWITCH(SEAT)
|
0.0242(lbs); 0.011
|
| 120. |
K112262280
|
[1] |
SWITCH(SEAT)
|
0.0242(lbs); 0.011
|
| 130. |
3135132830
|
[1] |
THERMO UNIT
|
0.0440(lbs); 0.020
|
| 140. |
1A02439010
|
[1] |
SWITCH(OIL)
|
0.0770(lbs); 0.035
|
| 150. |
6E10030850
|
[1] |
HORN
|
0.4400(lbs); 0.200
|
| 160. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
