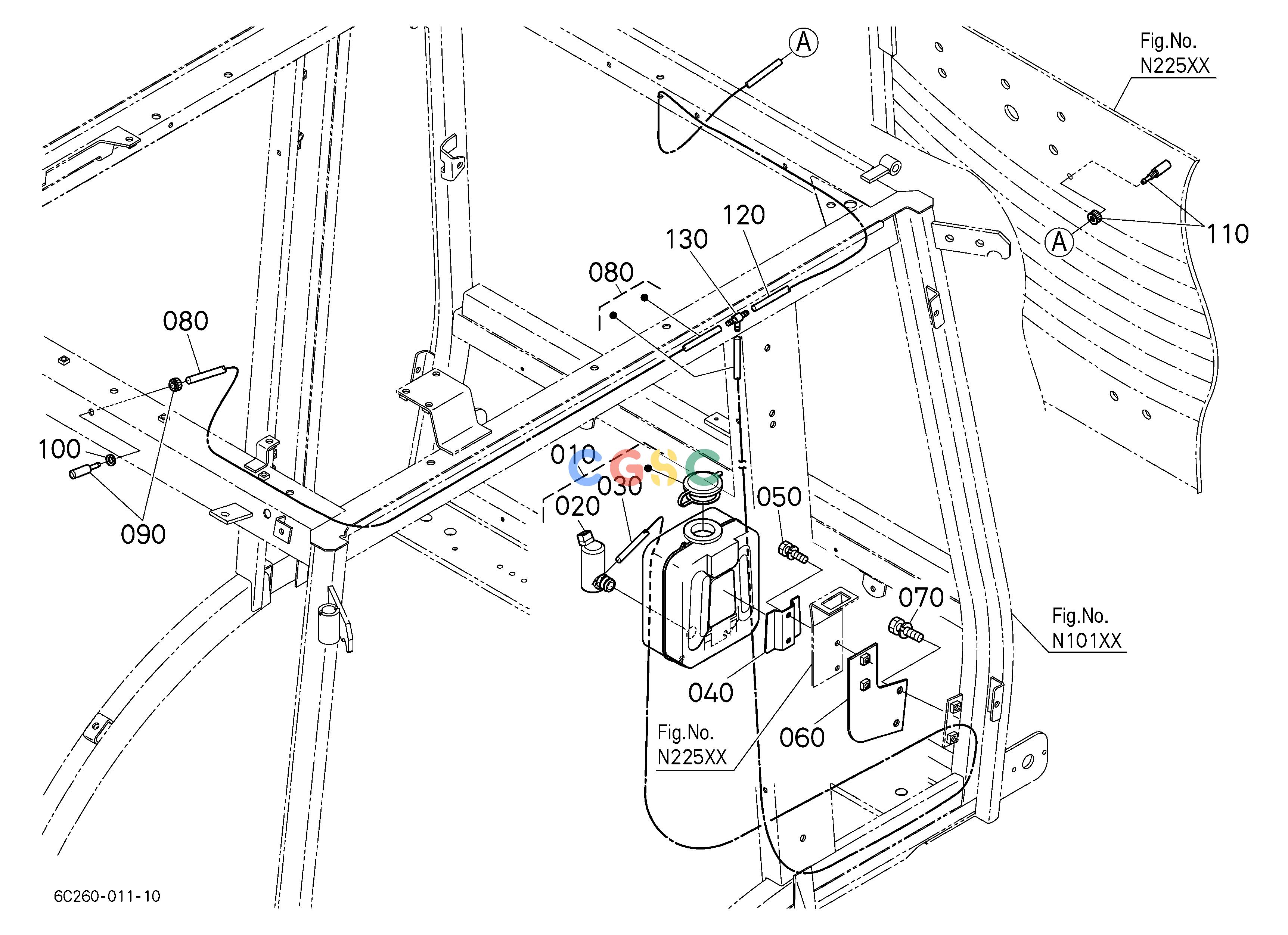

久保田零件查询B42002 WASHER TANK ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
401 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A74174230
|
[1] |
TANK,WASHER
|
0.8580(lbs); 0.390
|
| 020. |
6A67174240
|
[1] |
MOTOR,WASHER
|
0.2200(lbs); 0.100
|
| 030. |
6A74174240
|
[1] |
TANK,WASHER
|
0.4620(lbs); 0.210
|
| 040. |
3F76054060
|
[1] |
BRACKET,TANK
|
0.1430(lbs); 0.065
|
| 050. |
0102350616
|
[2] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
| 060. |
6C23074250
|
[1] |
STAY,WASHER TANK
|
0.5280(lbs); 0.240
|
| 070. |
0112350816
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 080. |
6A67174260
|
[1] |
TUBE,WASHER
|
0.1320(lbs); 0.060
|
| 090. |
3F76054180
|
[1] |
NOZZLE,WASHER
|
0.0176(lbs); 0.008
|
| 100. |
6C23074282
|
[1] |
SPACER
|
0.0022(lbs); 0.001
|
| 110. |
3F76054180
|
[1] |
NOZZLE,WASHER
|
0.0176(lbs); 0.008
|
| 120. |
6A74174282
|
[1] |
TUBE,WASHER
|
0.0660(lbs); 0.030
|
| 130. |
1510142570
|
[1] |
JOINT,PIPE
|
0.0132(lbs); 0.006
|
