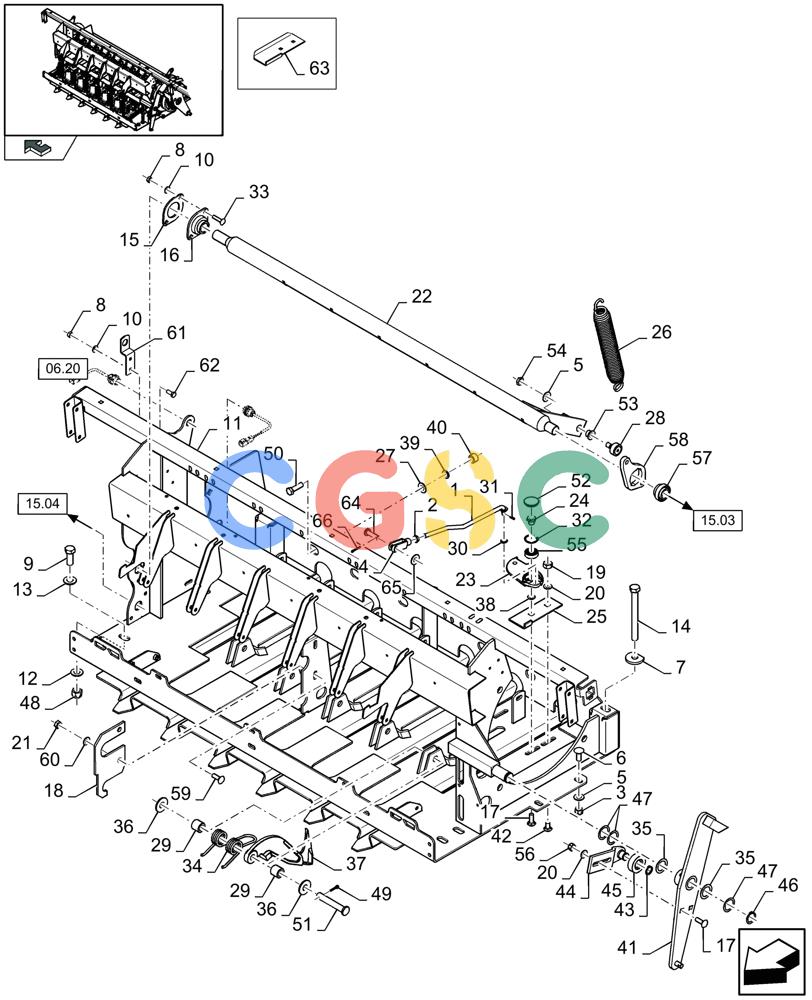

| 1. |
84818537
|
[6] |
TIE-ROD,M10 x 333.4mm
|
ZED
|
| 2. |
84807411
|
[6] |
THIN NUT,Thin, M10 x 1.5, Cl 04
|
ZED
Superseded by part number: 57039
|
| 3. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 4. |
9838355
|
[6] |
YOKE
|
ZED
|
| 5. |
140046
|
[3] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 6. |
120044
|
[2] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 7. |
333041
|
[2] |
WASHER,16.5mm ID x 49mm OD x 6mm Thk
|
ZED
|
| 8. |
9706690
|
[4] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 9. |
43168
|
[7] |
BOLT,Hex, M16 x 40mm, Cl 8.8
|
NH
Superseded by part number: 86509867
|
| 10. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 11. |
87665368
|
[1] |
FRAME
|
ZED
, Serial Range: -C835 Superseded by part number: 84267168
|
| 11. |
84267168
|
[1] |
KNOTTER FRAME
|
ZED
, Start Serial: D836
|
| 11. |
87665374
|
[1] |
FRAME
|
ZED
, Serial Range: -C835 Superseded by part number: 84267164
|
| 11. |
84267164
|
[1] |
KNOTTER FRAME
|
ZED
, Start Serial: D836
|
| 12. |
140048
|
[7] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 13. |
378246
|
[7] |
WASHER,17mm ID x 34mm OD x 3mm Thk
|
ZED
|
| 14. |
371221
|
[2] |
BOLT,Hex, M16 x 2 x 160mm, Cl 8.8
|
WIN
|
| 15. |
87665393
|
[1] |
PLATE
|
ZED
|
| 16. |
9837806
|
[1] |
FLANGED BEARING,25mm ID
|
ZED
|
| 17. |
86512446
|
[8] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 18. |
84806104
|
[1] |
SUPPORT
|
ZED
|
| 19. |
84817613
|
[6] |
NUT
|
ZED
|
| 20. |
140045
|
[8] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 21. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 22. |
87668304
|
[1] |
SHAFT
|
ZED
|
| 22. |
87668589
|
[1] |
SHAFT
|
ZED
|
| 23. |
87615918
|
[6] |
FINGER
|
ZED
|
| 24. |
84817604
|
[6] |
INSERT,M10 x 6
|
ZED
|
| 25. |
84817602
|
[6] |
PLATE
|
ZED
|
| 26. |
87730406
|
[1] |
TENSION SPRING
|
ZED
|
| 27. |
378245
|
[6] |
WASHER,13mm ID x 28.5mm OD x 2.7mm Thk
|
NH
|
| 28. |
9838366
|
[1] |
ROLLER,32mm OD x 40mm L
|
ZED
|
| 29. |
87713020
|
[10] |
SPACER
|
ZED
|
| 30. |
84818558
|
[6] |
WASHER,10.5mm ID x 18mm OD x 1.6mm Thk
|
ZED
Superseded by part number: 86625251
|
| 31. |
84807090
|
[6] |
ROLL PIN
|
ZED
|
| 32. |
300642
|
[6] |
CIRCLIP,M35 x 1.5mm W, Internal
|
NH
|
| 33. |
86512443
|
[2] |
CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd
|
ZED
|
| 34. |
84806594
|
[5] |
SPRING
|
ZED
|
| 35. |
673
|
[2] |
WASHER,29mm ID x 41mm OD x 1.52mm Thk
|
NH
|
| 36. |
51639
|
[10] |
WASHER,16.5mm ID x 41.3mm OD x 3.5mm Thk
|
ZED
|
| 37. |
84021708
|
[5] |
SUPPORT
|
ZED
|
| 38. |
300368
|
[6] |
SPRING,10.199mm ID x 20mm OD x 1.1mm Thk
|
ZED
|
| 39. |
80679
|
[6] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 40. |
9838358
|
[6] |
BUSHING,13mm ID x 22mm OD x 13mm L
|
ZED
|
| 41. |
87620496
|
[1] |
ARM
|
ZED
|
| 42. |
120041
|
[6] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 43. |
370024
|
[1] |
CIRCLIP,M20, Ext
|
NH
|
| 44. |
84000033
|
[1] |
ARM
|
ZED
|
| 45. |
9838376
|
[1] |
ROLLER,50mm OD x 17mm L
|
ZED
|
| 46. |
300629
|
[1] |
SNAP RING,M28, Ext
|
ZED
|
| 47. |
84000011
|
[3] |
WASHER,30.5mm ID x 40mm OD x 1mm Thk
|
ZED
|
| 48. |
86000441
|
[7] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 49. |
130007
|
[5] |
COTTER PIN,M4 x 25
|
NH
Superseded by part number: 83903970
|
| 50. |
86629541
|
[6] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 51. |
84078725
|
[5] |
CLEVIS PIN,16mm OD x 100mm L
|
ZED
|
| 52. |
84817615
|
[6] |
CAP COVER
|
ZED
|
| 53. |
84014757
|
[1] |
BUSHING,12mm ID x 25mm OD x 14mm L
|
ZED
|
| 54. |
399555
|
[1] |
THIN NUT,Thin, M12 x 1.5, Cl 04
|
ZED
|
| 55. |
84806280
|
[6] |
BALL BEARING,15mm ID x 35mm OD x 14.4mm W
|
ZED
|
| 56. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 57. |
84817518
|
[1] |
BALL BEARING,25mm ID x 47mm OD x 12mm W
|
ZED
|
| 58. |
87666776
|
[1] |
HOUSING
|
ZED
|
| 61. |
87686745
|
[1] |
SUPPORT
|
ZED
|
| 62. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 63. |
84800791
|
[1] |
PLATE
|
ZED
, Start Serial: D700
|
| 64. |
322901
|
[6] |
PIN,10mm OD x 30mm L
|
ZED
|
| 65. |
86511323
|
[6] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 66. |
130003
|
[6] |
COTTER PIN,3mm OD x 30mm OAL
|
ZED
|
