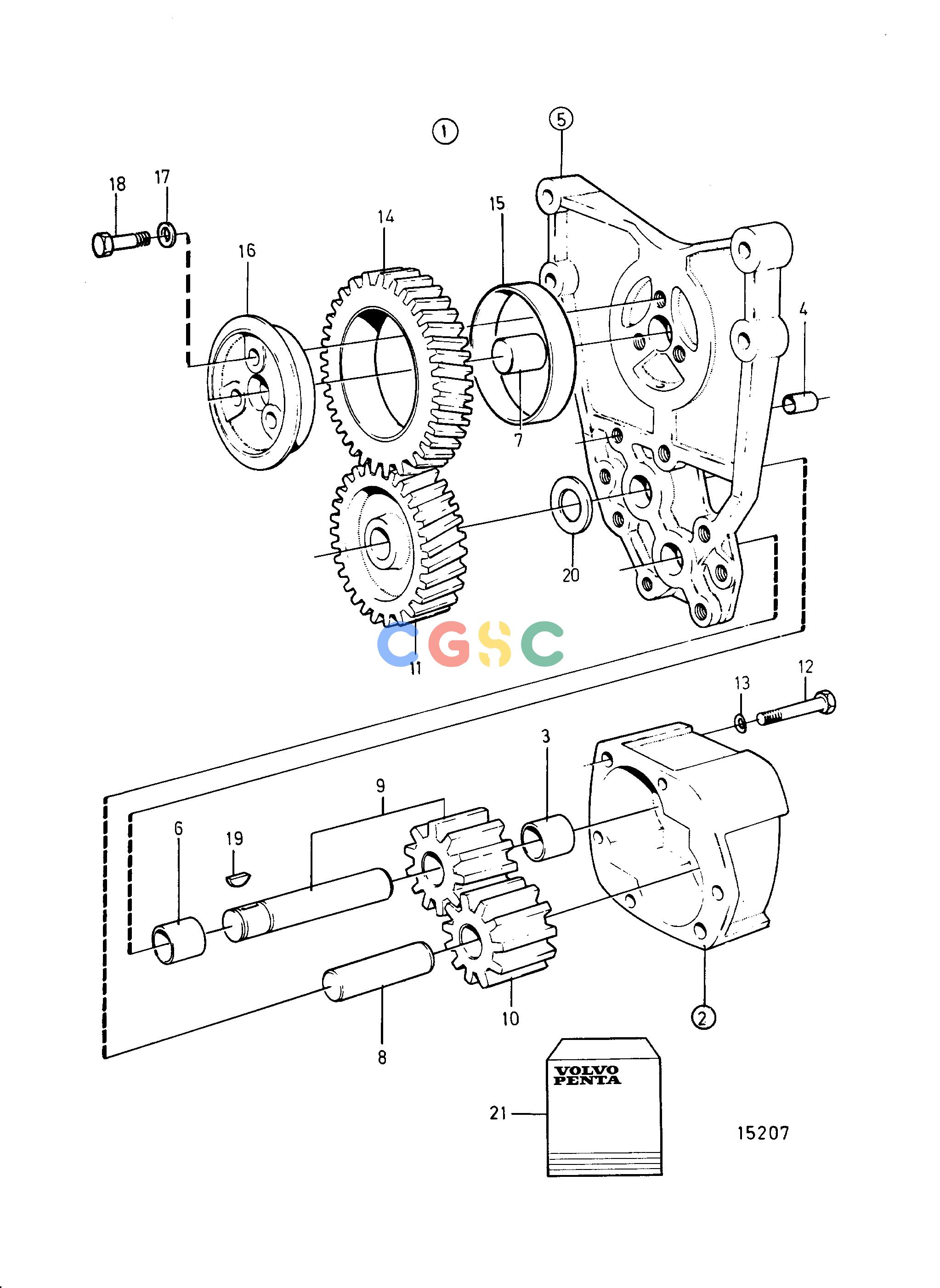

沃尔沃零件查询TMD121C; TAMD121C; TAMD121D; TAMD122C; TAMD122DLubricating SystemOil Pump, Components: 478285EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
592 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
478285
|
[1] |
Oil pump
|
|
| 2. |
|
|
|
|
| 3. |
470347
|
[2] |
Bushing
|
Included in overhaul kit.
|
| 4. |
401146
|
[2] |
Guide sleeve
|
|
| 5. |
470348
|
[1] |
Bracket
|
(470349)
|
| 6. |
470347
|
[2] |
Bushing
|
Included in overhaul kit.
|
| 7. |
191171
|
[1] |
Pin
|
|
| 8. |
|
|
|
Included in overhaul kit.
|
| 9. |
|
|
|
Included in overhaul kit.
|
| 10. |
|
|
|
Included in overhaul kit.
|
| 11. |
478232
|
[1] |
Gear
|
|
| 12. |
955531
|
[2] |
Hexagon screw
|
|
| 13. |
941907
|
[2] |
Spring washer
|
Included in overhaul kit.
|
| 14. |
422047
|
[1] |
Gear
|
|
| 15. |
422314
|
[1] |
Bushing
|
|
| 16. |
422313
|
[1] |
Bearing sleeve
|
|
| 17. |
941907
|
[3] |
Spring washer
|
|
| 18. |
940186
|
[3] |
Hexagon screw
|
|
| 21. |
276156
|
[1] |
Overhaul kit
|
See group 99
|
