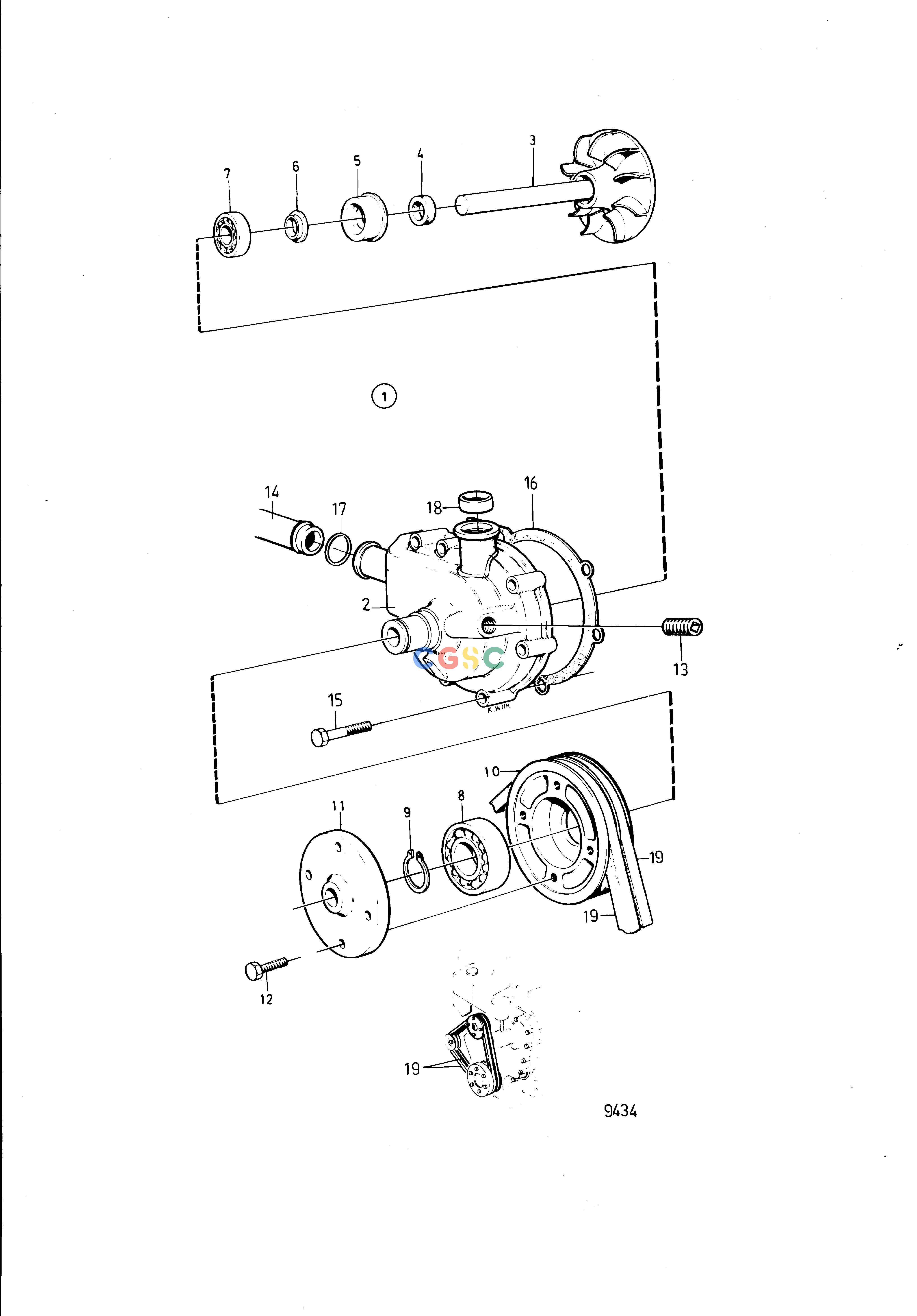

沃尔沃零件查询TMD41A; TMD41B; D41A; D41B; TAMD41A; TAMD41B; AQAD41A; AD41A; AD41B; 290A; DP-A; DP-B; DP-A1; DP-B1; SP-A; SP-A1; AD41BJ; AD41; AD41P-B; D41; TAMD41Cooling SystemCirculation Pump and Installation Components: 838699EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1019 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838699
|
[1] |
Water pump
|
SN-2204109809
|
| 1. |
|
|
|
Repl by 859127
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
421306
|
[1] |
Wear ring
|
|
| 5. |
1545283
|
[1] |
Sealing ring
|
|
| 6. |
70913
|
[1] |
Deflector
|
|
| 7. |
1660609
|
[1] |
Ball bearing
|
|
| 8. |
181538
|
[1] |
Ball bearing
|
|
| 9. |
914462
|
[1] |
Snap ring
|
|
| 10. |
1542235
|
[1] |
Pulley
|
|
| 11. |
1542236
|
[1] |
Hub
|
|
| 12. |
946173
|
[4] |
Flange screw
|
|
| 13. |
875626
|
[1] |
Repair kit
|
Repl by 275617
|
| 13. |
275617
|
[1] |
Coolant pump kit
|
Repl by 271080
|
| 13. |
271080
|
[1] |
Repair kit
|
See group 10A
|
| 14. |
838737
|
[1] |
Tube
|
Heat exchanger-circulation pump.
|
| 15. |
947760
|
[6] |
Flange screw
|
|
| 16. |
859027
|
[1] |
Gasket
|
|
| 17. |
925067
|
[1] |
O-ring
|
|
| 18. |
1542198
|
[1] |
Sealing ring
|
|
| 19. |
|
|
|
|
