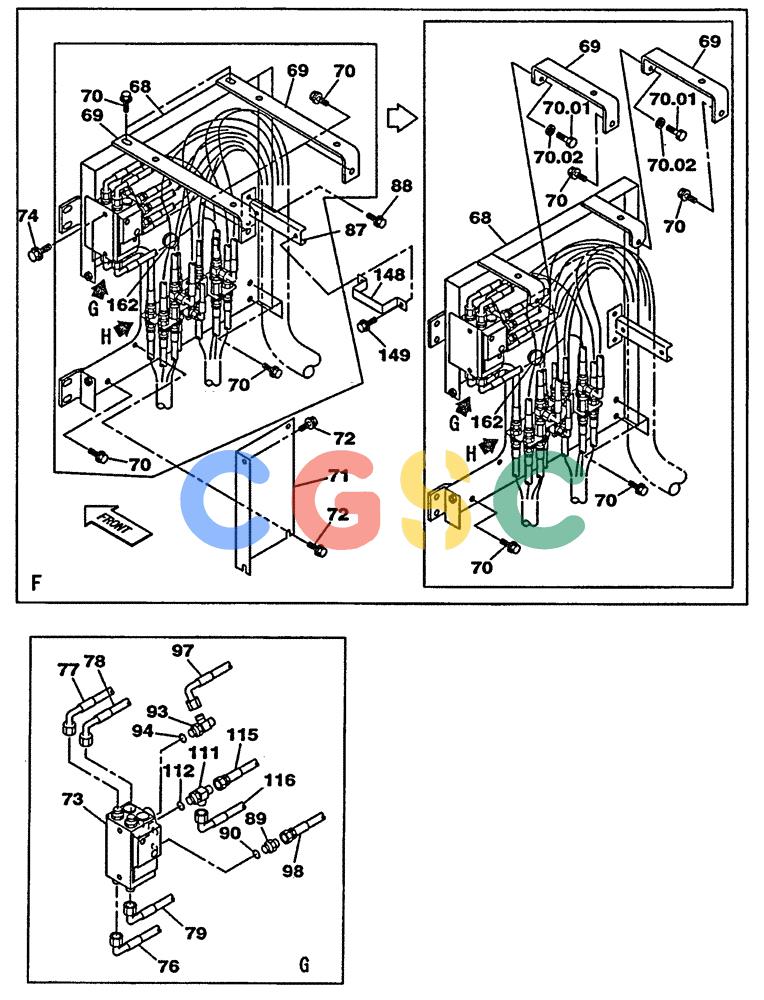

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (08-055-01[01]) - HYDRAULIC CIRCUIT - PILOT CONTROL LINES WITH VALVE LOAD HOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
413 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 68. | KUJ0320 | [1] | BRACKET | SUM |
| 69. | KUJ0370 | [2] | BRACKET | SUM Superseded by part number: KUJ0452 |
| 69. | KUJ0452 | [2] | CONSOLE | SUM |
| 70. | 166352A1 | [7] | BOLT | SUM |
| 70.01. | 627-12035 | [2] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 70.02. | 150811A1 | [2] | WASHER | SUM Superseded by part number: 86625255 |
| 71. | KTJ2108 | [1] | COVER | SUM |
| 72. | 166052A1 | [4] | BOLT | SUM Superseded by part number: 11106231 |
| 73. | KUJ0387 | [1] | VALVE, CUSHION | SUM |
| 76. | KHJ1460 | [1] | HYDRAULIC HOSE | SUM |
| 77. | KBJ2349 | [1] | HOSE | SUM |
| 78. | KRJ3932 | [1] | HOSE | SUM |
| 79. | KTJ1639 | [1] | HOSE | SUM650 mm (25-5/8 in) |
| 87. | KTJ2109 | [1] | BRACKET | SUM |
| 89. | 152128A1 | [1] | HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT | SUM |
| 90. | 154475A1 | [1] | O-RING | SUM |
| 93. | 164107A1 | [1] | TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT | SUM |
| 97. | KRJ4970 | [1] | HOSE | SUM |
| 98. | 159063A1 | [1] | HOSE | SUM |
| 115. | 159064A1 | [1] | HOSE | SUM |
| 116. | KRJ4762 | [1] | HOSE | SUM |
| 148. | 159036A1 | [1] | CLAMP | SUM |
| 149. | 166350A1 | [2] | BOLT | SUM |
| 162. | 150071A1 | [1] | MOUNTING CLIP | SUM |
