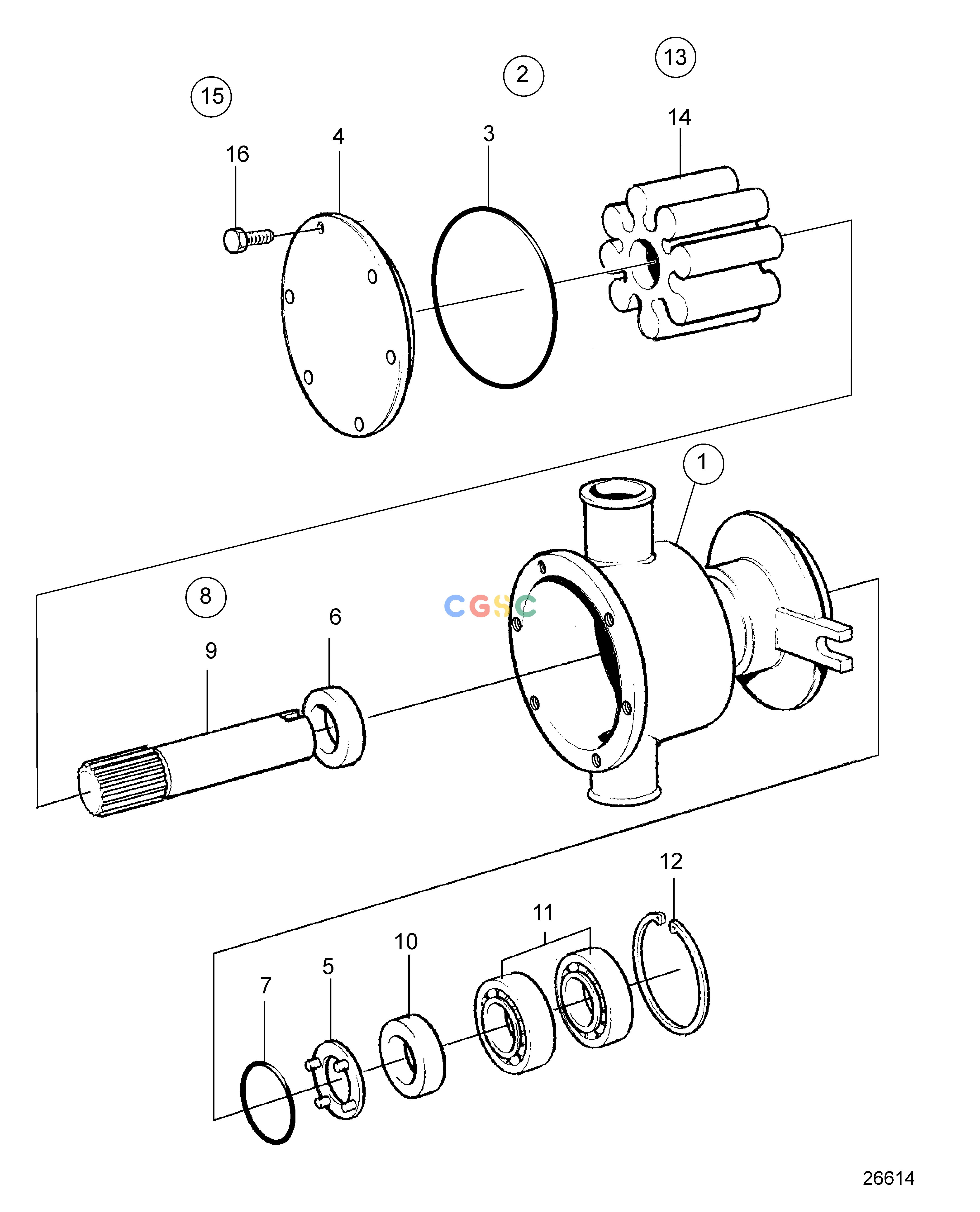

沃尔沃零件查询TMD41A; TMD41B; D41A; D41B; TAMD41A; TAMD41B; AQAD41A; AD41A; AD41B; 290A; DP-A; DP-B; DP-A1; DP-B1; SP-A; SP-A1; AD41BJ; AD41; AD41P-B; D41; TAMD41Cooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
841 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583115
|
[1] |
Sea water pump
|
|
| 2. |
21951396
|
[1] |
Wear kit
|
|
| 3. |
3581618
|
[1] |
O-ring
|
|
| 4. |
3581617
|
[1] |
Cover
|
|
| 5. |
844580
|
[1] |
Support washer
|
|
| 6. |
827247
|
[1] |
Sealing ring
|
|
| 7. |
960166
|
[1] |
O-ring
|
|
| 8. |
21951457
|
[1] |
Shaft kit
|
|
| 9. |
|
|
|
|
| 10. |
827247
|
[1] |
Sealing ring
|
|
| 11. |
11010
|
[2] |
Ball bearing
|
|
| 12. |
914523
|
[1] |
Snap ring
|
|
| 13. |
3841697
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 13. |
21422647
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 13. |
21951356
|
[1] |
Impeller kit
|
|
| 14. |
|
|
|
|
| 15. |
21951334
|
[1] |
Screw kit
|
|
| 16. |
21346724
|
[6] |
Hexagon screw
|
Use screw kit 21951334
|
