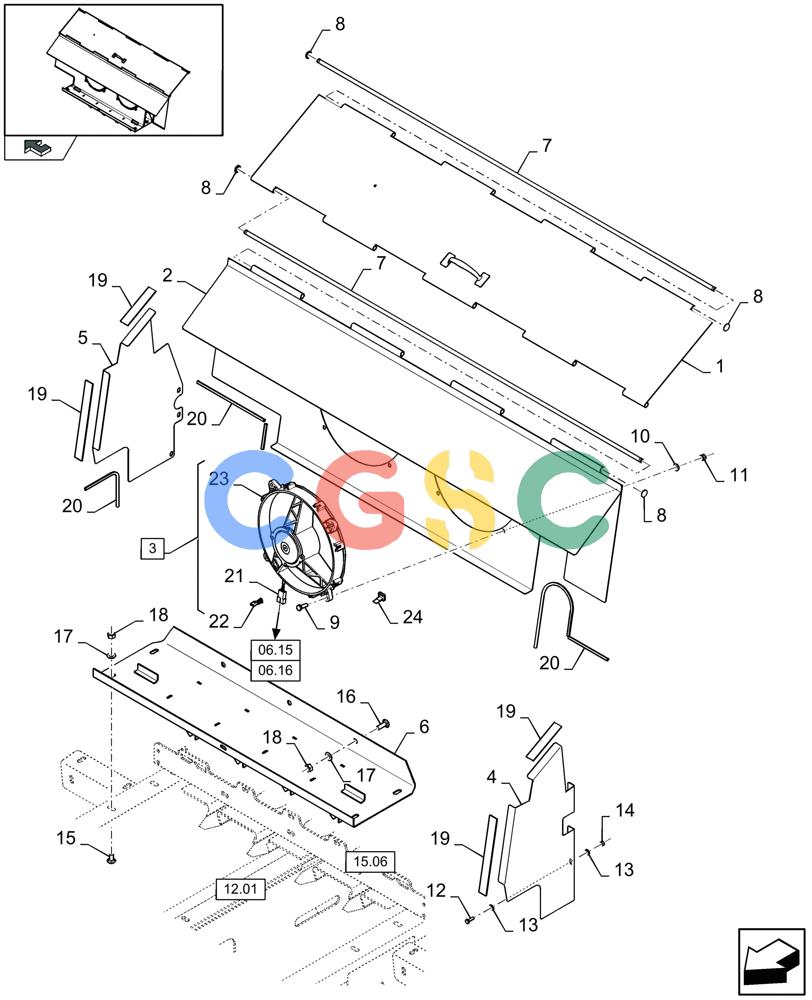

| 1. |
87478211
|
[1] |
COVER PLATE
|
ZED
|
| 1. |
87728075
|
[1] |
COVER PLATE
|
ZED
|
| 2. |
87478215
|
[1] |
MOUNTING PLATE
|
ZED
|
| 2. |
87690579
|
[1] |
MOUNTING PLATE
|
ZED
|
| 3. |
84429995
|
[2] |
FAN
|
ZED
(21 to 23), Serial Range: -C847 Superseded by part number: 84074638, 84275427, 86500036, 87695582
|
| 3. |
84275427
|
[2] |
FAN
|
ZED
(21 to 24), Start Serial: D848
|
| 4. |
87717655
|
[1] |
WINDSHIELD
|
ZED
|
| 5. |
87717656
|
[1] |
WINDSHIELD
|
ZED
|
| 6. |
87657406
|
[1] |
PLATE
|
ZED
|
| 6. |
87657400
|
[1] |
PLATE
|
ZED
|
| 7. |
87478237
|
[2] |
ARTICULATED SHAFT
|
ZED
|
| 7. |
87731220
|
[2] |
ARTICULATED SHAFT
|
ZED
|
| 8. |
431021
|
[4] |
SPECIAL WASHER
|
ZED
|
| 9. |
43127
|
[8] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 10. |
322358
|
[8] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 11. |
86629542
|
[8] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 12. |
120100
|
[2] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 13. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 14. |
9706755
|
[2] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 15. |
120041
|
[4] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 16. |
86512446
|
[3] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 17. |
140045
|
[7] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 18. |
100016
|
[7] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 19. |
401278
|
[1] |
SEALING STRIP
|
ZED
L = 680 MM Superseded by part number: 80401278
|
| 20. |
401266
|
[1] |
STRIP-GASKET
|
ZED
L = 1047 MM
|
| 21. |
334698
|
[1] |
TERMINAL CONNECTOR,Female
|
ZED
, Serial Range: -C847 Superseded by part number: 87680259
|
| 21. |
84074630
|
[1] |
CONTACT HOUSING,Male, 2 Pole
|
ZED
, Start Serial: D848
|
| 22. |
334588
|
[2] |
TERMINAL CONNECTOR,1.00 - 2.50mm
|
ZED
, Serial Range: -C847
|
| 22. |
86500035
|
[2] |
ELEC. TERMINAL PIN,Male, 0.75 - 2mm
|
GI
, Start Serial: D848 Superseded by part number: 87695607
|
| 23. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
|
| 24. |
86500166
|
[1] |
ELEC CONNECTOR
|
ZED
, Start Serial: D848 Superseded by part number: 225318C1
|
